Coxreels EZ-P-HP-325 Spring Driven Hose Reel 3/8in 25ft

Product Description

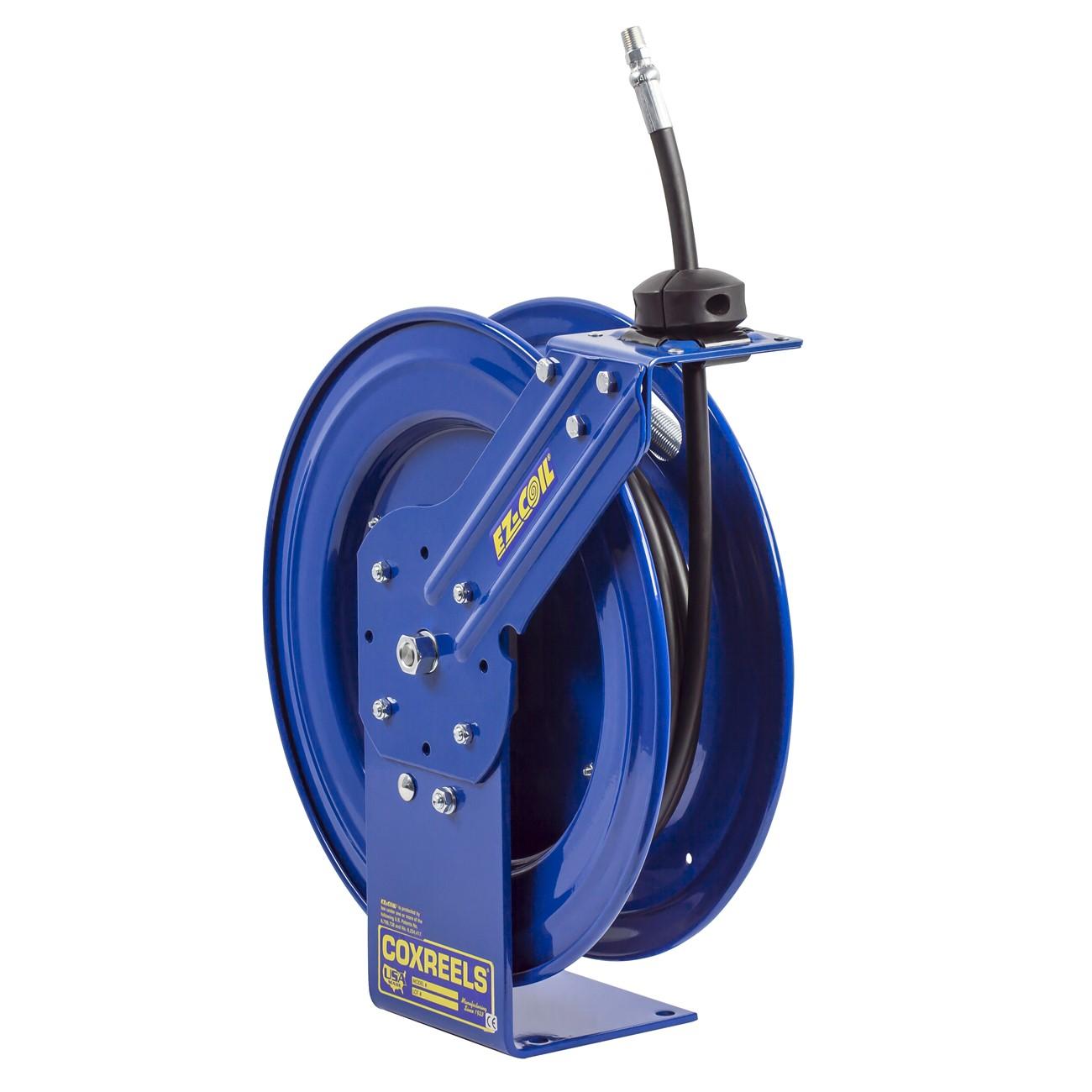

The COXREELS EZ-P-HP-325 is a spring-driven retractable hose reel built for high-pressure trade applications including HVAC, plumbing, and general industrial service. It accepts 3/8-inch ID, 11/16-inch OD hose up to 25 feet in length and retracts automatically using a lubricated, enclosed cartridge-style spring motor. The reel weighs 49 pounds and measures 17.5 inches long by 8.5 inches wide by 19.25 inches tall. Heavy-duty CNC robotically spun steel discs, a solid one-piece steel base, and a chip-resistant powder coat finish are standard. Licensed contractors and service technicians in demanding shop or mobile environments are the primary installers.

The EZ-P-HP-325 is suited for fixed and mobile service setups where consistent hose retraction and compact footprint matter. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting, making it practical for service vans, shop bays, and rooftop mechanical rooms. The 90-degree full-flow NPT swivel is machined from zinc-plated steel, allowing hose installation and seal maintenance without removing the reel from its mount. This reel fits applications where 3/8-inch ID high-pressure hose is standard equipment.

Key Features

• EZ-Coil patented spring system retracts up to 80% slower than conventional reels, reducing snap-back hazard
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without full disassembly
• CNC robotically spun and ribbed steel discs with rolled edges resist deformation and protect hose
• Solid one-piece steel base with single pedestal support post, no weld construction
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips, rust, and corrosion for long service life

Compatibility

Designed to accommodate 3/8-inch ID, 11/16-inch OD hose up to 25 feet in length with standard NPT swivel connections. Verify hose OD and working pressure rating before installation.

Installation Notes

Installation is typically performed by licensed mechanics, plumbers, or HVAC technicians familiar with high-pressure fluid systems. Depressurize and bleed down the supply line completely before connecting or disconnecting the reel. Mounting hardware must be rated for the combined weight of the reel and loaded hose; consult local building and vehicle codes for overhead or mobile mount requirements. Do not exceed the hose manufacturer's rated working pressure for the installed hose assembly.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length: 25 feet
• Spring Motor: EZ-Coil enclosed cartridge, lubricated
• Swivel: Zinc-plated steel, 90-degree full-flow NPT
• Disc Construction: CNC robotically spun, ribbed steel with rolled edges
• Base: One-piece solid steel, single pedestal, no-weld
• Finish: CPC powder coat
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 49 pounds
• UPC: 674255733428

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-HP-325
