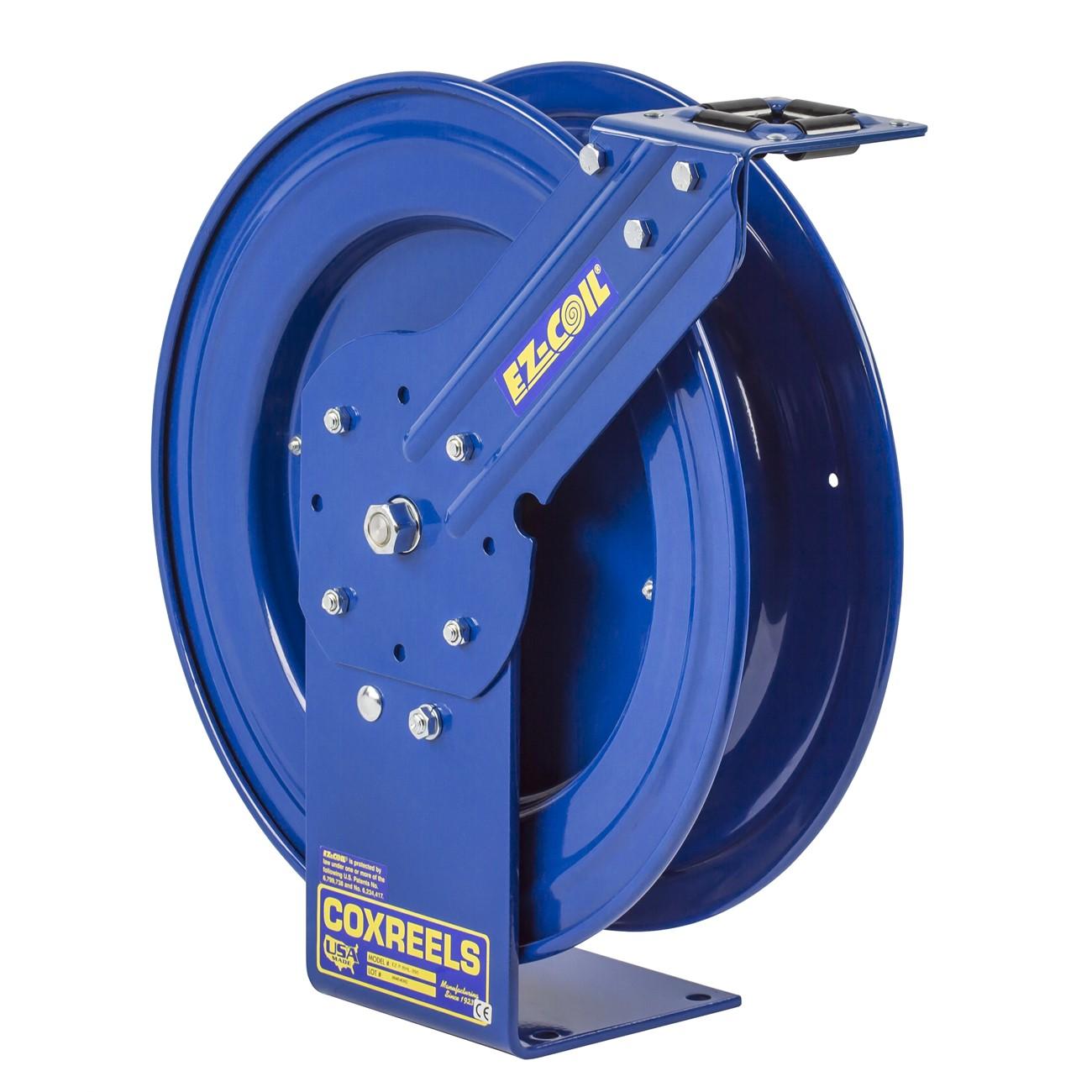

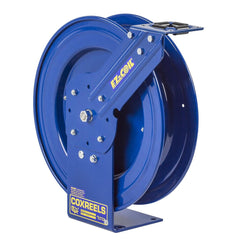

Coxreels EZ-P-BHL-350 Pure Flow Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-P-BHL-350 is a Pure Flow series hose reel built for clean-fluid applications where contamination is not acceptable. The reel features fully stainless steel air and fluid paths, a stainless steel 90-degree full-flow NPT swivel inlet, and non-toxic food-quality grease throughout, making it suitable for breathing air, potable water, and other sanitary fluid transfer. The drum discs are CNC robotically spun and ribbed with rolled edges for structural strength and hose protection. Licensed trades and safety-compliance professionals specify this reel when a contamination-free flow path is required.

The EZ-P-BHL-350 is designed for use in occupational health and safety environments, industrial facilities, fire stations, food and beverage operations, and anywhere a sanitary, non-contaminated hose reel is required. It accommodates a 3/8 inch ID hose up to 50 feet in length and is available in spring rewind, hand crank, and motorized retraction configurations. The solid one-piece steel pedestal base provides a stable, no-weld mounting platform for permanent or semi-permanent installation.

Key Features

• Stainless steel air and fluid path with stainless steel 90-degree full-flow NPT swivel inlet prevents fluid contamination
• Non-toxic food-quality grease in the swivel for potable water and breathing air compliance
• CNC robotically spun and ribbed drum discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel single-pedestal base with no-weld construction for maximum stability
• CPC powder coat finish is chip resistant and rust inhibiting for long service life
• Adjustable guide arm and permanently lubricated precision bearings included standard

Compatibility

Designed for use with 3/8 inch ID hose in spring rewind, hand crank, or motorized retraction configurations for breathing air, potable water, and other clean-fluid transfer applications requiring a non-contaminated flow path.

Installation Notes

Installation is typically performed by a licensed industrial mechanic, plumber, or safety equipment technician. Before mounting, ensure the selected surface can support the loaded reel weight and that all fluid supply lines are fully depressurized and shut off prior to making connections. Follow applicable OSHA, ANSI, and local codes for breathing air and potable water systems. Verify NPT thread engagement and swivel inlet orientation before securing the reel to its base.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Hose Length Capacity: 50 feet
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 43 pounds
• Fluid Path Material: Stainless Steel
• Swivel Type: 90-degree full-flow NPT stainless steel
• Base Construction: Single pedestal, one-piece steel, no-weld
• Finish: CPC powder coat, chip resistant, rust inhibiting

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-P-BHL-350
