Coxreels EZ-MP-450 Spring Driven Hose Reel 50 Ft

Product Description

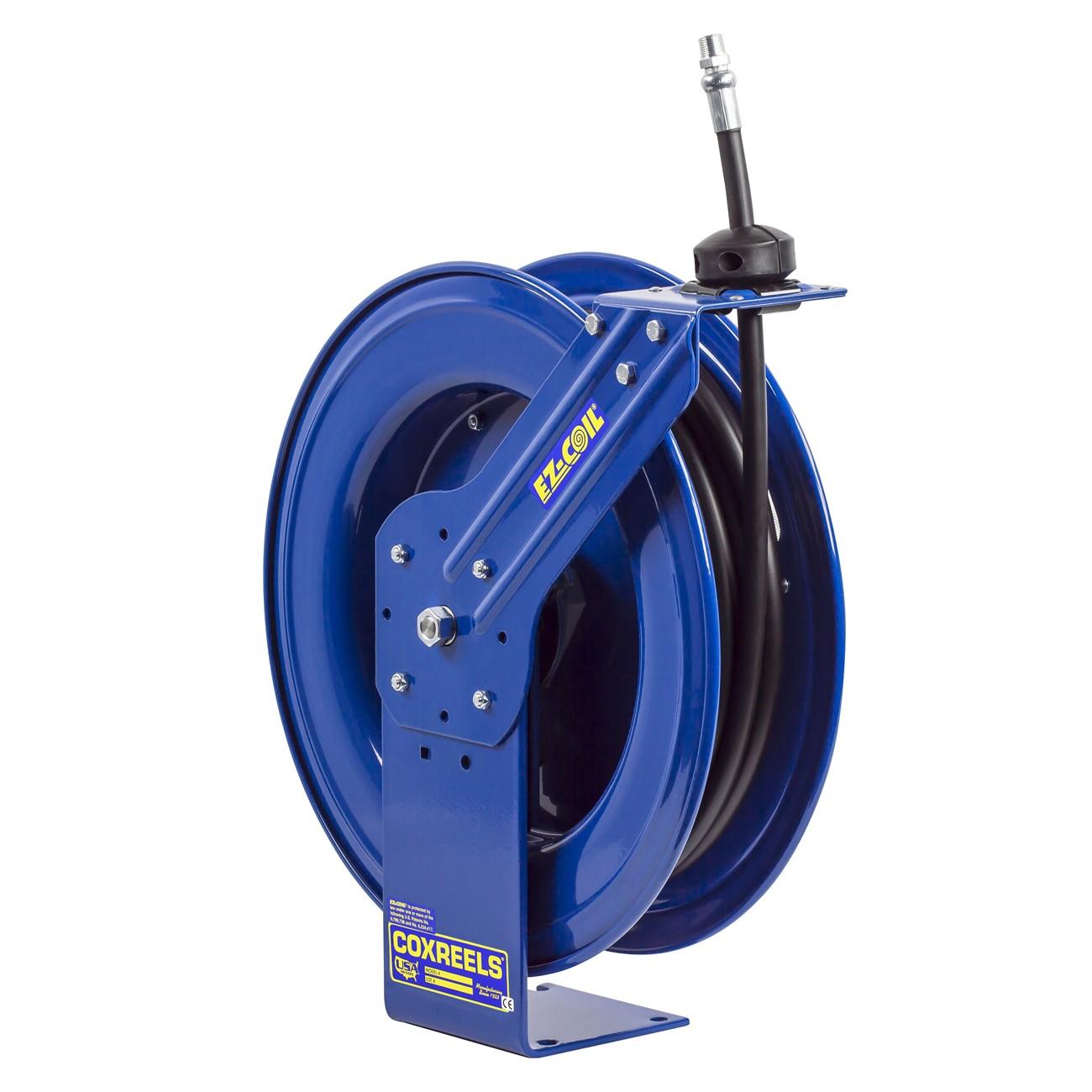

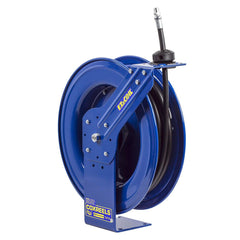

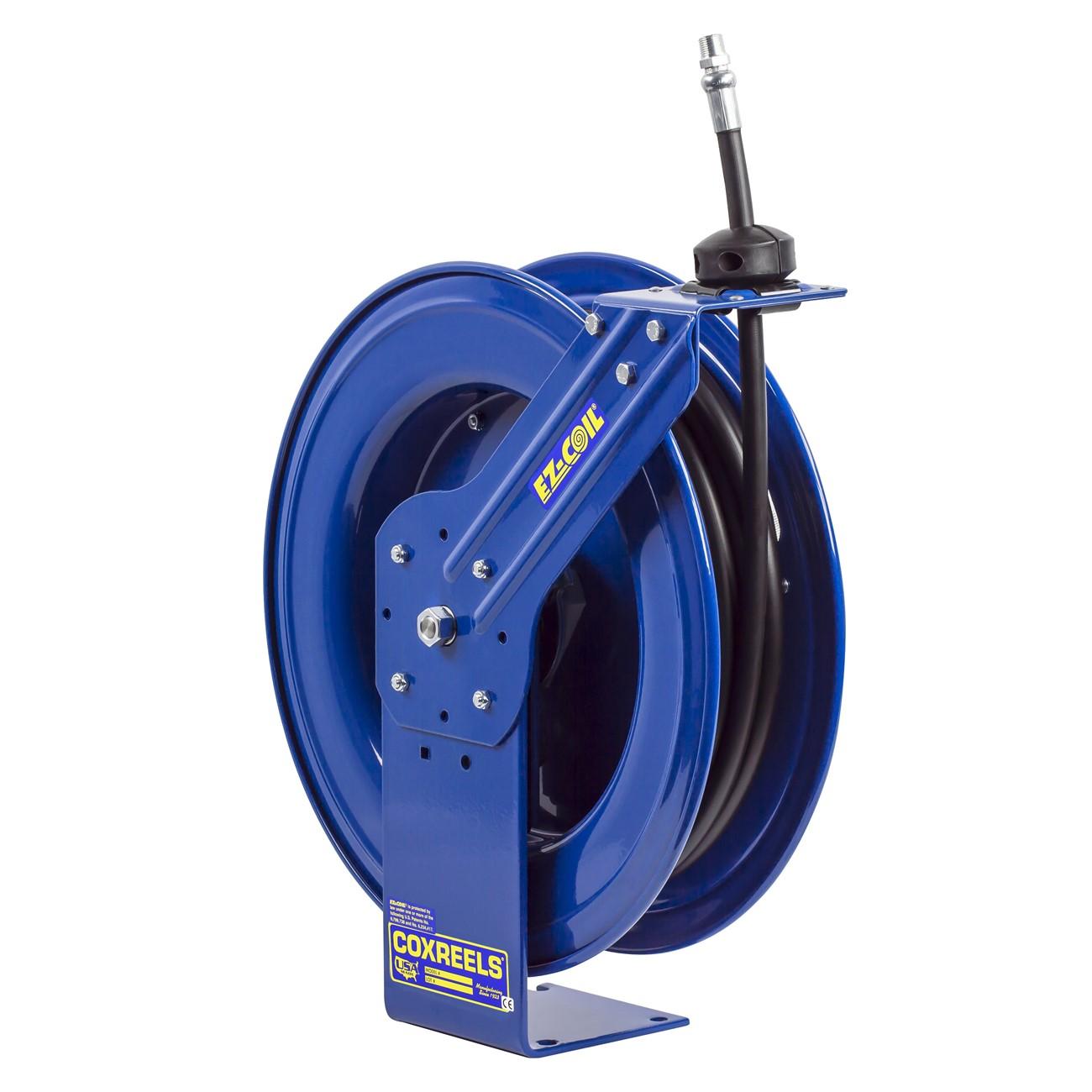

The COXREELS EZ-MP-450 is a spring-driven hose reel from the SH Series Super Hub line, built for demanding trade applications where reliable hose retraction and structural durability are required. The reel features a dual axle Super Hub support system that reduces vibration, increases operational stability, and strengthens overall frame integrity. The EZ-Coil retraction system is a patented safety mechanism that slows retraction speed by up to 80 percent compared to conventional spring reels, reducing snap-back risk during daily use. The enclosed, lubricated cartridge-style motor is removable for maintenance without specialty tooling. This reel is sized for 1/2 inch ID hose up to 50 feet in length and is suited for installation by HVAC technicians, plumbers, and other trade professionals in shop, fleet, or field service environments.

The EZ-MP-450 is designed for use in industrial, commercial, and trade service settings where consistent hose management is required. Typical applications include compressed air lines, fluid transfer, and general service hose in fixed or vehicle-mounted installations. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making this reel adaptable to a wide range of shop layouts and service truck setups. The single-pedestal steel base requires no welding and provides a stable mount across all supported orientations.

Key Features

• EZ-Coil patented retraction system slows recoil up to 80 percent slower than conventional spring reels for improved operator safety
• Super Hub dual axle support system reduces vibration and strengthens structural integrity during operation
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjustable for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 1/2 inch ID, 13/16 inch OD hose up to 50 feet in length. Consult COXREELS documentation to confirm compatibility with specific hose materials and service fluids before installation.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with hose reel mounting requirements and applicable service codes. Shut off all fluid or air supply and depressurize the line completely before mounting or servicing the reel. Use appropriate fasteners rated for the mounting surface type — wall, ceiling, floor, or vehicle bed. Verify the guide arm orientation matches the intended hose routing path before final mounting.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Capacity: 50 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 67 pounds
• Swivel Material: Solid brass
• Base Construction: Single pedestal, one-piece steel, no weld
• Finish: CPC powder coat, chip and rust resistant
• UPC: 674255723092

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-MP-450
