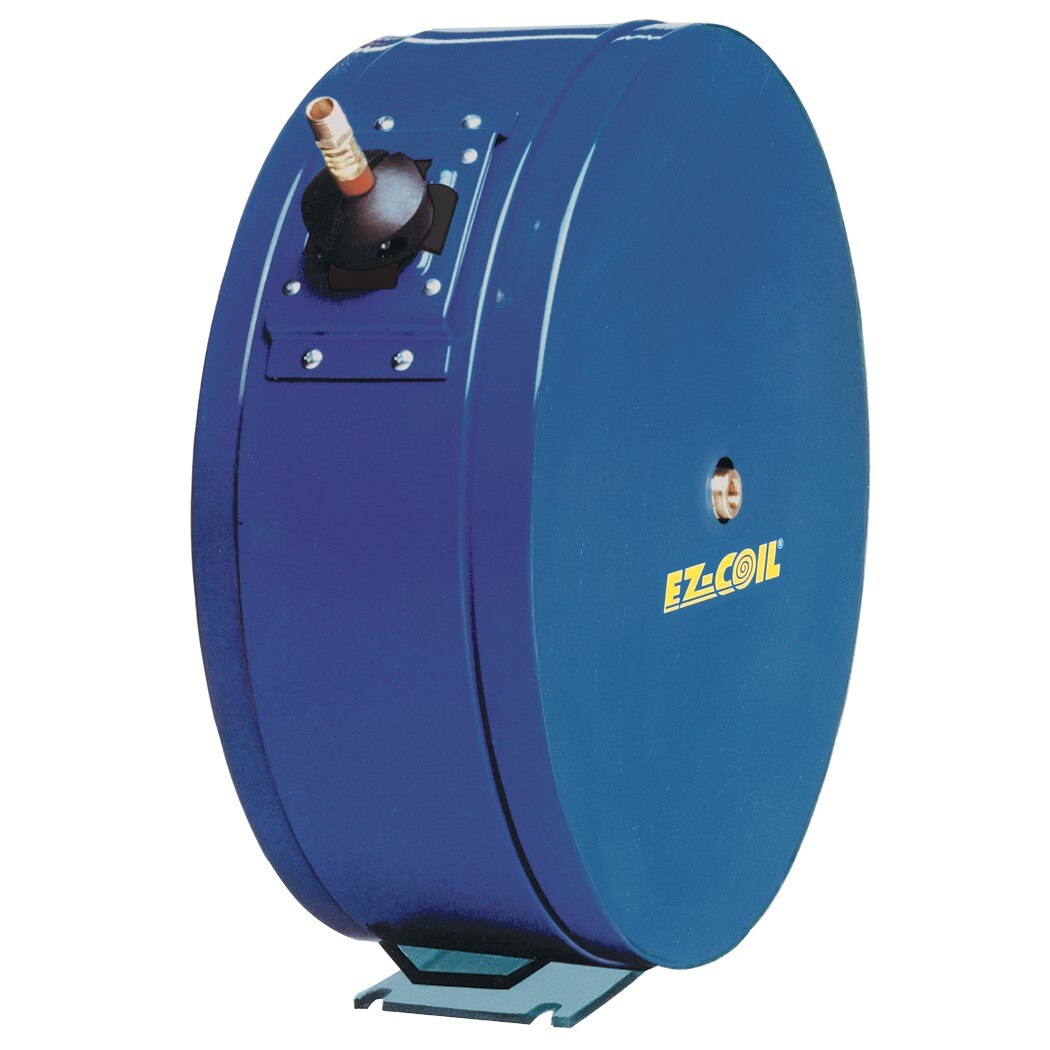

Coxreels EZ-ENML-450 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EZ-ENML-450 is an enclosed, spring-driven hose reel designed for professional trade environments where hose protection and a clean installation appearance are both required. The reel features a heavy-gauge powder-coated steel three-piece casing that shields the internal components, hose, and reel mechanism from the elements. A patented EZ-COIL spring motor retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back and improving operator safety. The reel accepts 1/2 inch ID hose up to 50 feet in length. Licensed HVAC technicians, plumbers, and general mechanical contractors install this unit in shops, service bays, and field trailers.

This hose reel is suited for fixed-mount installation in commercial and industrial settings where a tidy, professional appearance is required alongside durable hose management. The enclosed casing keeps the reel mechanism clean in dusty or dirty environments. The adjustable hose roller guide and multi-position ratchet lock allow positioning flexibility for various service applications. The three-piece casing design allows straightforward disassembly for periodic maintenance without removing the reel from its mount.

Key Features

• EZ-COIL enclosed cartridge-style spring motor retracts up to 80 percent slower than conventional reels for improved operator safety
• Heavy-gauge steel three-piece powder-coated casing with adjustable hose roller guide protects hose and internal components
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base with single pedestal and no-weld support post for maximum stability
• Multi-position lock ratchet mechanism and lubricated precision bearings included

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel accepting 1/2 inch ID hose up to 50 feet; verify inlet connection size and mounting requirements before installation.

Installation Notes

Installation is typically performed by a licensed mechanic, plumber, or HVAC technician. Shut off and depressurize the supply line before connecting to the inlet swivel. Secure the base to a structural surface capable of supporting the loaded reel weight. Verify inlet and outlet thread specifications match existing fittings before assembly.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Length: 50 feet
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 68 pounds
• Casing Material: Heavy-gauge powder-coated steel
• Swivel Material: Solid brass
• UPC: 674255724594

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-ENML-450
