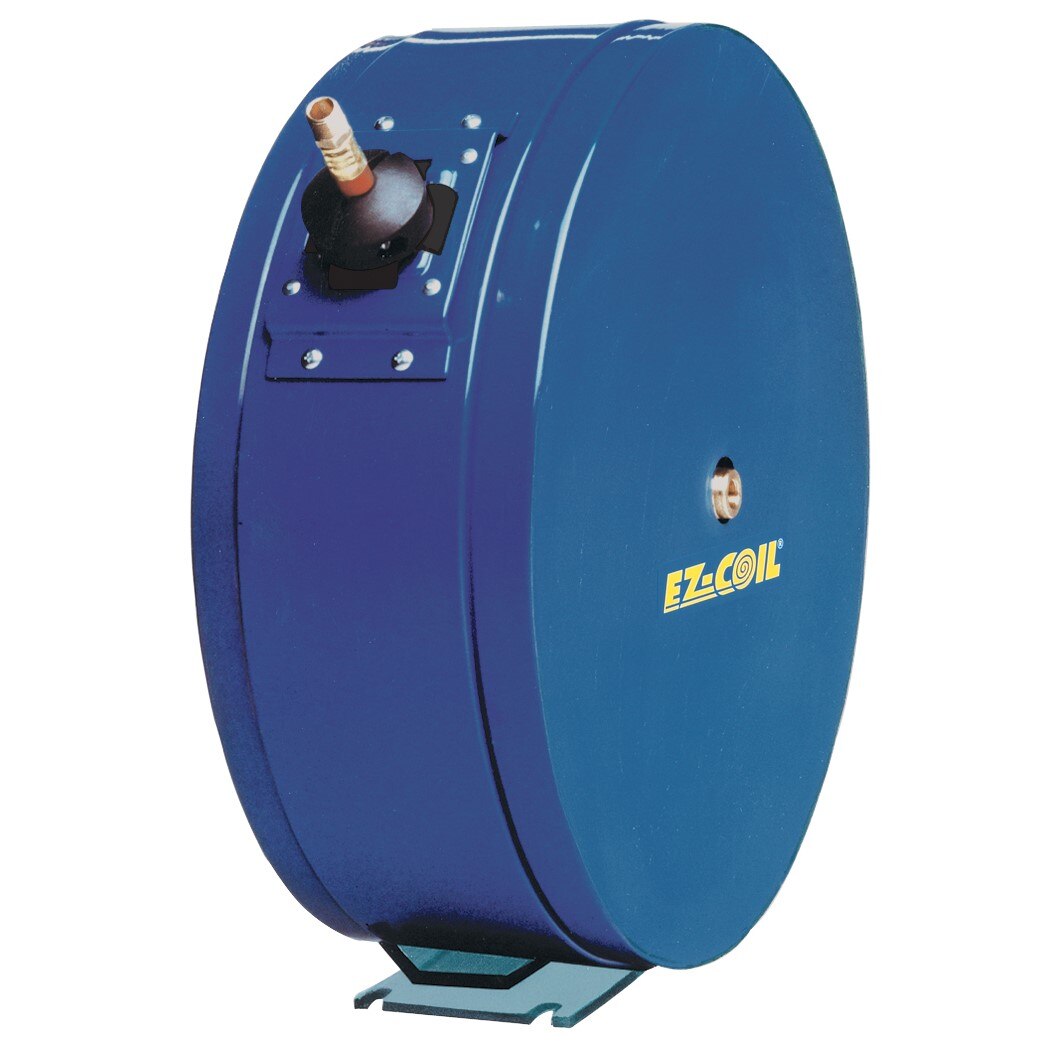

Coxreels EZ-ENM-425 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EZ-ENM-425 is an enclosed, spring-driven hose reel designed for trade and industrial environments where hose protection, clean appearance, and reliable retraction are priorities. The reel features a heavy-gauge powder-coated steel three-piece casing that shields internal components from dust, moisture, and physical damage. It accepts 1/2 inch ID hose up to 25 feet in length. The EZ-Coil spring motor is a lubricated, cartridge-style unit that retracts hose up to 80 percent slower than conventional reels, reducing snap-back hazard for the technician. Precision bearings and a multi-position lock ratchet mechanism provide smooth operation and controlled hose positioning at the workstation.

This hose reel is suited for professional service bays, maintenance facilities, and industrial work areas where a neat, enclosed reel installation is required. The adjustable hose roller guide and solid rubber hose stop help manage hose entry and exit, making it appropriate for compressed air, fluid transfer, or similar low-pressure hose applications installed by HVAC technicians, plumbers, mechanics, or general maintenance professionals. The three-piece casing disassembles without special tooling, simplifying periodic maintenance access.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for improved operator safety
• Heavy-gauge steel three-piece powder-coated casing protects reel, hose, and internal components from the elements
• Machined solid-brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed disc plates with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base with single pedestal support post and dual-axle hub support for maximum stability
• Chip-resistant, rust-inhibiting CPC powder-coat finish with adjustable solid rubber hose stop and multi-position lock ratchet

Compatibility

The EZ-ENM-425 is part of the COXREELS EZ-EN Series enclosed spring-driven hose reel line and is designed to accommodate 1/2 inch ID hose up to 25 feet in length. Consult COXREELS documentation to confirm compatibility with specific hose assemblies and mounting configurations.

Installation Notes

Installation is performed by a qualified technician familiar with hose reel mounting and the applicable fluid or pneumatic system being served. Shut off and depressurize the supply line fully before connecting or disconnecting hose fittings. Secure the reel to a structurally adequate surface using the single-pedestal base and appropriate fasteners rated for the assembly weight. The three-piece casing can be disassembled for maintenance access without removing the reel from its mount, following the manufacturer's service instructions.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Capacity: 25 feet
• Casing Material: Heavy-gauge powder-coated steel
• Swivel Material: Solid brass
• Spring Motor Type: Enclosed lubricated cartridge
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 61 pounds
• UPC: 674255724471

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-ENM-425
