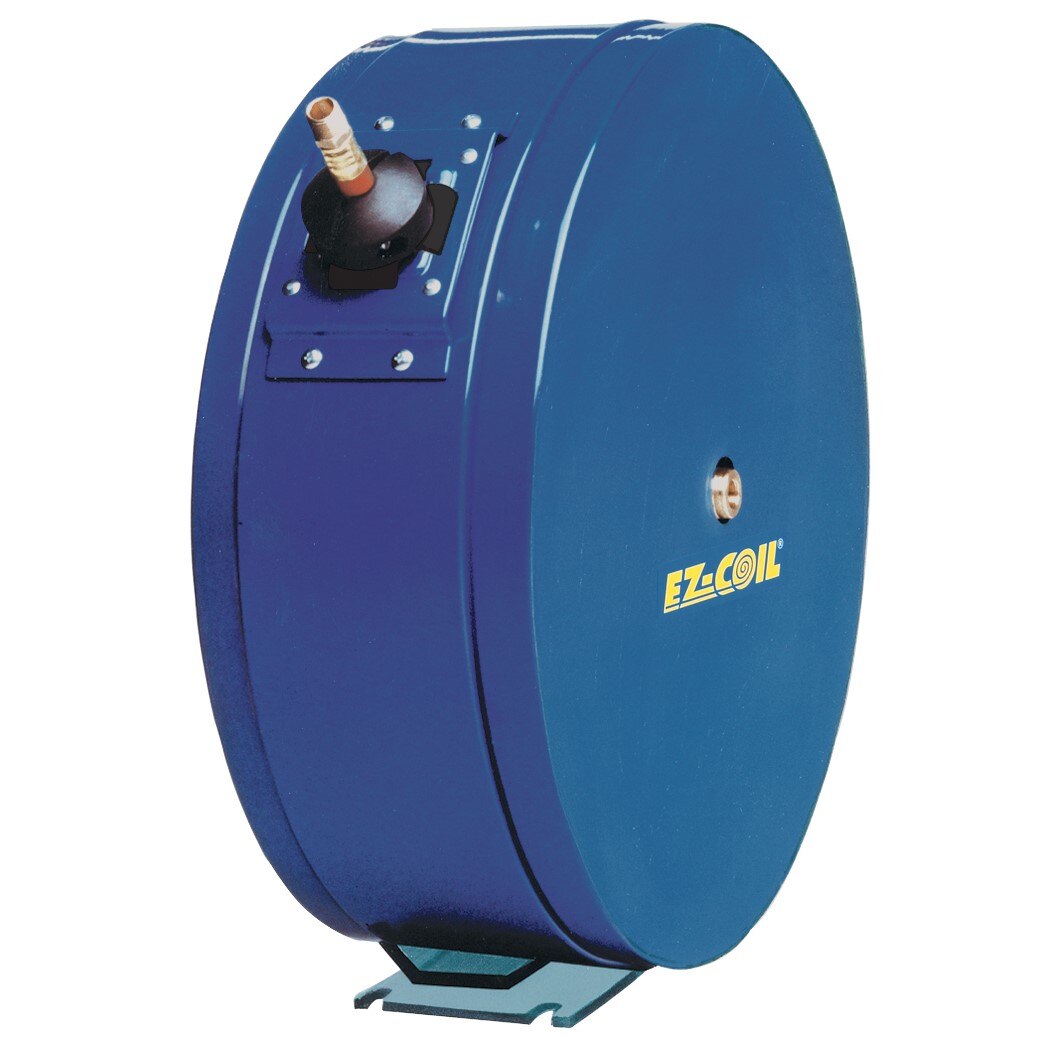

Coxreels EZ-ENM-350 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EZ-ENM-350 is an enclosed, spring-driven hose reel built for trade professionals who need reliable hose management in demanding work environments. The reel houses a 3/8-inch ID, 11/16-inch OD hose capacity up to 50 feet inside a heavy-gauge steel, powder-coated casing that protects internal components from dirt, debris, and corrosion. The EZ-COIL spring motor is a lubricated, enclosed cartridge design that retracts the hose up to 80 percent slower than conventional spring reels, reducing snap-back risk for the operator. Licensed plumbers, HVAC technicians, and maintenance professionals install this unit in shops, service bays, and industrial settings where a clean, professional appearance matters.

The EZ-ENM-350 is suited for air, water, and fluid delivery applications in both residential service and light commercial environments. The 3-piece steel casing is designed for straightforward installation and field maintenance without specialized tooling. The adjustable hose roller guide and multi-position lock ratchet mechanism make it adaptable to a range of mounting orientations and workflow layouts. This reel fits applications where hose protection, operator safety, and a tidy installation are all required at the same time.

Key Features

• EZ-COIL enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for improved operator safety
• Solid brass, machined 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-gauge steel 3-piece casing with CPC powder coat finish resists chips, rust, and corrosion
• CNC robotically spun and ribbed discs with rolled edges for greater strength and hose protection
• Solid one-piece steel base with single pedestal design and no-weld support post for maximum stability
• Includes adjustable solid rubber hose stop, multi-position lock ratchet, and lubricated precision bearings

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel for use with 3/8-inch ID hose up to 50 feet in length across standard air, water, and fluid service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and fluid system connections. Shut off and depressurize the supply line before connecting or servicing the swivel and hose fittings. Verify that the mounting surface can support the reel weight and that the chosen orientation is compatible with the adjustable roller guide range. Follow all applicable facility and local codes for fluid distribution and compressed-air systems.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Casing Material: Heavy-gauge steel with powder coat finish
• Swivel Material: Solid brass
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 80 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-ENM-350
