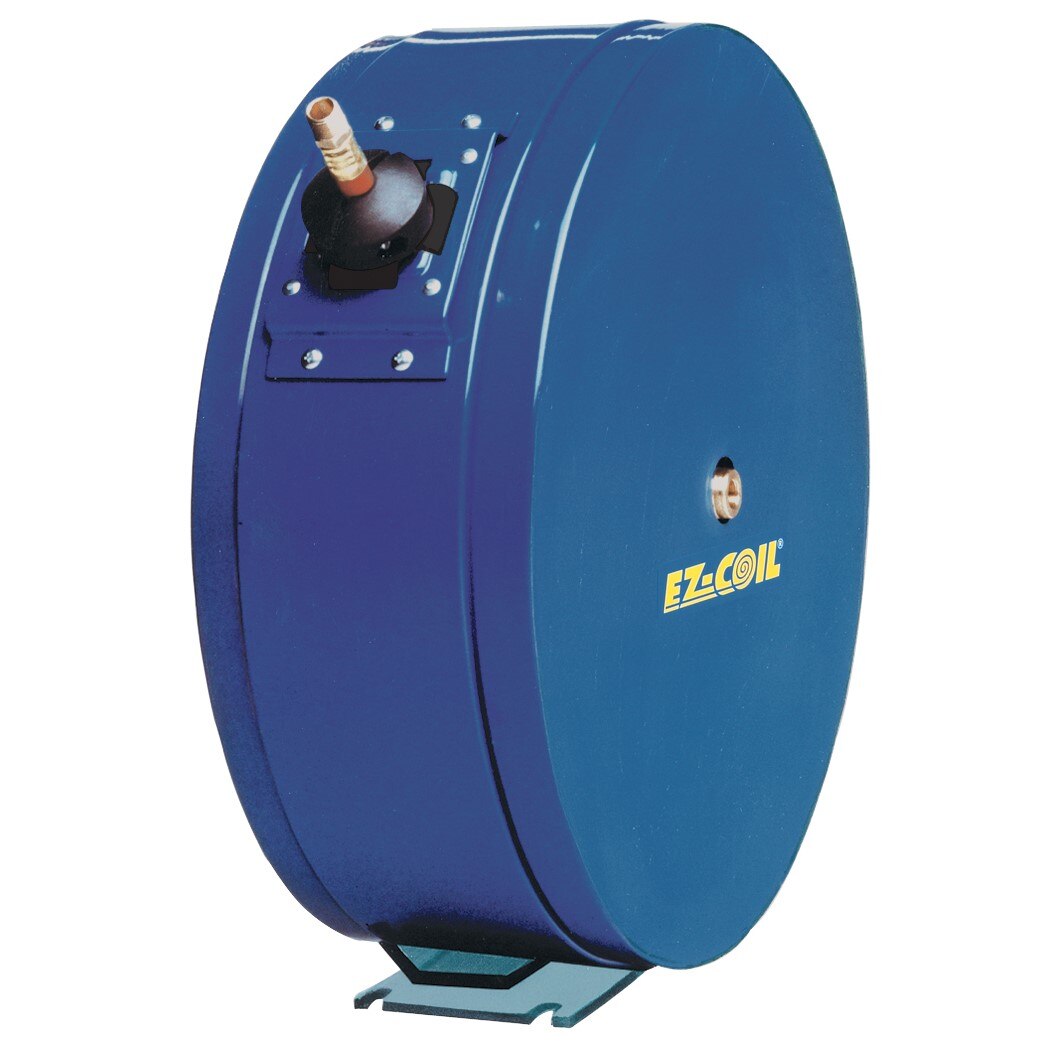

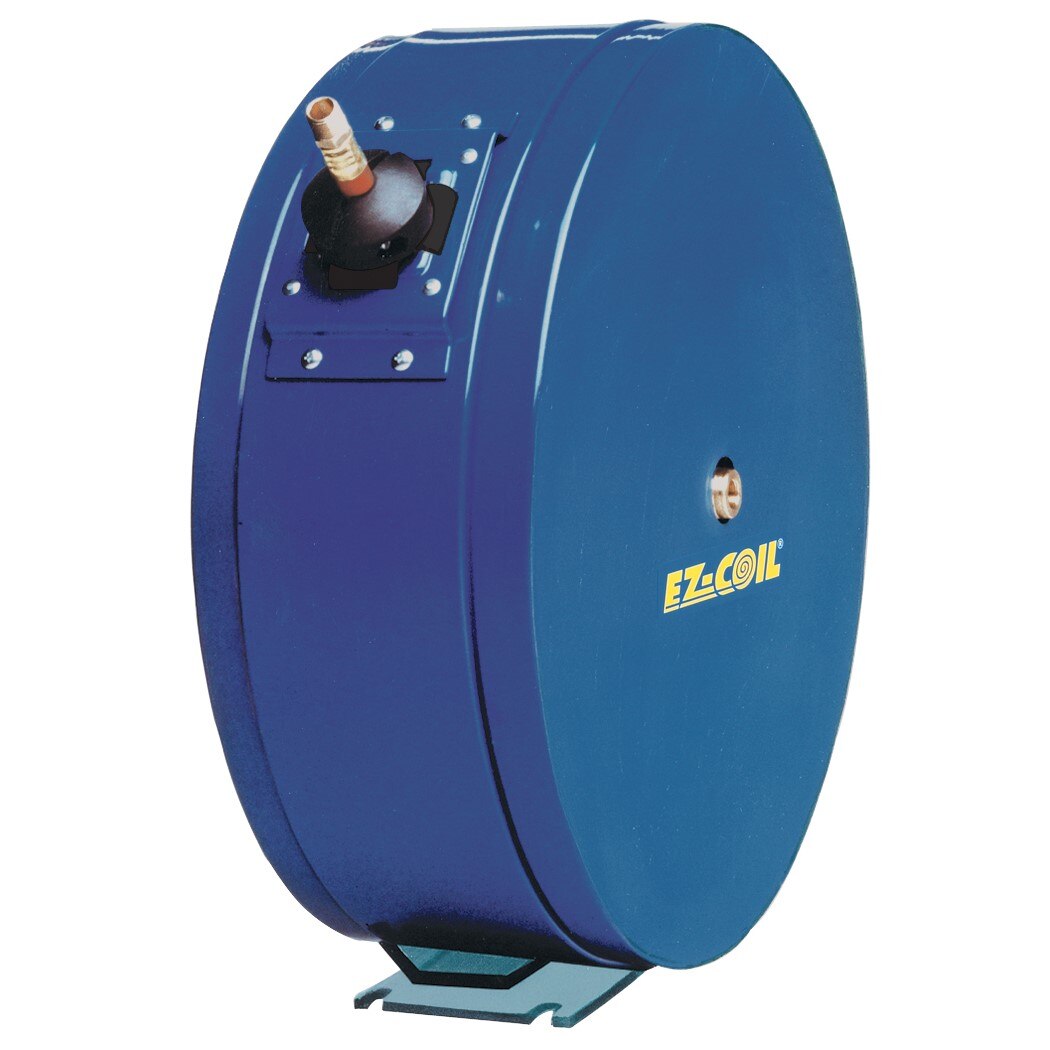

Coxreels EZ-ENL-450 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EZ-ENL-450 is an enclosed, spring-driven hose reel built for trade environments where hose protection and a clean installation matter. The reel features a heavy-gauge powder-coated steel 3-piece casing that shields internal components from dust, moisture, and physical damage. It accommodates a 1/2 inch ID hose up to 50 feet in length. The EZ-Coil spring motor is a lubricated, cartridge-style unit that retracts the hose up to 80 percent slower than conventional spring reels, reducing snap-back risk for the operator. CNC robotically spun and ribbed steel discs with rolled edges add structural strength while protecting hose integrity during retraction.

The EZ-ENL-450 is suited for commercial and industrial service bays, workshops, and maintenance facilities where a neat, enclosed reel installation is required. It is appropriate for air, water, and compatible fluid delivery applications in plumbing, HVAC, and general mechanical service settings. The adjustable hose roller guide and multi-position lock ratchet mechanism make it practical for high-use environments. Licensed trades and service contractors installing permanent hose stations will find the single-pedestal steel base and tool-free spring cartridge removal straightforward for both initial setup and ongoing maintenance.

Key Features

• EZ-Coil cartridge spring motor retracts up to 80 percent slower than conventional reels, reducing operator snap-back hazard
• Heavy-gauge steel 3-piece casing with CPC powder coat finish resists chips, rust, and environmental exposure
• CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• Machined solid brass 90-degree full-flow NPT swivel allows hose connection and seal service without removing reel from mount
• Solid one-piece steel base with single pedestal and dual axle support for maximum installation stability
• Multi-position lock ratchet mechanism and lubricated precision bearings for reliable operation in continuous-use settings

Compatibility

Designed for use with 1/2 inch ID hose up to 50 feet in length; intended as a direct-mount enclosed hose reel for commercial and industrial service station installations.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or mechanical contractor. Shut off the fluid supply line before connecting or disconnecting hose fittings. The 3-piece casing disassembles without special tooling for access to the spring cartridge during maintenance. Mount to a stable surface using the single-pedestal steel base, and verify that all NPT fittings are properly sealed before returning the system to service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose Length: 50 feet
• Drive Type: Spring driven
• Casing Material: Heavy-gauge steel with CPC powder coat finish
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 64 pounds
• UPC: 674255724556

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-ENL-450
