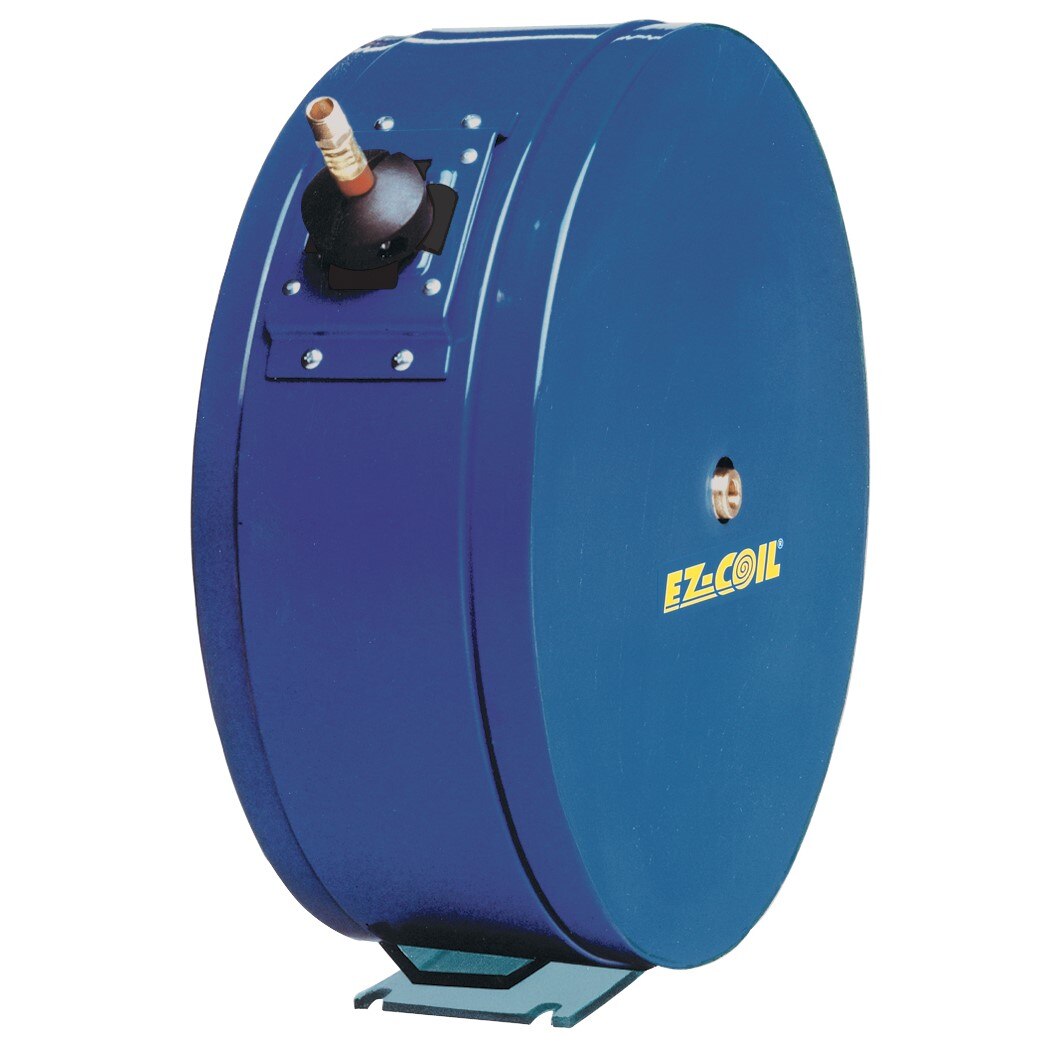

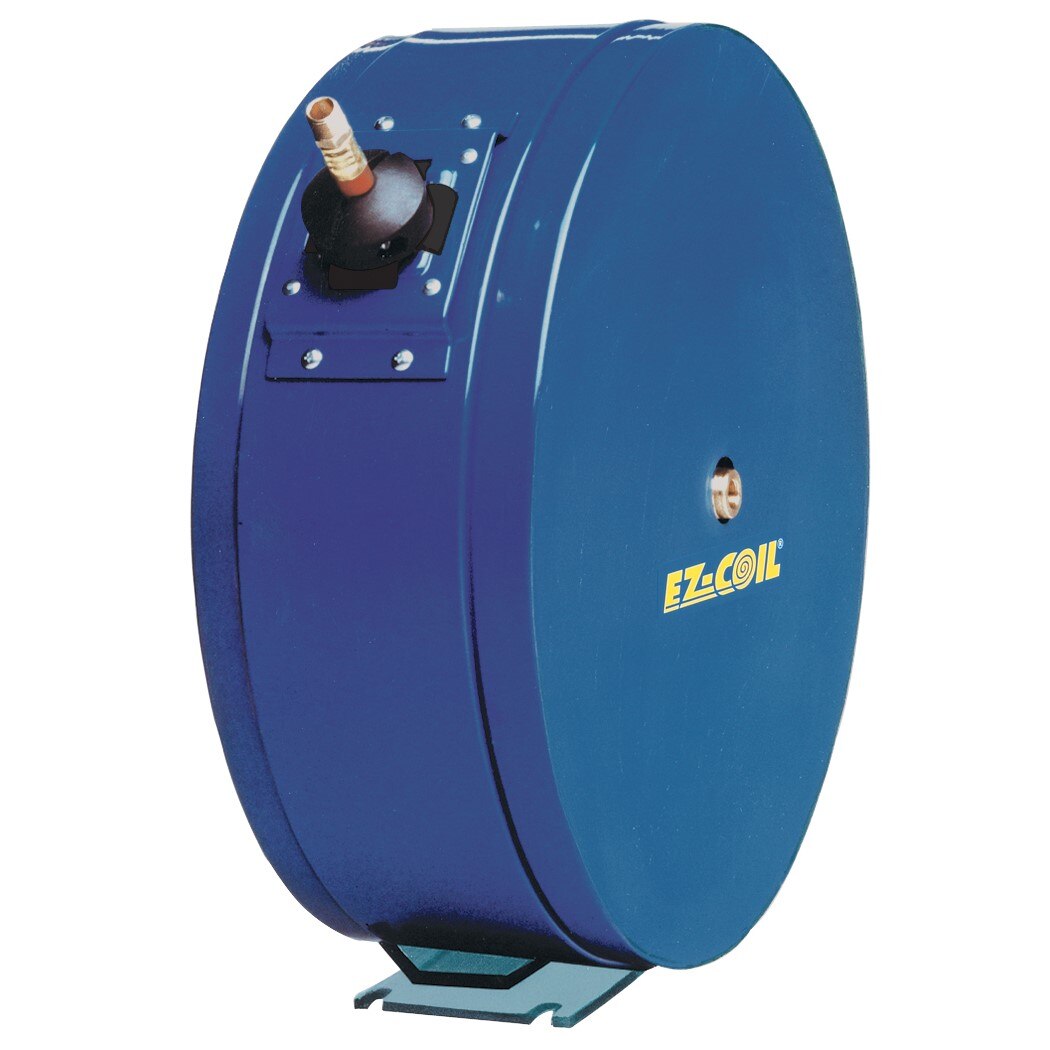

Coxreels EZ-ENL-425 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EZ-ENL-425 is an enclosed, spring-driven hose reel designed for trade and industrial environments where hose protection and a clean installation appearance are required. The reel features a heavy-gauge steel three-piece casing with a CPC powder coat finish that resists chipping and rust, shielding internal components from contaminants and physical damage. The EZ-Coil spring motor is a lubricated, enclosed cartridge design that retracts hose up to 80 percent slower than conventional reels, reducing snap-back hazards on the job. The unit weighs 58 pounds and measures 20.5 inches long, 10.5 inches wide, and 22 inches tall. Licensed plumbers, HVAC technicians, and industrial maintenance crews are the primary installers.

The EZ-ENL-425 is suited for workshop, service bay, and field service applications where hose management, operator safety, and equipment longevity are priorities. The enclosed casing makes it appropriate for environments that require a tidy, professional appearance, such as commercial service facilities, fleet maintenance shops, and industrial production areas. The 1/2 inch inner diameter hose path and 25-foot hose capacity accommodate standard air and fluid service lines common in those settings. The adjustable hose roller guide assists with smooth, consistent hose lay on the drum.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for improved operator safety
• Heavy-gauge steel three-piece casing with CPC powder coat finish resists chips, rust, and environmental exposure
• Machined solid brass 90-degree full-flow NPT swivel allows hose replacement without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges provide strength and hose protection
• Single-pedestal steel base with no-weld support post and dual axle support for maximum stability
• Multi-position lock ratchet mechanism and lubricated precision bearings for reliable service positioning

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel for use with 1/2 inch ID hose lines in air, water, and compatible fluid service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting requirements and applicable facility codes. Depressurize and disconnect the supply line before mounting or servicing the reel. The three-piece casing is designed for straightforward disassembly to allow access to the spring motor cartridge without removing the reel from its mount. Verify that the mounting surface and fasteners are rated for the combined weight of the reel and a fully loaded hose.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Length: 25 feet
• Spring Drive Type: EZ-Coil enclosed cartridge
• Casing Material: Heavy-gauge steel with CPC powder coat finish
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 58 pounds
• UPC: 674255724549

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-ENL-425
