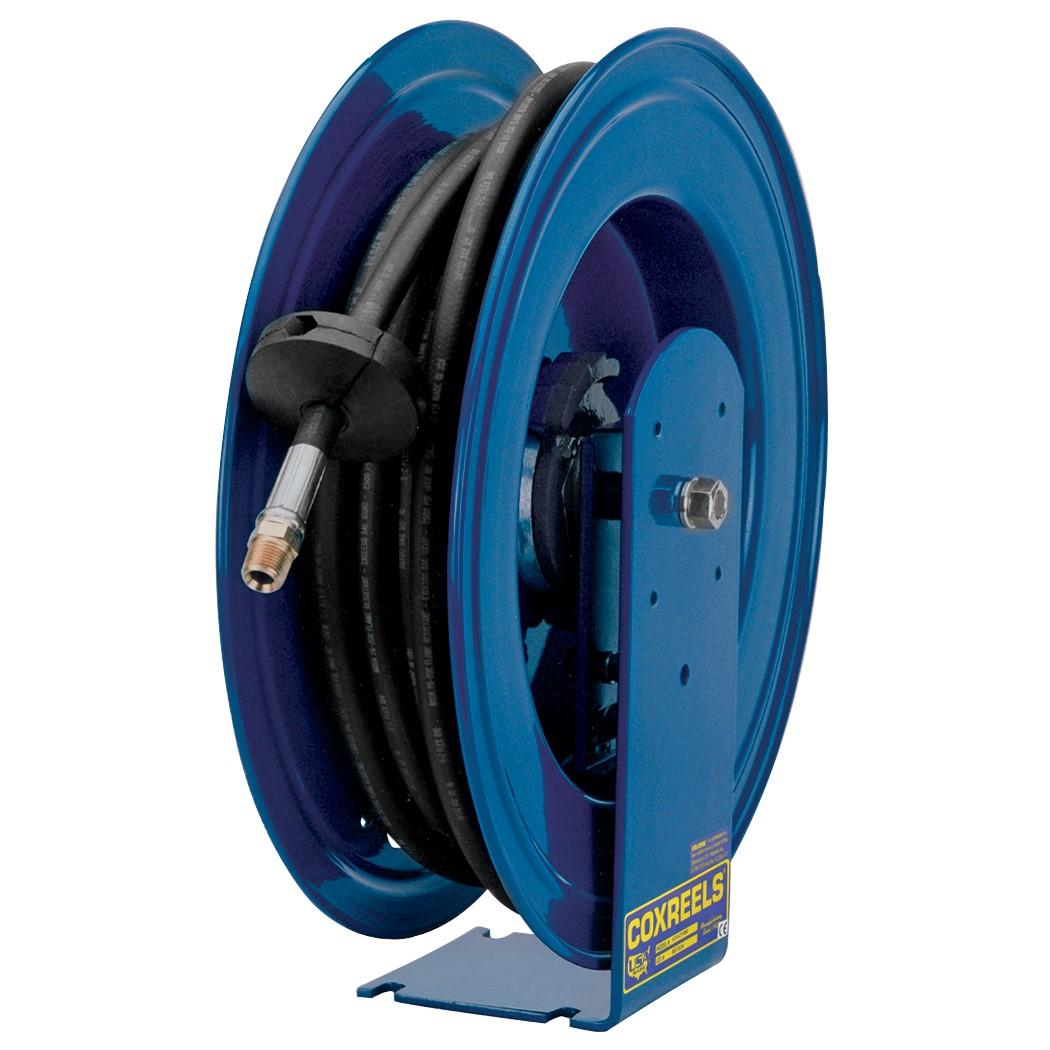

Coxreels EZ-E-MP-430 Spring Rewind Hose Reel 30 Ft

Product Description

The COXREELS EZ-E-MP-430 is a spring-driven, retractable hose reel from the EZ-E Series, built for professional multimedia delivery in multi-reel bank cabinet installations. It accepts 1/2 inch ID, 3/4 inch OD hose up to 30 feet in length and uses Coxreels patented EZ-COIL retraction system, which slows retraction speed by up to 80 percent compared to conventional spring reels. The reel ships as a single assembly weighing 47 pounds and is designed to mount inside interlocking expandable metal cabinets alongside additional reel assemblies. Licensed technicians in HVAC, plumbing, and general mechanical service install this unit.

The EZ-E-MP-430 is suited for commercial and industrial shop environments where multiple fluid or air delivery points are needed from a single organized cabinet bank. The expandable cabinet system allows any number of spring-driven reel assemblies to be combined in one enclosure, reducing clutter and improving workflow at service bays, equipment rooms, and professional vehicle installations. The reel is appropriate for applications requiring consistent hose management and a clean, finished appearance.

Key Features

• EZ-COIL patented safety retraction system slows hose return up to 80 percent slower than conventional spring reels
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for increased strength, hose protection, and operator safety
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without full disassembly
• Solid one-piece steel base with single pedestal design and Exclusive Super Hub dual axle support — no welds
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and multi-position lock ratchet mechanism

Compatibility

Designed for use within the COXREELS EZ-E Series expandable interlocking metal cabinet bank system; compatible cabinet configurations accept any number of spring-driven EZ-E Series reel assemblies.

Installation Notes

Installation is performed by qualified mechanical or service technicians familiar with compressed air or fluid distribution systems. Power down or depressurize the supply line before mounting or servicing the reel assembly. Follow all applicable facility and local codes governing hose reel mounting, line pressure, and fluid type. Do not exceed the hose or fitting ratings for the intended service fluid or pressure.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length: 30 feet
• Retraction Type: Spring-driven (EZ-COIL)
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: Steel, 1/4 inch, single pedestal
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 47 pounds
• UPC: 674255730250

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-MP-430
