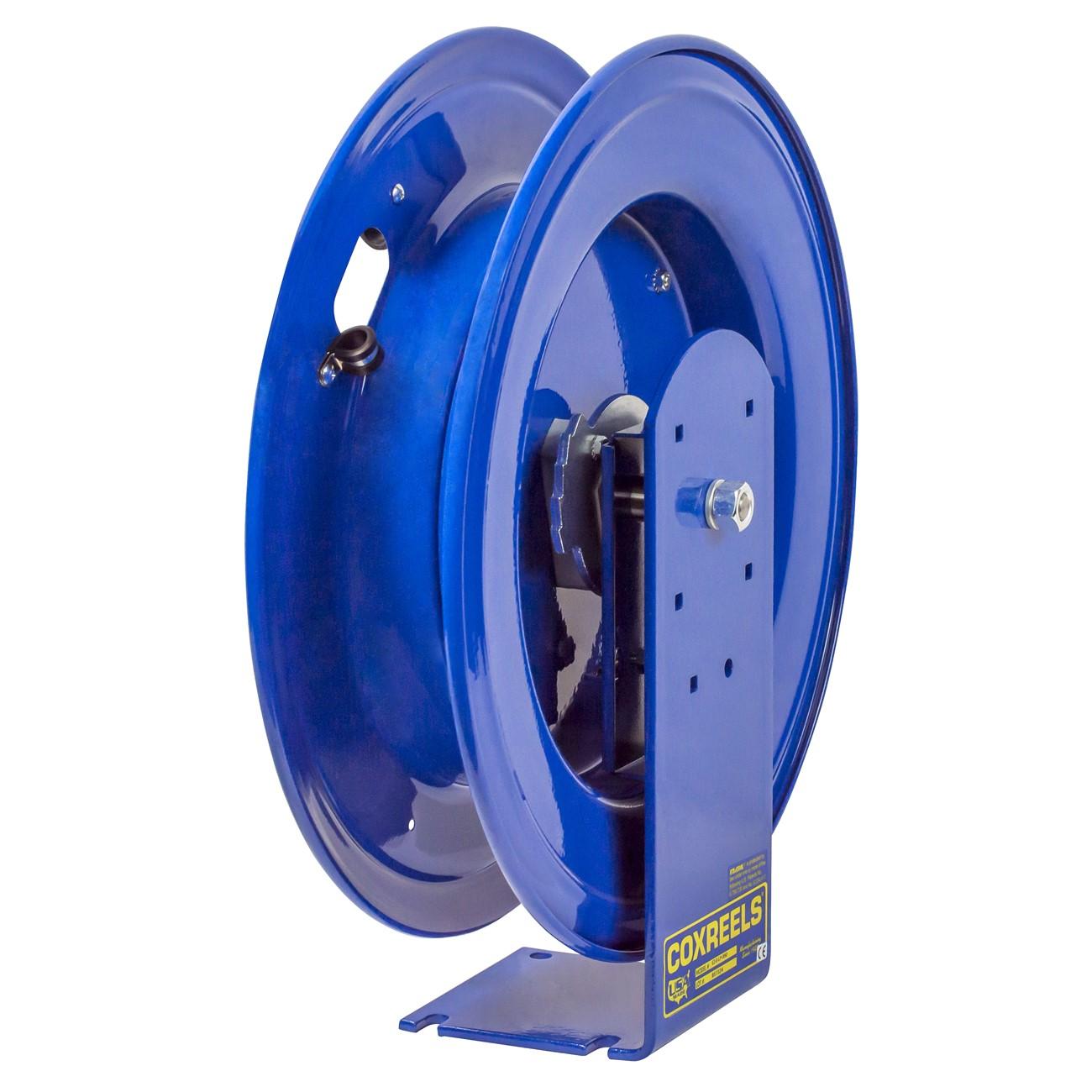

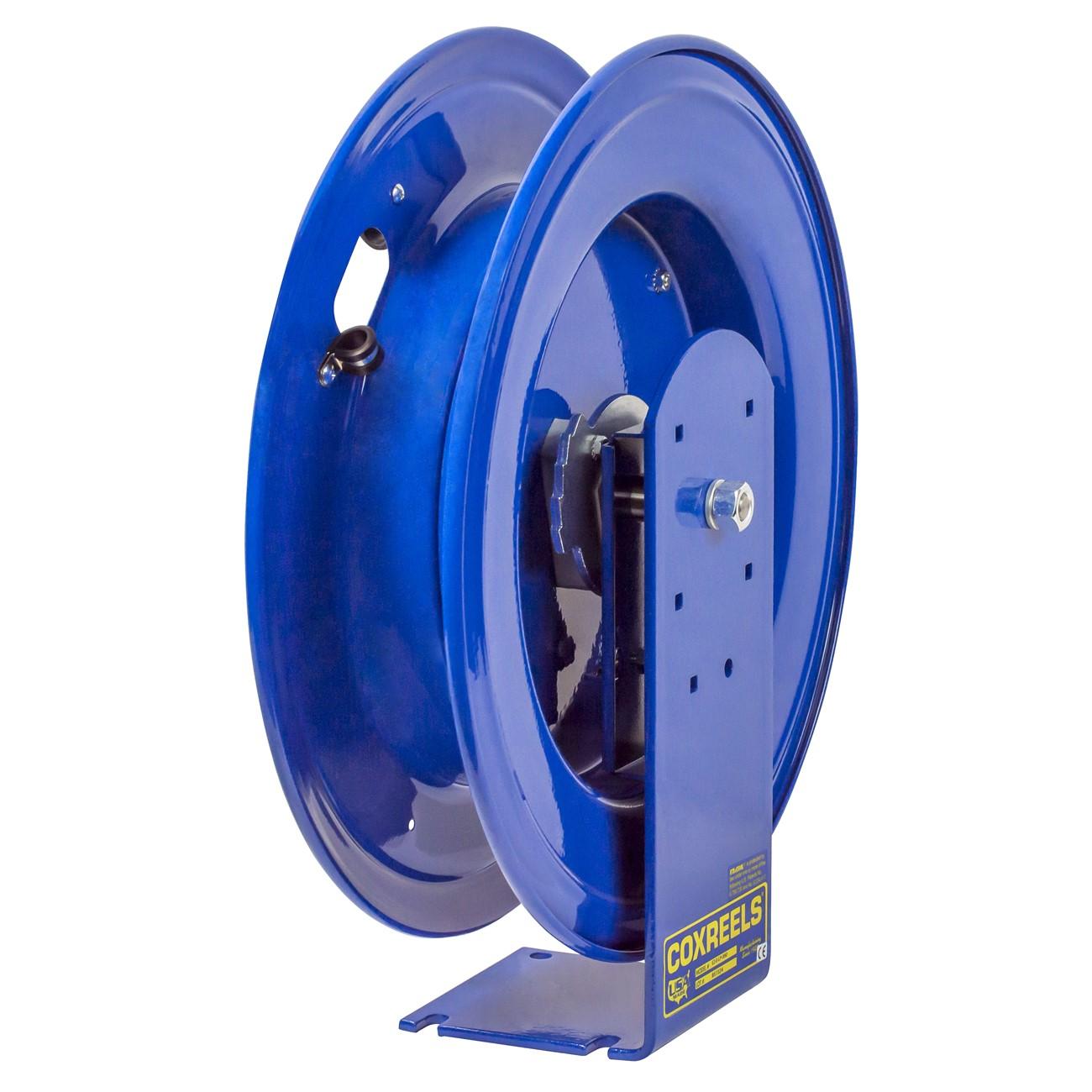

Coxreels EZ-E-LPL-350 Spring Rewind Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-E-LPL-350 is a spring-rewind hose reel built for professional multimedia delivery in shop, fleet, and service bay environments. It accepts 3/8-inch ID, 5/8-inch OD hose in a 50-foot length and retracts using Coxreels patented EZ-Coil cartridge motor, which slows retraction speed up to 80 percent compared to conventional spring reels. The reel ships as part of the E Series expandable bank platform, meaning multiple reel assemblies can be mounted in interlocking metal cabinets to any count the installation requires. Licensed HVAC technicians, plumbers, and fleet service technicians are the primary installers of this equipment.

The EZ-E-LPL-350 is suited for professional service facilities that need organized, centralized hose management across multiple bays or workstations. The expandable cabinet design allows the system to grow with a shop without requiring a complete reinstall. The reel is appropriate for air, water, and low-pressure fluid delivery lines routed in fixed overhead or wall-mount configurations. Its compact footprint — 20.5 inches long by 10.5 inches wide by 22 inches tall — fits standard bay column and wall-mount applications.

Key Features

• EZ-Coil enclosed cartridge motor retracts hose up to 80 percent slower than conventional reels for operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• Single-pedestal steel base with solid one-piece construction and no-weld support post for maximum stability
• Expandable interlocking metal cabinet system supports multiple reel assemblies in a single organized bank
• CPC powder coat finish is chip-resistant and rust-inhibiting; multi-position lock ratchet and lubricated precision bearings included

Compatibility

Designed for use within the COXREELS E Series expandable bank cabinet system; compatible with 3/8-inch ID, 5/8-inch OD hose at 50 feet. Consult COXREELS documentation for cabinet and bank assembly pairing details.

Installation Notes

Installation is typically performed by a qualified mechanic or facilities technician. Depressurize and disconnect the supply line before mounting or servicing the reel or swivel assembly. Secure the cabinet or mounting surface to structural members capable of supporting the loaded reel weight. Follow applicable OSHA and local facility codes for overhead and wall-mount hose reel installations.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Length: 50 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 40 pounds
• Swivel Material: Solid brass
• Base Material: Steel
• Finish: CPC powder coat
• UPC: 674255730328

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-LPL-350
