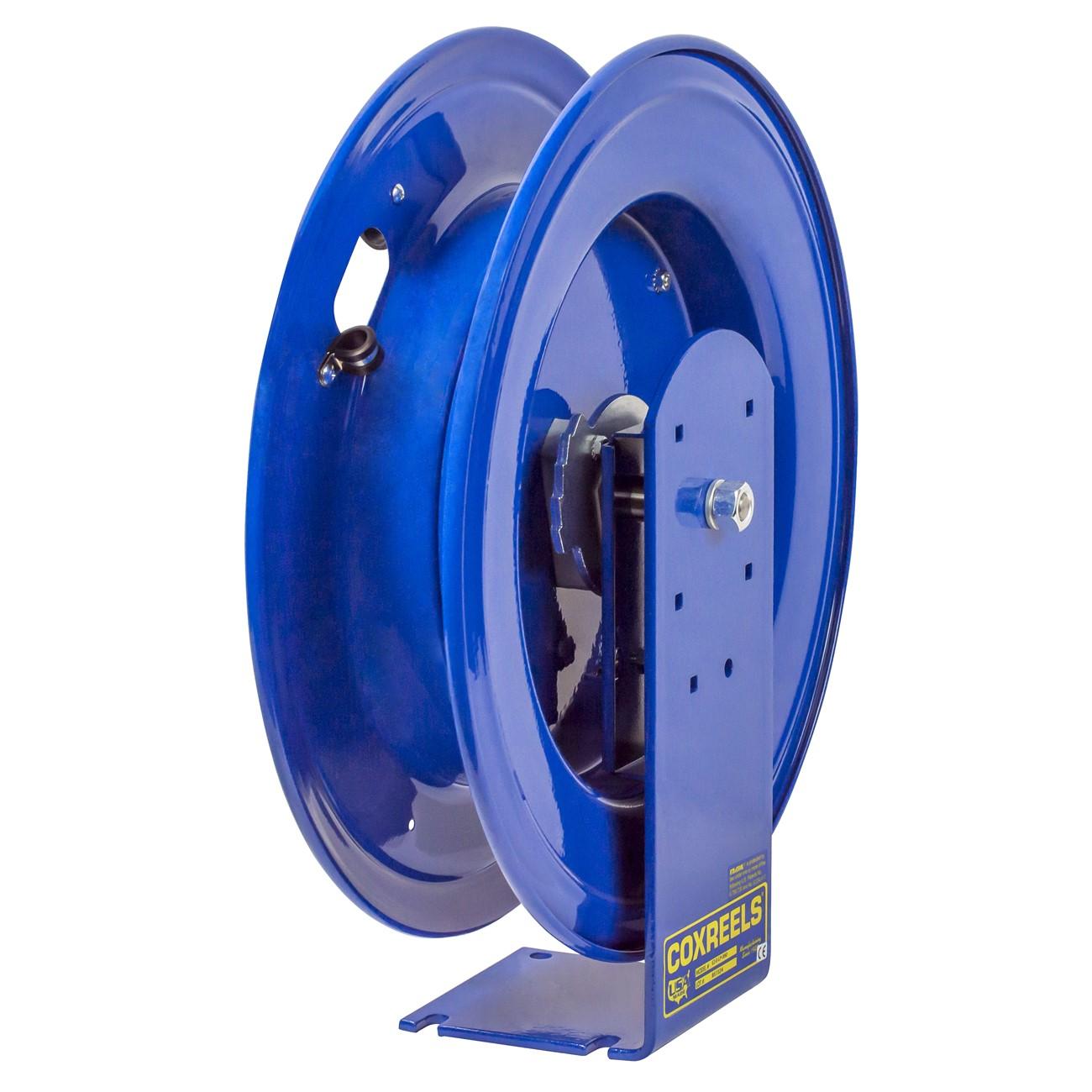

Coxreels EZ-E-HPL-350 Spring Rewind Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-E-HPL-350 is a spring-rewind hose reel from the E Series expandable bank system, engineered for professional-grade multimedia delivery in service bays, shops, and fleet maintenance facilities. The reel features Coxreels patented EZ-Coil retraction system, which slows rewind speed up to 80 percent compared to conventional spring reels, reducing hose whip and operator injury risk. Heavy-duty CNC robotically spun and ribbed discs with rolled edges provide structural strength and protect hose integrity over high-cycle use. The unit ships as a single assembly and is designed to integrate into interlocking expandable cabinet bank systems for organized multi-reel installations.

The EZ-E-HPL-350 suits commercial and industrial service environments where a 3/8 inch ID hose line is required for fluid or air delivery at a fixed or wall-mounted station. It is a strong fit for automotive service shops, fleet maintenance bays, manufacturing facilities, and similar settings where a neat, cabinet-integrated reel bank is specified. The expandable E Series cabinet design allows additional reel assemblies to be added to the same bank as service needs grow, without replacing existing hardware.

Key Features

• EZ-Coil patented slow-retract system rewinds up to 80 percent slower than standard spring reels for safer hose retrieval
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without special tooling
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Single-pedestal solid one-piece steel base with no-weld support post for maximum stability and dual axle support
• CPC powder coat finish is chip-resistant and rust-inhibiting; multi-position lock ratchet and lubricated precision bearings included

Compatibility

Designed for integration with COXREELS E Series expandable interlocking metal cabinet bank systems; accepts 3/8 inch ID hose in standard NPT configurations. Confirm hose OD, working pressure, and cabinet configuration against your existing E Series installation before ordering.

Installation Notes

Installation is typically performed by a qualified mechanic or facilities technician. Shut off and depressurize the supply line fully before connecting or disconnecting hose and swivel fittings. Mount the reel to a structurally sound surface capable of supporting the unit weight plus hose and fluid load. Follow applicable OSHA and local facility codes for compressed air and fluid delivery equipment installations.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length: 50 ft
• Swivel Type: 90-degree full-flow NPT, zinc-plated steel
• Base Material: Steel, one-piece no-weld construction
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 49 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-HPL-350
