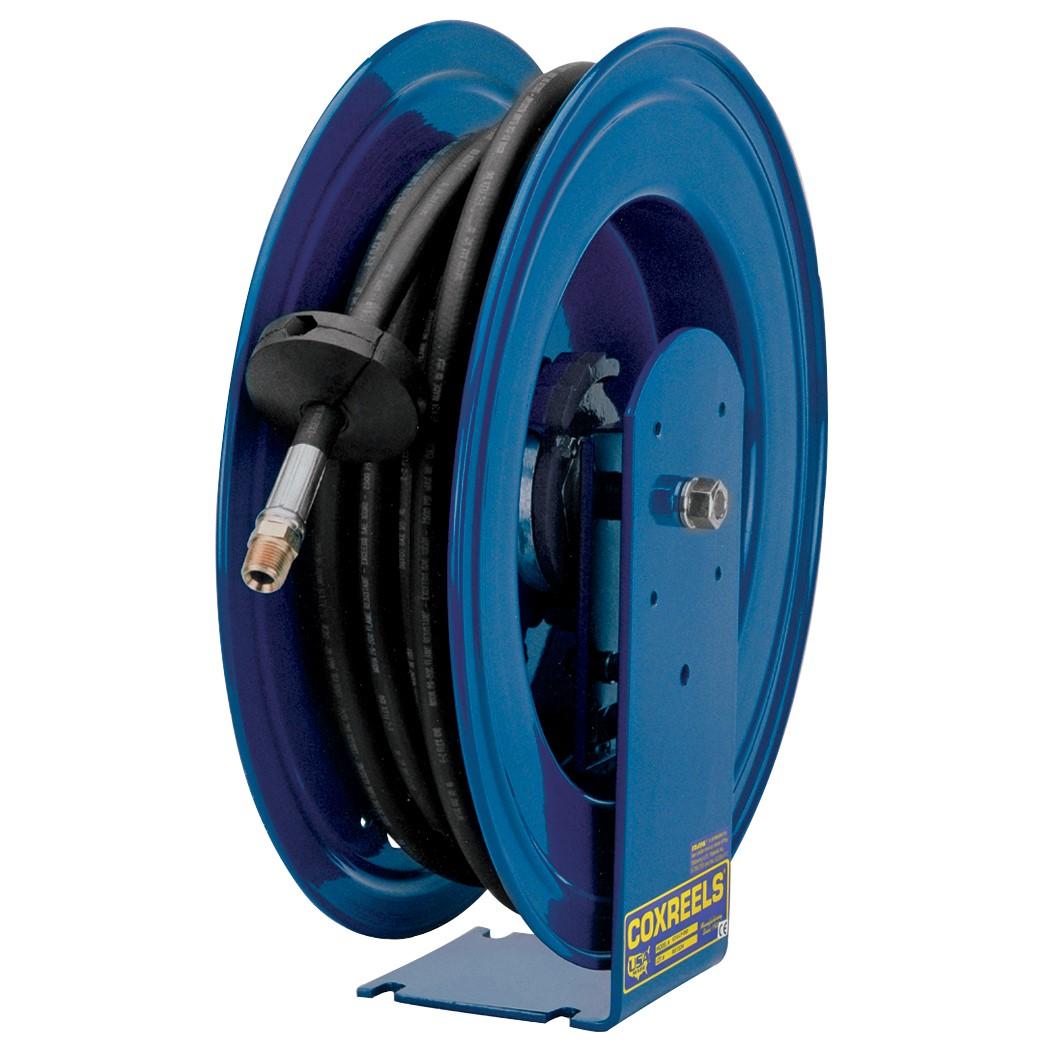

Coxreels EZ-E-HP-150 Spring Retractable Hose Reel

Product Description

The COXREELS EZ-E-HP-150 is a spring-retractable hose reel built for high-pressure service applications in professional shop and fleet environments. Part of the COXREELS E Series expandable bank system, this reel accepts 1/4 inch ID hose up to 50 feet and features the patented EZ-Coil slow-retract motor, which pulls hose in at up to 80 percent slower than conventional spring reels. The unit rides on a single-pedestal steel base with CNC robotically spun and ribbed discs. A machined zinc-plated steel 90-degree full-flow NPT swivel allows seal service and hose changes without removing the reel from its mount. Licensed contractors and shop technicians are the primary installers.

The EZ-E-HP-150 is designed for use in automotive service bays, fleet maintenance facilities, industrial shops, and anywhere a professional-grade, wall- or bench-mounted hose reel is required. The E Series cabinet design is expandable, allowing multiple reel assemblies to interlock into a single organized bank system. This makes it well suited for multi-bay installations where compressed air, fluid, or other media delivery points need to share a common mounting structure. The reel ships as a single assembly and is rated for repeated daily-use cycles in demanding trade environments.

Key Features

• EZ-Coil enclosed cartridge motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back risk
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal service and hose swaps without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base and support post with no-weld construction for maximum stability
• Expandable interlocking cabinet design supports multi-reel bank configurations
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and multi-position lock ratchet mechanism

Compatibility

Designed for use within the COXREELS E Series expandable bank system and compatible with standard 1/4 inch ID hose up to 50 feet in length. Verify swivel thread size and inlet connection against your existing plumbing before installation.

Installation Notes

Installation is typically performed by a qualified mechanic or plumber familiar with compressed-air or fluid distribution systems. Shut off and bleed the supply line before connecting or disconnecting any fittings. Follow local plumbing and mechanical codes for reel mounting, anchoring, and pressure-rated hose selection. Do not exceed the rated hose capacity or pressure rating of the reel assembly.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Capacity: 50 feet
• Retract Type: Spring-driven EZ-Coil
• Swivel Material: Zinc-plated machined steel
• Swivel Angle: 90 degrees full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Construction: Single-pedestal solid one-piece steel, no-weld
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 60 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-HP-150
