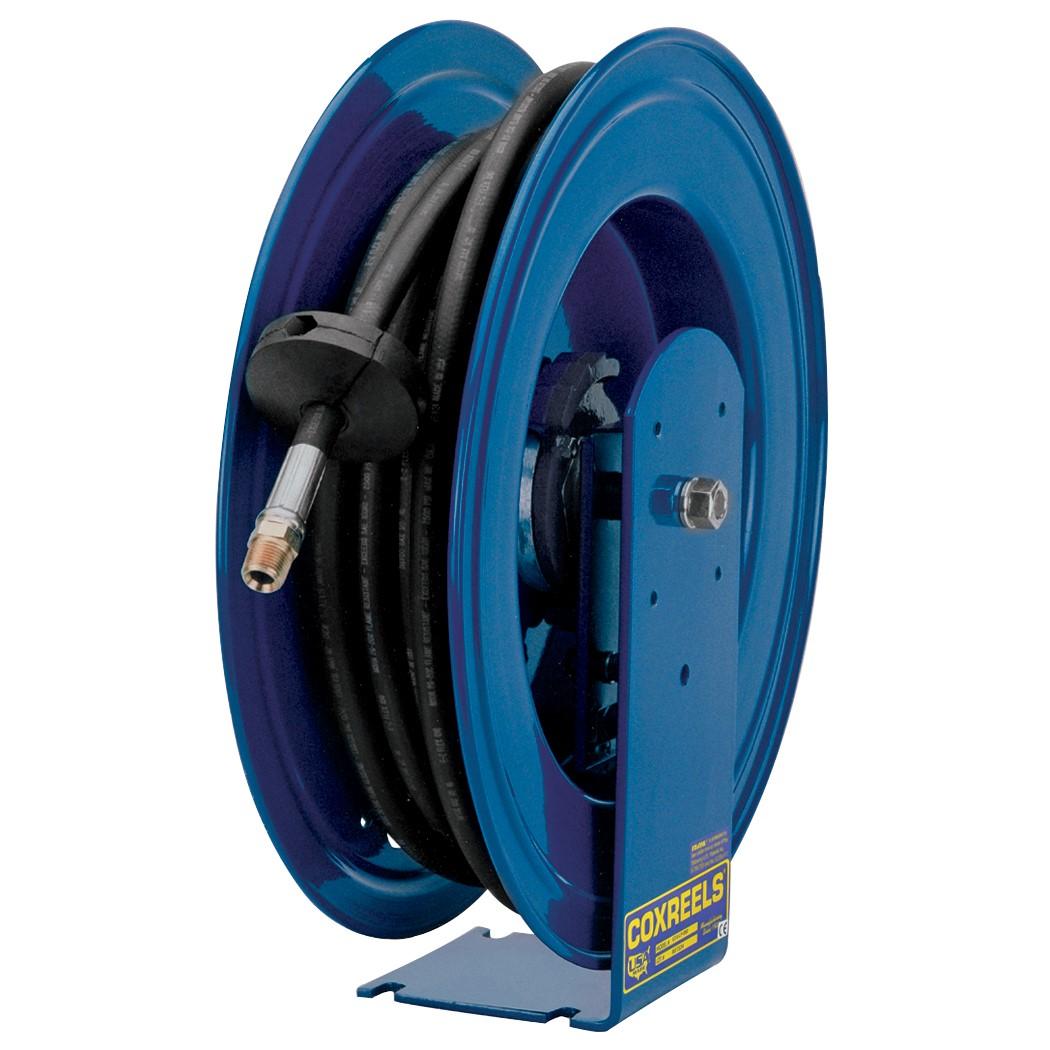

Coxreels EZ-E-HP-130 Spring Retractable Hose Reel

Product Description

The COXREELS EZ-E-HP-130 is a spring-retractable hose reel built for high-pressure fluid delivery in demanding professional environments. Designed around Coxreels patented EZ-Coil system, this reel retracts up to 80% slower than conventional spring reels, reducing snap-back hazards during daily use. It accepts 1/4 inch ID, 9/16 inch OD hose up to 30 feet in length. The unit features a machined zinc-plated steel 90-degree full-flow NPT swivel, CNC robotically spun and ribbed discs with rolled edges, and a chip-resistant CPC powder coat finish. Licensed HVAC techs, plumbers, and fluid service professionals are the primary installers and end users of this reel.

The EZ-E-HP-130 is suited for shop service bays, fleet maintenance facilities, and professional trade environments where multiple reels may be deployed together. It is part of the COXREELS E Series expandable bank system, which uses interlocking metal cabinets designed to accommodate any number of spring-driven reel assemblies side by side. This makes the unit a practical fit for organized, multi-outlet fluid delivery stations in commercial and light-industrial settings.

Key Features

• EZ-Coil patented safety retraction: retracts up to 80% slower than conventional spring reels to reduce hose snap-back risk
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and hose protection
• Solid one-piece steel base with single pedestal and Exclusive Super Hub dual axle support — no-weld construction for maximum stability
• Compatible with expandable interlocking metal cabinet bank systems for multi-reel professional installations
• Adjustable solid rubber hose stop, multi-position lock ratchet mechanism, and lubricated precision bearings included

Compatibility

Designed for use with 1/4 inch ID, 9/16 inch OD hose up to 30 feet, and compatible with the COXREELS E Series expandable interlocking cabinet bank system for multi-reel assembly configurations.

Installation Notes

Installation is typically performed by a qualified service technician or plumber familiar with pressurized fluid systems. Shut off and depressurize the supply line fully before mounting or servicing the reel or swivel assembly. Secure the base mount to a structurally sound surface capable of supporting the reel and hose load. Follow all applicable local codes and manufacturer torque guidance for swivel and inlet fittings.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length: 30 feet
• Retraction Type: Spring-driven EZ-Coil
• Swivel Material: Zinc-plated machined steel
• Swivel Angle: 90 degrees full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 46 pounds
• UPC: 674255730274

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-E-HP-130
