Coxreels ENML-N-450 Enclosed Spring Driven Hose Reel

Product Description

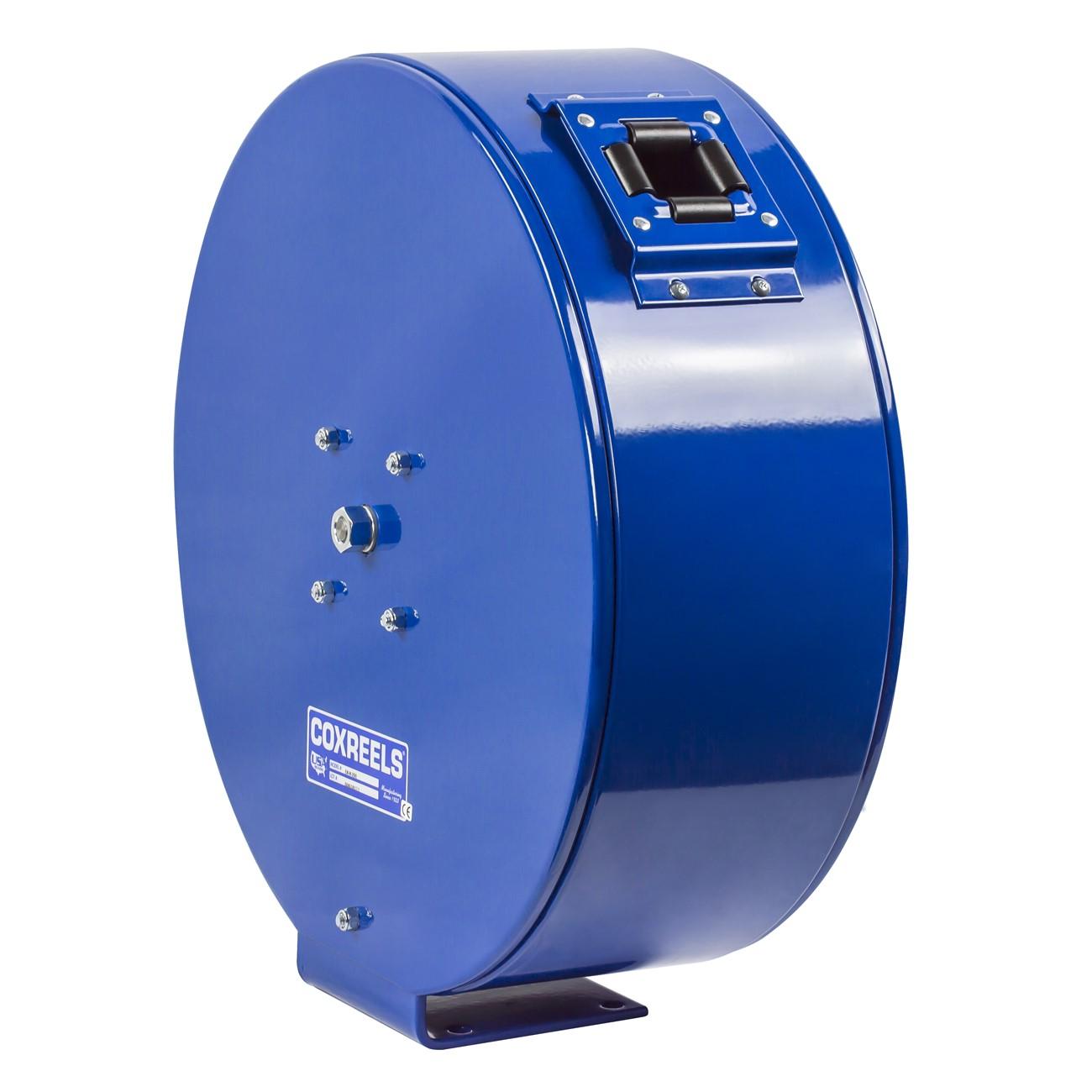

The COXREELS ENML-N-450 is an enclosed, spring-driven hose reel from the EN Series, designed for trade and industrial environments where hose protection and a clean appearance are both priorities. The reel is housed in a heavy-gauge, powder-coated steel 3-piece casing that shields internal components from moisture, debris, and environmental wear. It accepts 1/2-inch ID hose up to 50 feet in length. A machined solid-brass 90-degree full-flow NPT swivel allows seal maintenance and hose swaps without removing the reel from its mount. Licensed plumbers, HVAC technicians, and industrial service crews are the typical installers.

The ENML-N-450 fits residential, commercial, and light industrial service applications where a tidy, protected hose storage solution is required. The enclosed casing makes it well-suited for shop bays, service vehicles, mechanical rooms, and any work environment that requires a professional appearance alongside reliable hose retraction. The spring-driven retraction mechanism and multi-position lock ratchet allow controlled extension and secure hold at variable lengths.

Key Features

• Heavy-gauge steel 3-piece powder-coated casing shields hose and internal components from the elements
• Machined solid-brass 90-degree full-flow NPT swivel supports seal maintenance without dismounting the reel
• Cartridge-style spring motor is lubricated, enclosed, and fully removable for field maintenance
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Single-pedestal solid one-piece steel base with no-weld support post for maximum stability
• Multi-position lock ratchet mechanism and lubricated precision bearings for reliable operation

Compatibility

Designed as an OEM-style spring-driven enclosed hose reel suitable for 1/2-inch ID hose applications up to 50 feet in length.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified industrial maintenance professional. Shut off the supply line and depressurize the system before connecting or disconnecting the hose or swivel fittings. The 3-piece casing is designed for straightforward assembly and disassembly to simplify mounting and servicing. Follow all applicable local codes and the manufacturer's mounting instructions when securing the pedestal base.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Length: 50 feet
• Drive Type: Spring driven
• Swivel: Solid brass 90-degree full-flow NPT
• Casing Material: Heavy-gauge powder-coated steel
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 70 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENML-N-450
