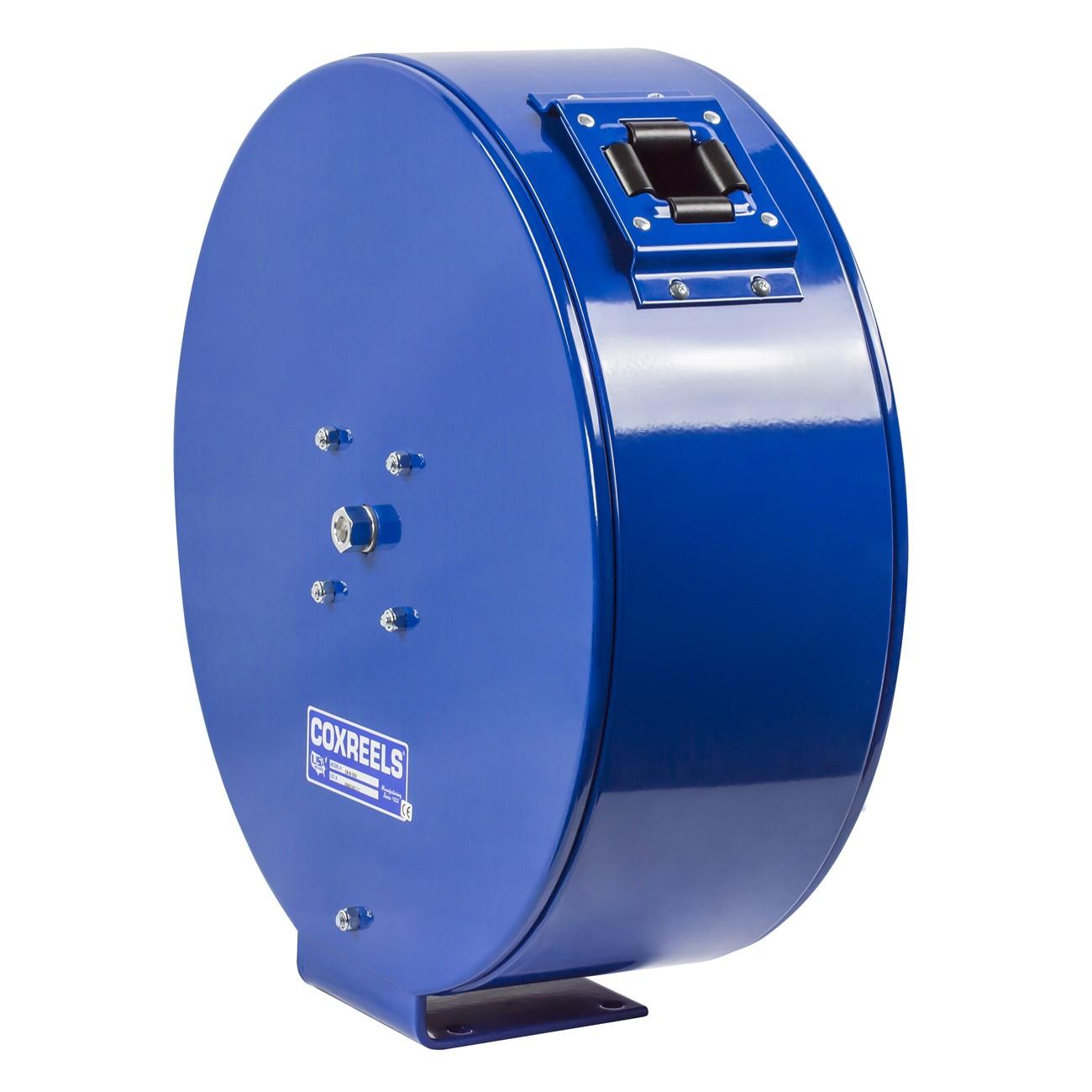

Coxreels ENML-N-350 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENML-N-350 is an enclosed, spring-driven hose reel from the EN Series, designed for trade and industrial environments where hose protection and a clean installation appearance are required. The reel is housed in a heavy-gauge, three-piece powder-coated steel casing that shields internal components from dust, debris, and moisture. The spring-driven retraction mechanism keeps hose neatly stored and ready for use. At 68 pounds, this is a substantial, floor- or wall-mountable unit suited for shops, service bays, and jobsite facilities. Licensed HVAC technicians, plumbers, and fluid service professionals specify this reel for compressed air, fluid transfer, and similar hose-delivery applications.

The ENML-N-350 is intended for use in commercial and industrial service environments where a professional appearance and reliable hose management are priorities. The enclosed casing makes it well-suited for customer-facing areas such as service centers, dealerships, and professional shops. It accepts a 3/8 inch inside diameter hose with an 11/16 inch outside diameter and accommodates up to 50 feet of hose length. The three-piece casing design simplifies installation and routine maintenance without requiring full removal of the unit from its mount.

Key Features

• Enclosed three-piece heavy-gauge steel casing with CPC powder coat finish resists chips, rust, and environmental exposure
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Lubricated, enclosed cartridge-style spring motor is removable for safe and convenient servicing
• CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and hose protection
• Solid one-piece steel base with single pedestal and no-weld support post for maximum stability
• Multi-position lock ratchet mechanism and lubricated precision bearings included

Compatibility

Designed for use with 3/8 inch inside diameter hose up to 50 feet in length; intended as an OEM-style enclosed spring-driven reel for compressed air, fluid, and similar service-line applications in commercial and industrial settings.

Installation Notes

Installation is typically performed by a qualified tradesperson or facilities maintenance professional. Shut off and depressurize the supply line before connecting or disconnecting the hose or swivel. Follow all applicable OSHA and local safety codes for pressurized fluid systems. The three-piece casing can be disassembled without removing the reel from its mount, simplifying both initial installation and subsequent maintenance access.

Technical Specifications

• Hose Inside Diameter: 3/8 inches
• Hose Outside Diameter: 11/16 inches
• Hose Length Capacity: 50 feet
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 68 pounds
• Casing Material: Heavy-gauge steel with CPC powder coat finish
• Swivel Material: Solid brass
• Drive Type: Spring-driven
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENML-N-350
