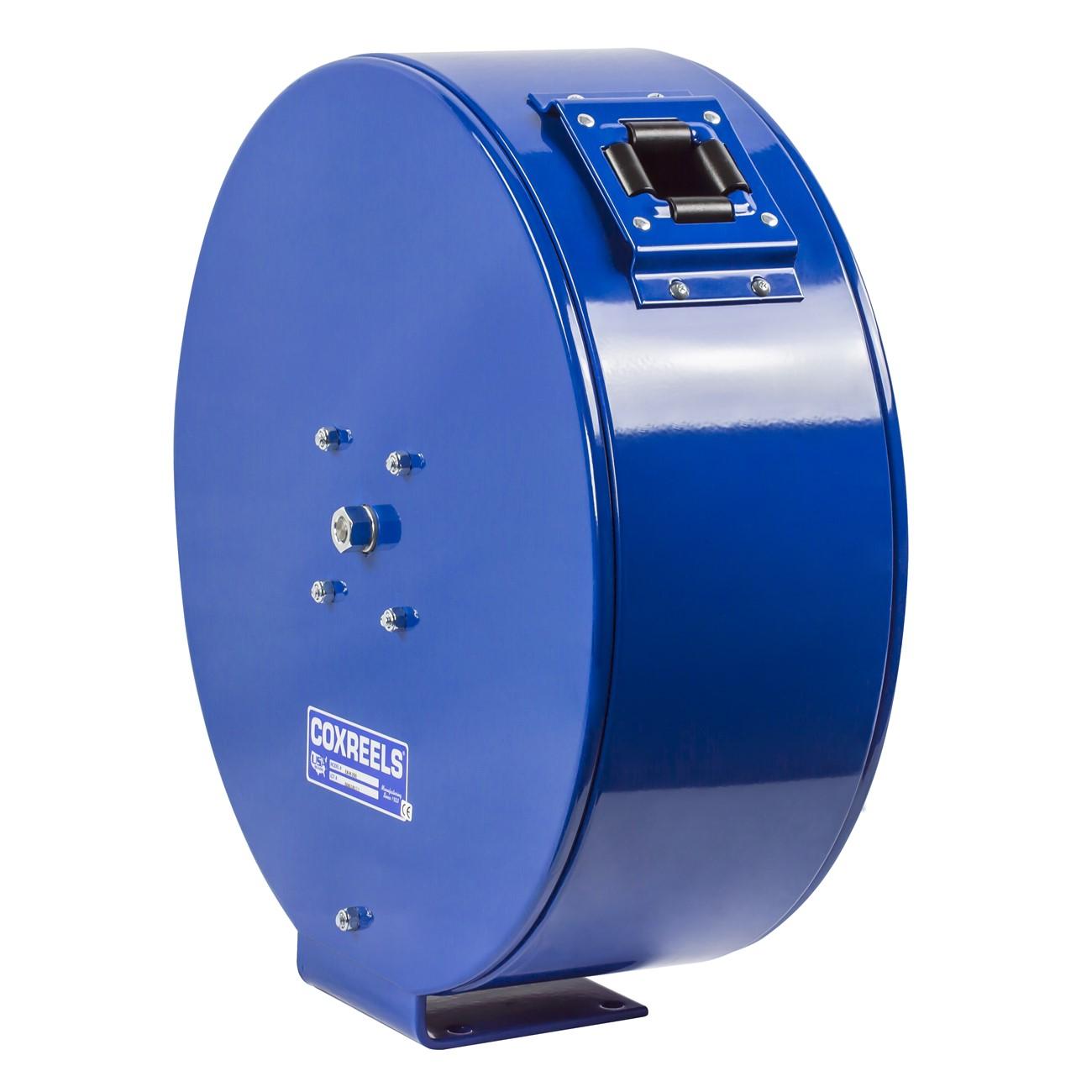

Coxreels ENHL-N-350 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENHL-N-350 is an enclosed, spring-driven hose reel designed for trade professionals who need reliable hose management in demanding work environments. Built around a heavy-gauge steel three-piece casing with a powder coat finish, this reel accommodates 3/8 inch ID hose up to 50 feet in length. The enclosure protects the reel mechanism, hose, and internal components from dirt, moisture, and physical damage. A machined zinc-plated steel 90-degree full-flow NPT swivel allows for straightforward seal maintenance without removing the reel from its mount. The cartridge-style spring motor is lubricated, enclosed, and easily removable for routine service.

The ENHL-N-350 suits plumbing, HVAC, and general industrial service applications where a clean, organized appearance is required alongside functional hose storage. The enclosed design is well suited to shop environments, service bays, and job sites where hose protection and a professional look matter. It is typically installed by licensed plumbers, HVAC technicians, and industrial maintenance professionals. No specific compatible model numbers or system families were stated in the available product data.

Key Features

• Heavy-gauge steel three-piece casing with CPC powder coat finish resists chips, rust, and corrosion
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal service without dismounting the reel
• Removable enclosed cartridge-style spring motor simplifies maintenance access
• CNC robotically spun and ribbed discs with rolled edges for added strength and hose protection
• Sturdy single-pedestal steel base with no-weld support post and exclusive dual-axle hub support
• Multi-position lock ratchet mechanism and lubricated precision bearings for controlled hose retraction

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel suitable for 3/8 inch ID hose applications in plumbing, HVAC, and general industrial service environments.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified industrial maintenance professional. Shut off the fluid supply and depressurize the hose line completely before mounting or servicing the reel. Secure the single-pedestal base to a structurally sound surface using appropriate fasteners. Refer to applicable local plumbing codes and the manufacturer installation guide for connection and mounting requirements.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 11/16 inch
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Casing: Heavy-gauge steel, three-piece enclosed
• Finish: CPC powder coat
• Swivel Material: Zinc-plated steel
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 68 pounds
• UPC: 674255715479

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENHL-N-350
