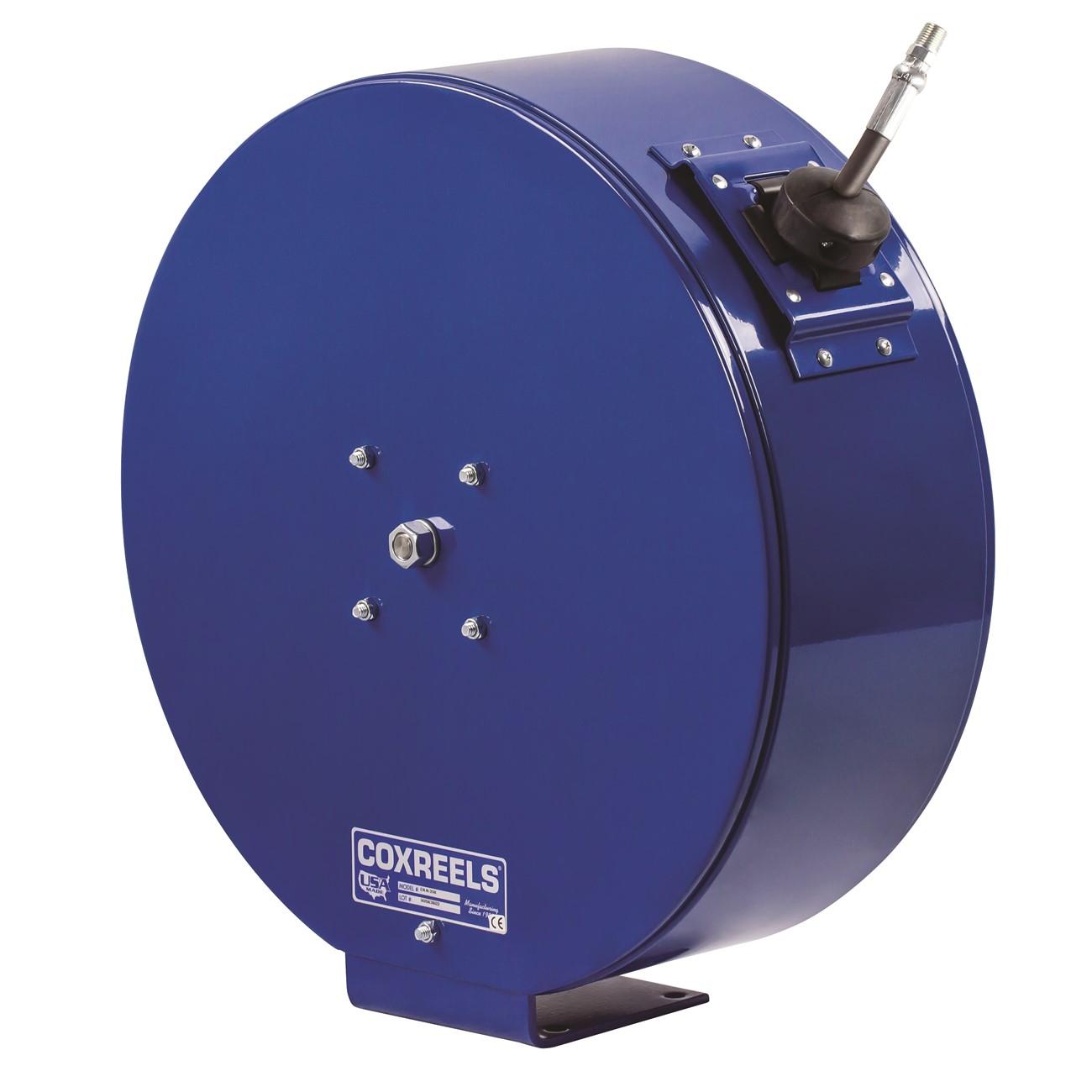

Coxreels ENH-N-350 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENH-N-350 is an enclosed, spring-driven hose reel designed for demanding trade environments where hose protection and a clean installation appearance are both required. The reel houses a 3/8-inch ID hose up to 50 feet in length inside a heavy-gauge, powder-coated steel three-piece casing that shields the internal components from contaminants and physical damage. A machined zinc-plated steel swivel with full-flow NPT connection handles fluid transfer, while CNC robotically spun and ribbed discs with rolled edges add structural strength. Licensed plumbers, HVAC technicians, and industrial maintenance crews install this reel where a self-retracting, enclosed hose management solution is needed.

The ENH-N-350 is suited for workshops, service bays, and job sites where a professional appearance and organized hose routing are priorities. The enclosed casing design makes it appropriate for both indoor and light commercial environments. The adjustable hose roller guide and solid rubber hose stop allow for straightforward hose management during installation and daily use. The spring-driven retraction mechanism supports consistent, hands-free hose return after each use.

Key Features

• Heavy-gauge steel three-piece casing with CPC powder coat finish resists chips, rust, and environmental exposure
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance without removing the reel from its mount
• Lubricated, enclosed cartridge-style spring motor is removable for safe and convenient servicing
• CNC robotically spun and ribbed discs with rolled edges provide hose protection and operator safety
• Solid one-piece steel base with single pedestal design and no-weld support post for maximum stability
• Multi-position lock ratchet mechanism with adjustable solid rubber hose stop and lubricated precision bearings

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel for use with 3/8-inch ID hose up to 50 feet in length; intended for fluid transfer applications requiring a self-retracting, enclosed reel in trade or commercial service environments.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or industrial mechanics familiar with fluid-line routing and mounting hardware. Shut off fluid supply and depressurize the hose line completely before mounting or servicing the reel. The three-piece casing is designed for tool-accessible disassembly to simplify wall or pedestal mounting. Follow applicable local plumbing codes and manufacturer torque guidance for swivel and hose end fittings.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length: 50 feet
• Drive Type: Spring driven
• Casing Material: Steel
• Finish: CPC powder coat
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 80 pounds
• UPC: 674255715370

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENH-N-350
