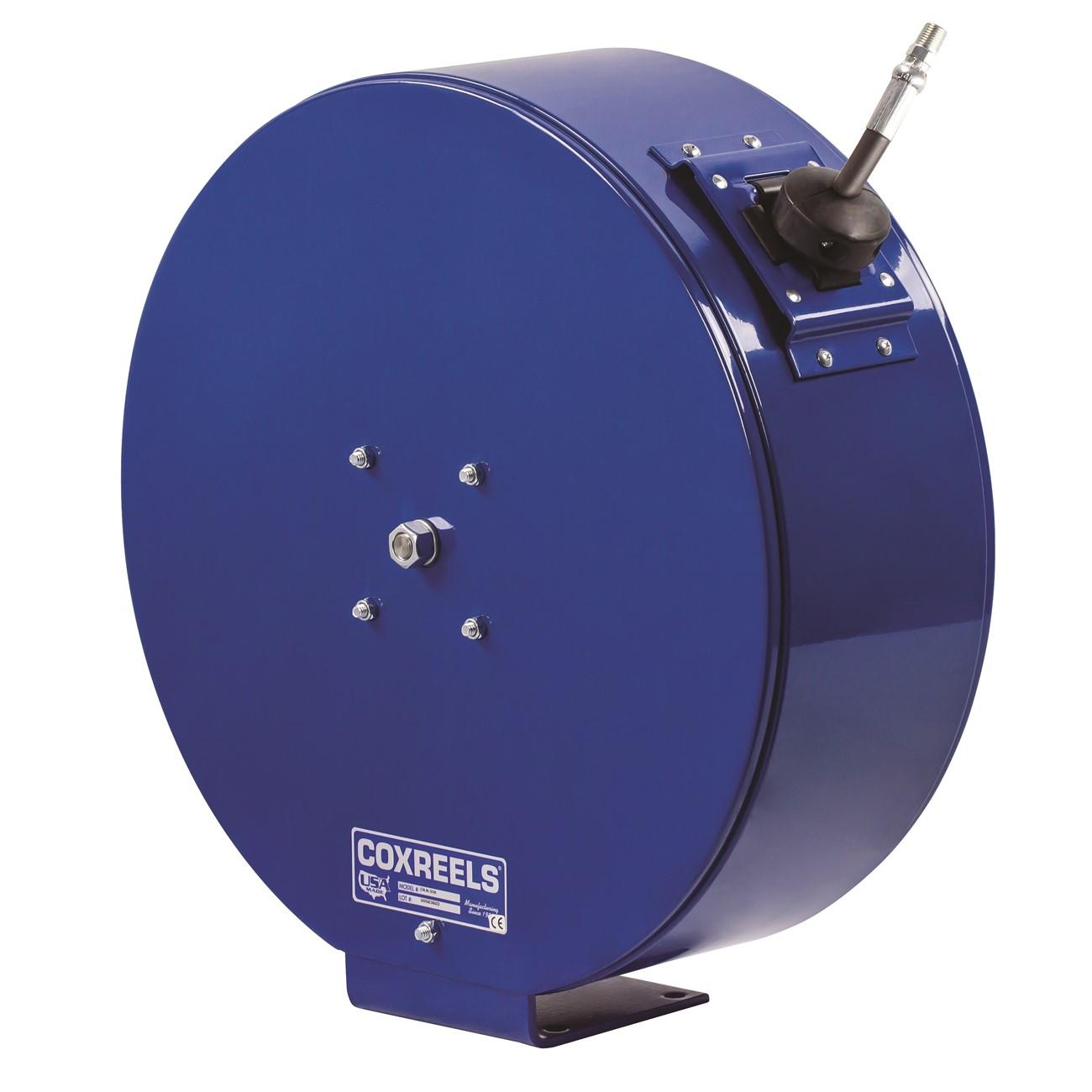

Coxreels ENH-N-160 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS ENH-N-160 is an enclosed, spring-driven hose reel built for trade and industrial environments where hose protection and a clean installation are both required. The reel features a heavy-gauge powder-coated steel three-piece casing that shields internal components from dust, debris, and moisture, extending the working life of both the hose and the reel mechanism. It accepts hose with a 1/4 inch inner diameter and 9/16 inch outer diameter, with a 60-foot hose capacity. The spring-driven retraction system uses a cartridge-style motor that is lubricated, enclosed, and fully removable for field maintenance without dismounting the reel. Licensed HVAC, plumbing, and mechanical contractors install this unit in commercial and industrial service bays, maintenance shops, and professional work environments.

The ENH-N-160 is suited for residential and light commercial service applications where compressed air, water, or compatible fluid lines need to be managed cleanly and retracted automatically. The enclosed casing makes it appropriate for clean rooms, automotive service bays, and professional contractor installations where exposed reels are not acceptable. The three-piece casing design allows for straightforward assembly and disassembly, reducing downtime during routine maintenance. The adjustable hose roller guide and multi-position lock ratchet mechanism support controlled hose deployment and positioning across a range of service scenarios.

Key Features

• Heavy-gauge steel three-piece enclosure with CPC powder coat finish resists chips, rust, and UV exposure
• Cartridge-style spring motor is lubricated, enclosed, and removable without unmounting the reel
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and single pedestal support post with dual axle support for maximum stability
• Adjustable solid rubber hose stop and multi-position lock ratchet mechanism for controlled hose deployment

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel compatible with 1/4 inch ID hose lines in compressed air, water, and similar fluid delivery applications typical of commercial and industrial service installations.

Installation Notes

Installation is performed by qualified mechanical contractors or experienced service technicians. Shut off the air or fluid supply line and depressurize the system fully before mounting or servicing the reel. Mount to a structurally adequate surface using fastener hardware rated for the reel weight and expected hose tension load. Consult applicable OSHA and local mechanical codes for hose reel mounting requirements in commercial work environments.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 9/16 inch
• Hose Capacity: 60 feet
• Enclosure Material: Steel with CPC powder coat finish
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 85 pounds
• Drive Type: Spring driven
• UPC: 674255715349

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENH-N-160
