Coxreels ENH-N-150 Enclosed Spring Driven Hose Reel

Product Description

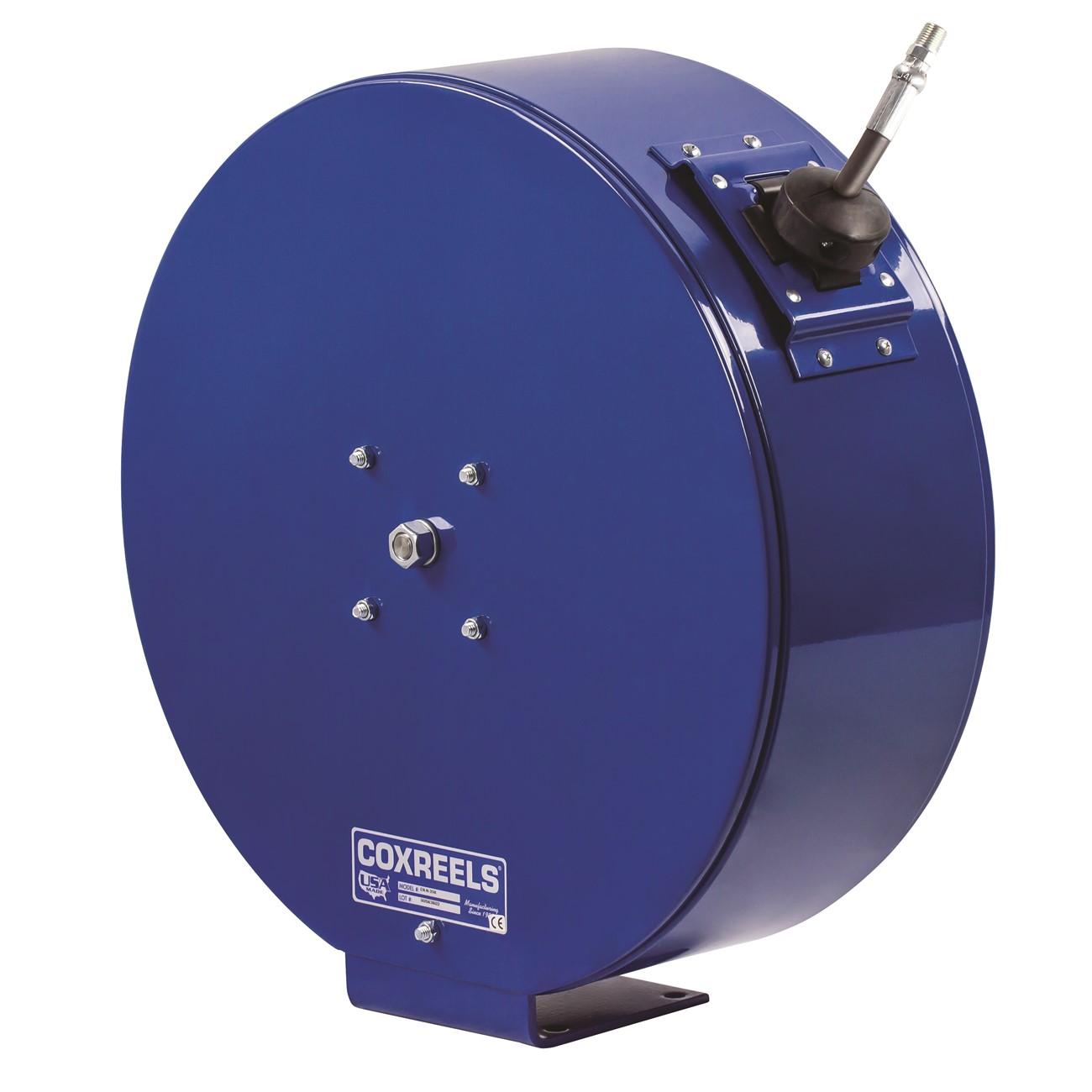

The COXREELS ENH-N-150 is an enclosed, spring-driven hose reel built for trade environments where hose protection and a clean installation are both priorities. The reel is housed in a heavy-gauge, three-piece powder-coated steel casing that shields internal components from dirt, moisture, and physical damage. It accepts a 1/4-inch ID, 9/16-inch OD hose up to 50 feet in length. A machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount. The cartridge-style spring motor is lubricated, enclosed, and fully removable for field maintenance. Lubricated precision bearings and a multi-position lock ratchet mechanism complete the core assembly.

The ENH-N-150 is suited for industrial and commercial service bays, maintenance facilities, and professional work environments where a tidy, enclosed reel installation is required. Typical applications include pneumatic tool supply lines, fluid transfer, and wash-down hose management in shops, fleet service facilities, and manufacturing floor installations. The enclosed design keeps hose coiled and protected when not in use, reducing wear and extending service life in high-cycle environments.

Key Features

• Three-piece heavy-gauge steel casing with CPC powder coat finish for corrosion and chip resistance
• Machined zinc-plated steel 90-degree full-flow NPT swivel — no reel removal required for hose service
• Removable lubricated cartridge-style spring motor for safe, convenient maintenance
• CNC robotically spun and ribbed steel discs with rolled edges for strength and hose protection
• Single pedestal solid one-piece steel base with no-weld construction for maximum stability
• Adjustable solid rubber hose stop, adjustable hose roller guide, and multi-position lock ratchet mechanism

Compatibility

Designed for use with 1/4-inch ID, 9/16-inch OD hose up to 50 feet in length in spring-driven enclosed reel applications.

Installation Notes

Installation is typically performed by a qualified maintenance technician or industrial equipment installer. Shut off and depressurize the supply line completely before mounting or servicing the reel. The three-piece casing is designed for straightforward assembly and disassembly, which simplifies both initial installation and routine maintenance access. Follow applicable OSHA and facility safety codes for pressurized hose reel installations.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Casing Material: Steel
• Finish: CPC powder coat
• Swivel Material: Zinc plated steel
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 79 pounds
• UPC: 674255715332

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: ENH-N-150
