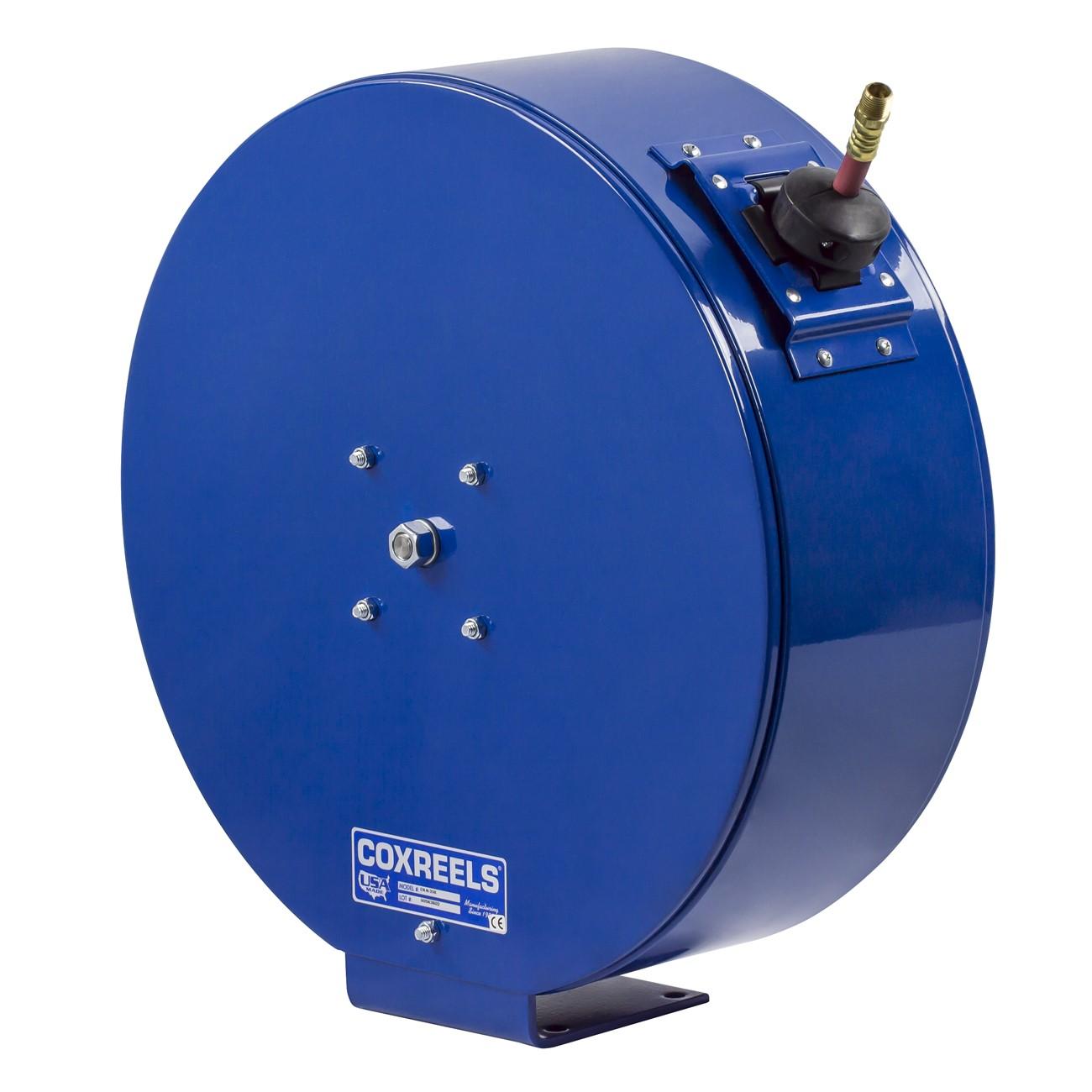

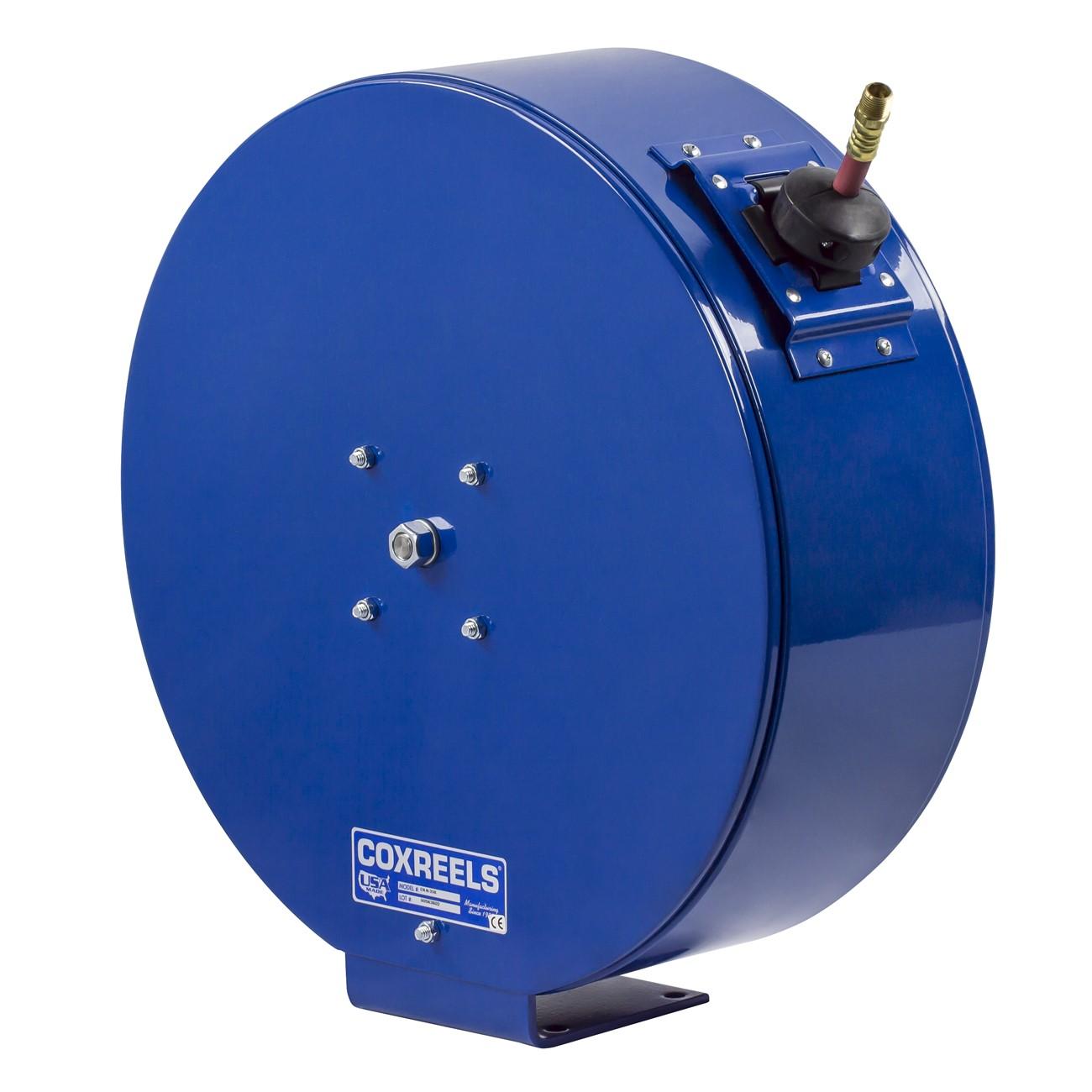

Coxreels EN-N-450 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EN-N-450 is an enclosed, spring-driven hose reel designed for demanding trade environments where hose protection and a clean appearance are both priorities. The reel is housed in a heavy-gauge steel 3-piece powder-coated casing that shields internal components from dirt, moisture, and physical damage. The spring-driven retraction mechanism automatically rewinds the hose after each use. At 69 pounds, this is a substantial, mount-grade unit built for stationary installation in shops, service bays, and industrial workspaces. A machined brass 90-degree full-flow NPT swivel allows hose connection and seal maintenance without removing the reel from its mount.

The EN-N-450 is suited for professional plumbing, HVAC, and industrial service applications where a fixed hose reel with enclosed protection is required. The enclosed casing makes it a practical fit for customer-facing service environments, fleet maintenance facilities, and commercial shops where a tidy, professional appearance is expected alongside reliable hose management. It accommodates a 1/2 inch inner diameter hose up to 50 feet in length, making it appropriate for a wide range of fluid-transfer and air-supply service tasks performed by licensed tradespeople.

Key Features

• Enclosed powder-coated steel 3-piece casing protects hose and internal components from the elements
• Spring-driven retraction automatically rewinds hose after use
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without dismounting the reel
• Cartridge-style lubricated motor is fully removable for maintenance access
• CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Multi-position lock ratchet mechanism, adjustable solid rubber hose stop, and lubricated precision bearings included
• Solid one-piece steel base with single pedestal design and no-weld construction for maximum stability

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel for stationary installation in residential, commercial, and industrial service environments requiring a 1/2 inch ID hose connection.

Installation Notes

Installation should be performed by a qualified tradesperson following applicable facility and plumbing codes. Shut off the fluid or air supply completely before mounting or servicing the reel. The 3-piece casing is designed for straightforward assembly and disassembly to simplify both initial installation and routine maintenance. Verify that the mounting surface and fasteners are rated to support the weight and operational load of the reel.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Casing: Enclosed heavy-gauge steel with CPC powder coat finish
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 69 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EN-N-450
