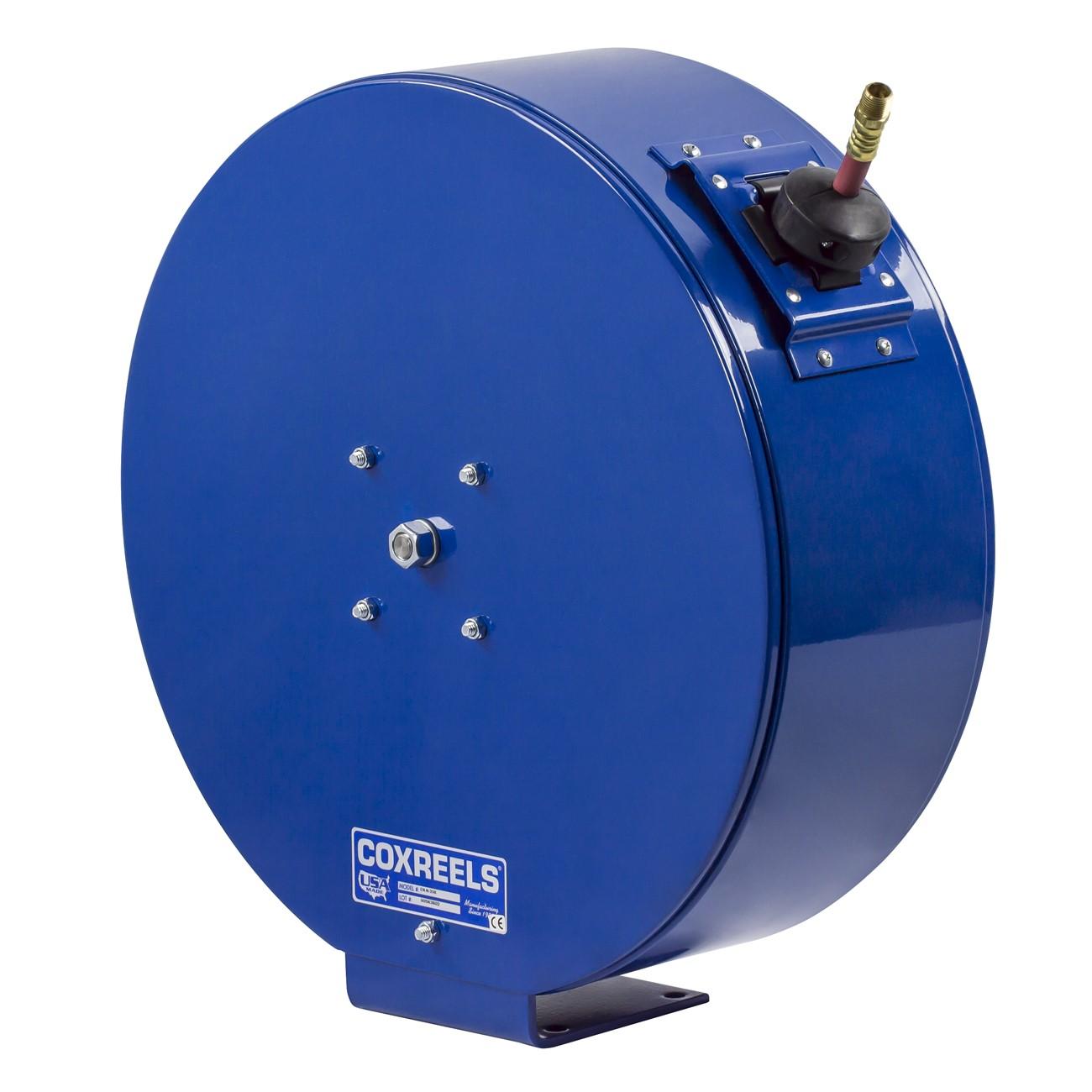

Coxreels EN-N-435 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EN-N-435 is an enclosed, spring-driven hose reel designed for professional trade environments where hose protection and a clean installation appearance are both priorities. The unit features a heavy-gauge, powder-coated steel 3-piece casing that shields internal components from moisture, debris, and physical damage, extending the service life of the reel and hose assembly. It accommodates a hose with a 1/2 inch ID and 3/4 inch OD up to 35 feet in length. The spring-driven retraction mechanism and multi-position lock ratchet give technicians consistent, controlled hose management at the point of use. At 64 pounds, it is a substantial, permanently mounted unit suited for fixed service bays, mechanical rooms, and job-site installations.

The EN-N-435 is built for commercial and industrial applications where a contained hose reel is preferable to open-frame designs. Typical installations include automotive service facilities, manufacturing floors, fleet maintenance shops, and HVAC or plumbing service vehicles with dedicated reel mounts. The enclosed casing keeps the reel presentable in customer-facing environments and reduces the risk of hose damage from incidental contact. Installers working in environments with exposure to dirt, moisture, or chemical splash will benefit from the corrosion-resistant CPC powder coat finish and the sealed cartridge motor design.

Key Features

• Heavy-gauge steel 3-piece casing with CPC powder coat finish resists chipping, rust, and corrosion
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance without removing the reel from its mount
• Lubricated, enclosed cartridge-style spring motor is removable for field maintenance
• CNC robotically spun and ribbed discs with rolled edges for structural strength and hose protection
• Multi-position lock ratchet mechanism with adjustable solid rubber hose stop for controlled extension and retraction
• Single pedestal steel base with support post, no-weld construction, and dual axle support for maximum mounting stability

Compatibility

Designed as an OEM-style fit within the COXREELS EN Series enclosed spring-driven hose reel product line, intended for hoses with a 1/2 inch ID and 3/4 inch OD at lengths up to 35 feet.

Installation Notes

Installation is typically performed by a licensed plumber, HVAC technician, or qualified millwright depending on the fluid service application. Shut off and depressurize the supply line before connecting the swivel inlet or servicing any internal components. The 3-piece casing disassembles without special tooling for straightforward mounting and maintenance access. Verify that the mounting surface and fasteners are rated for the combined weight of the reel and a fully loaded hose before securing the base.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Maximum Hose Length: 35 feet
• Drive Type: Spring driven
• Casing Material: Heavy-gauge steel with CPC powder coat finish
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 64 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EN-N-435
