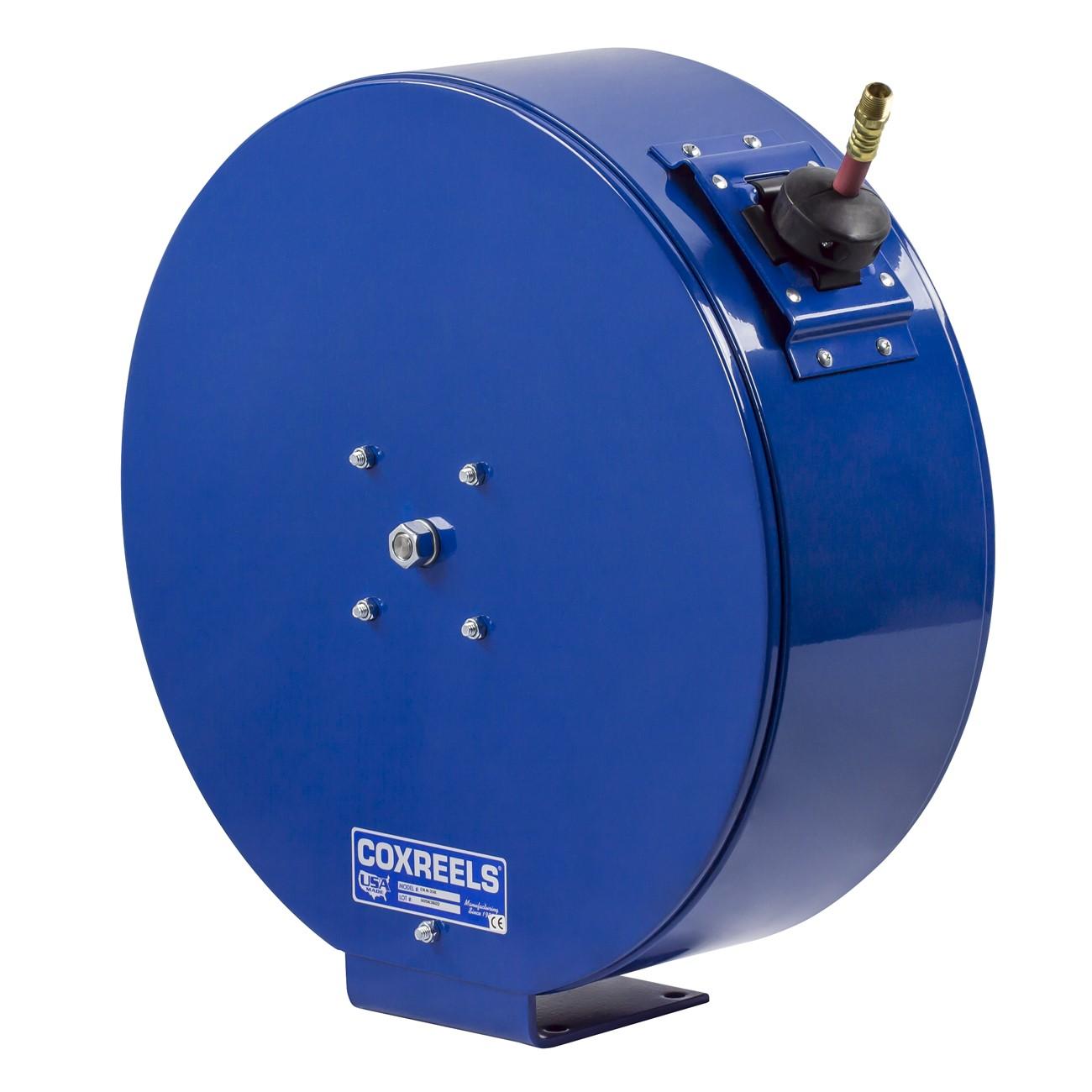

Coxreels EN-N-425 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EN-N-425 is an enclosed, spring-driven hose reel designed for demanding work environments that require a clean, professional appearance alongside durable hose management. The heavy-gauge steel, powder-coated 3-piece casing shields internal components from dirt, moisture, and general wear, extending the service life of both the reel and the hose. It accommodates hose with a 1/2 inch ID and 3/4 inch OD up to 25 feet in length. The spring-driven retraction mechanism and multi-position lock ratchet give technicians fast, controlled hose deployment and retrieval. Licensed professionals in HVAC, plumbing, and general mechanical service install this reel in shops, service vehicles, and fixed utility stations.

The EN-N-425 suits residential and light commercial service applications where hose organization, cleanliness, and component protection are priorities. Its enclosed casing makes it well suited for indoor service bays, equipment rooms, and anywhere a neat hose management solution is required. The adjustable hose roller guide and solid rubber hose stop help manage hose routing and protect the hose jacket during daily use. The 3-piece casing design simplifies installation and routine maintenance without requiring full disassembly of the mounting.

Key Features

• Enclosed heavy-gauge steel 3-piece casing with CPC chip-resistant, rust-inhibiting powder coat finish for environmental protection
• Spring-driven retraction with multi-position lock ratchet mechanism for controlled hose deployment
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Lubricated, enclosed cartridge-style motor is removable for safe, convenient maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel base and support post with no-weld single pedestal design and dual axle support system for maximum stability

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel replacement or new installation for 1/2 inch ID hose assemblies up to 25 feet in length in trade service and shop environments.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and fluid system connections. Shut off all fluid supply and depressurize the line before connecting or disconnecting hose fittings. Secure the reel to a structurally sound surface using appropriately rated fasteners for the mounting substrate. Verify all NPT swivel connections are properly sealed before returning the system to service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Casing Material: Heavy-gauge steel with CPC powder coat finish
• Swivel Material: Solid brass
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 63 pounds
• UPC: 674255715257

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EN-N-425
