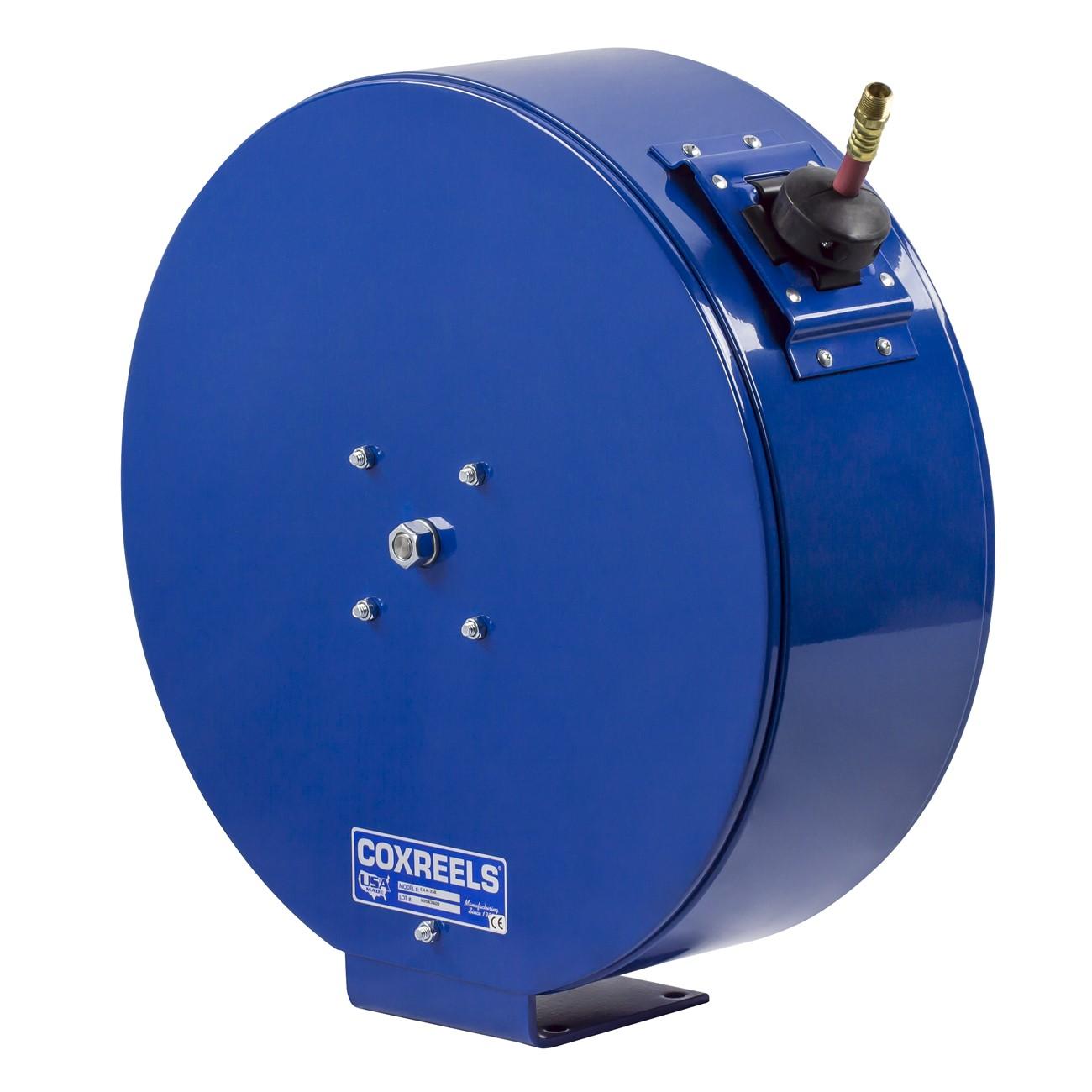

Coxreels EN-N-335 Enclosed Spring Driven Hose Reel

Product Description

The COXREELS EN-N-335 is an enclosed, spring-driven hose reel built for trade environments where hose protection and a clean installation appearance are both required. The reel accepts 3/8 inch ID hose up to 35 feet in length and retracts automatically via a cartridge-style spring motor. A heavy-gauge powder-coated steel three-piece casing shields internal components from moisture, debris, and physical damage, extending service life for the reel, hose, and fittings. At 50 pounds, the unit is built for stationary mounting in shops, service bays, and job-site facilities. A machined brass 90-degree full-flow NPT swivel allows seal service and hose changes without removing the reel from its mount.

The EN-N-335 is suited for residential and light commercial service environments where a tidy, professional appearance is expected alongside reliable hose retraction. Typical applications include automotive service bays, HVAC equipment rooms, plumbing shops, and industrial facilities requiring air, water, or fluid delivery at a fixed station. The enclosed casing makes this reel appropriate for installations exposed to dust, overspray, or general shop contamination. A solid one-piece steel base with single pedestal support and dual axle support provides stable floor or wall mounting.

Key Features

• Enclosed three-piece heavy-gauge steel casing with CPC powder coat finish resists chips, rust, and environmental exposure
• Cartridge-style spring motor is fully lubricated and removable for maintenance without special tooling
• Machined solid brass 90-degree full-flow NPT swivel allows hose and seal service without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position lock ratchet mechanism with adjustable solid rubber hose stop for controlled payout
• Adjustable hose roller guide integrated into the casing for smooth retraction and extended hose life

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel for stationary mounting applications requiring 3/8 inch ID hose up to 35 feet in length.

Installation Notes

Installation is typically performed by a qualified plumber, HVAC technician, or industrial maintenance mechanic. Shut off the fluid supply line and depressurize the system before connecting or disconnecting hose or swivel fittings. Mount the reel to a structurally sound surface capable of supporting the unit weight plus hose load. Follow applicable local codes and manufacturer torque guidance for all NPT threaded connections.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Length: 35 feet
• Drive Type: Spring driven
• Casing: Heavy-gauge steel with CPC powder coat finish
• Swivel: Solid brass 90-degree full-flow NPT
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 50 pounds
• UPC: 674255715196

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EN-N-335
