Coxreels EN-N-125 Enclosed Spring Driven Hose Reel

Product Description

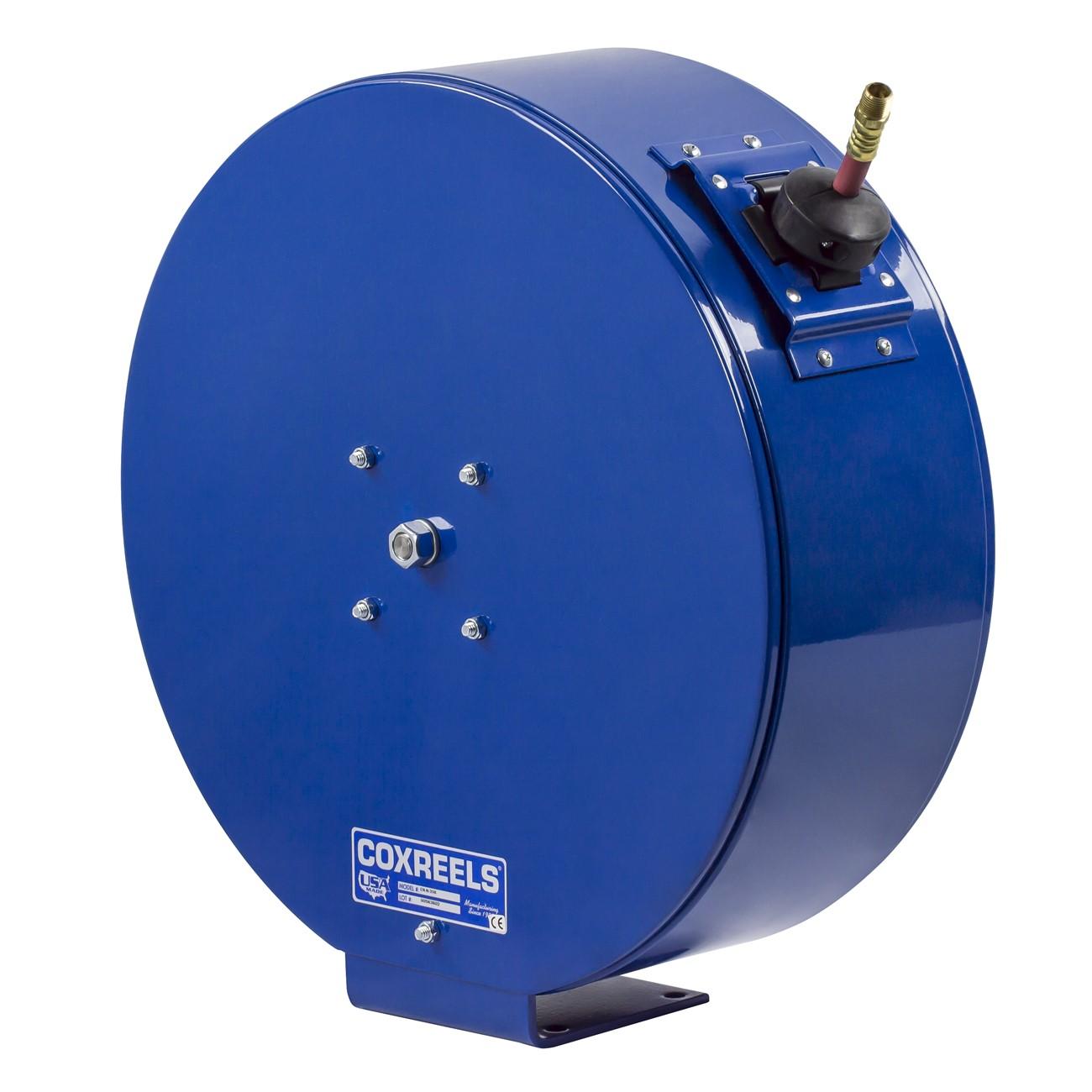

The COXREELS EN-N-125 is an enclosed, spring-driven hose reel designed for trade environments that require a clean, professional installation. The reel is housed in a heavy-gauge, powder-coated steel 3-piece casing that protects internal components from dirt, moisture, and physical damage. It accepts hose with a 1/4 inch inner diameter and accommodates up to 25 feet of hose. The spring-return motor is a cartridge-style unit, lubricated and enclosed for reliable operation and straightforward maintenance. This reel is installed by HVAC technicians, plumbers, mechanics, and other trade pros who need a tidy, durable point-of-use hose management solution.

The EN-N-125 fits residential and light commercial shop environments, service bays, utility rooms, and trade workspaces where hose retraction and storage need to be automatic and contained. The enclosed casing keeps the reel and hose protected when not in use, making it well-suited for dusty or high-traffic areas. The 3-piece casing design simplifies mounting and periodic maintenance without requiring full disassembly or removal from the mounting surface.

Key Features

• Enclosed heavy-gauge steel 3-piece casing with CPC powder coat finish for corrosion and chip resistance
• Cartridge-style spring motor is lubricated, enclosed, and removable for safe field maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows hose replacement without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Single pedestal design with solid one-piece steel base and support post, no-weld construction for maximum stability
• Includes adjustable solid rubber hose stop, multi-position lock ratchet mechanism, adjustable hose roller guide, and lubricated precision bearings

Compatibility

Designed as an OEM-style enclosed spring-driven hose reel for use with 1/4 inch ID hose up to 25 feet in length in trade and light commercial applications.

Installation Notes

Installation is performed by qualified trade professionals. Shut off and depressurize the supply line before mounting or connecting the reel. Secure the single-pedestal base to a structurally sound surface using fasteners rated for the load. The 3-piece casing can be removed independently for access during installation or service without disturbing the reel mount.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 1/2 inch
• Hose Length: 25 feet
• Reel Length: 20.5 inches
• Reel Width: 10.5 inches
• Reel Height: 22 inches
• Weight: 51 pounds
• Casing Material: Heavy-gauge steel with CPC powder coat finish
• Swivel Material: Solid brass
• Drive Type: Spring driven
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EN-N-125
