Coxreels E-MPL-450 Spring Hose Reel 1/2 in 50 Ft

Product Description

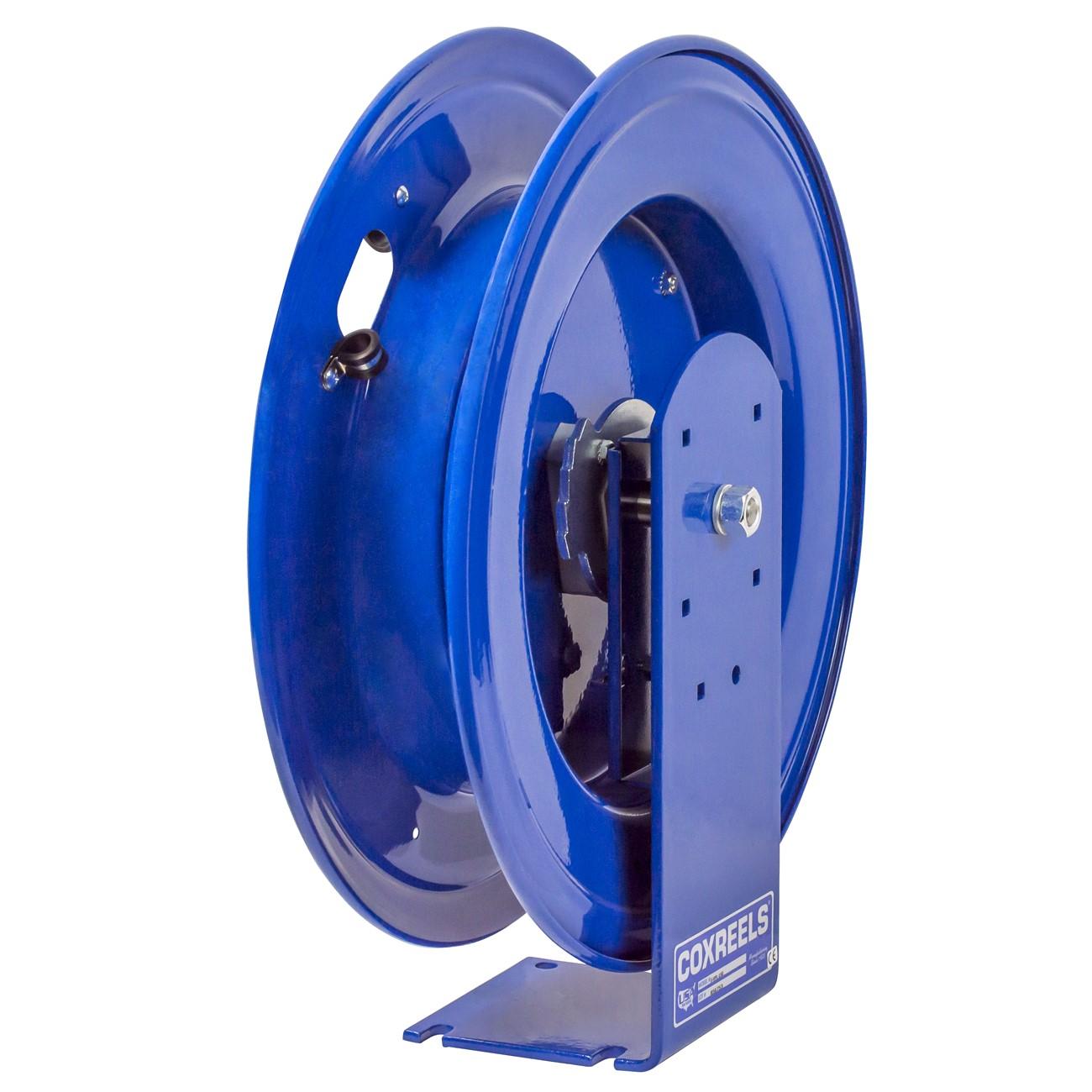

The COXREELS E-MPL-450 is a spring-driven, retractable hose reel built for professional multi-reel bank installations. Part of the COXREELS E Series, it features an expandable, interlocking cabinet design that allows any number of spring-driven reel assemblies to be combined in a single organized system. The reel handles a 1/2 inch ID hose up to 50 feet in length and is built around a machined solid brass 90-degree full-flow NPT swivel, a removable cartridge-style motor, and heavy-duty CNC-spun ribbed discs with rolled edges. At 49 pounds, it is a substantial, commercial-grade unit suited for installation by licensed tradespeople in shop, fleet, or service bay environments.

The E-MPL-450 is designed for professional multimedia delivery systems where multiple reels must be housed in a clean, organized cabinet arrangement. The interlocking metal cabinet system is expandable, making it well suited for automotive service shops, industrial maintenance facilities, and commercial HVAC or plumbing service operations that require multiple hose drops from a single wall or pedestal mount. The sturdy single-pedestal steel base uses a no-weld, one-piece construction with a dual axle support system for maximum stability under repeated daily use.

Key Features

• Spring-driven retractable mechanism with multi-position lock ratchet for controlled hose retrieval
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is fully removable for maintenance without system disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Expandable interlocking metal cabinet design accommodates any number of reel assemblies in a single bank system
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and lubricated precision bearings

Compatibility

Designed for use within the COXREELS E Series expandable multiple-bank cabinet system; compatible with other E Series reel assemblies for multi-reel installations requiring a 1/2 inch ID hose configuration up to 50 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and pneumatic or fluid delivery systems. Shut off all air or fluid supply lines and relieve system pressure before mounting or servicing the reel. Secure the pedestal base to a structurally sound surface using appropriate fasteners per the manufacturer instructions. Refer to local mechanical and safety codes for hose reel placement requirements in commercial service environments.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Length: 50 feet
• Drive Type: Spring retractable
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 49 pounds
• Swivel Material: Solid brass
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Base Construction: One-piece steel, no-weld
• UPC: 674255715080

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-MPL-450
