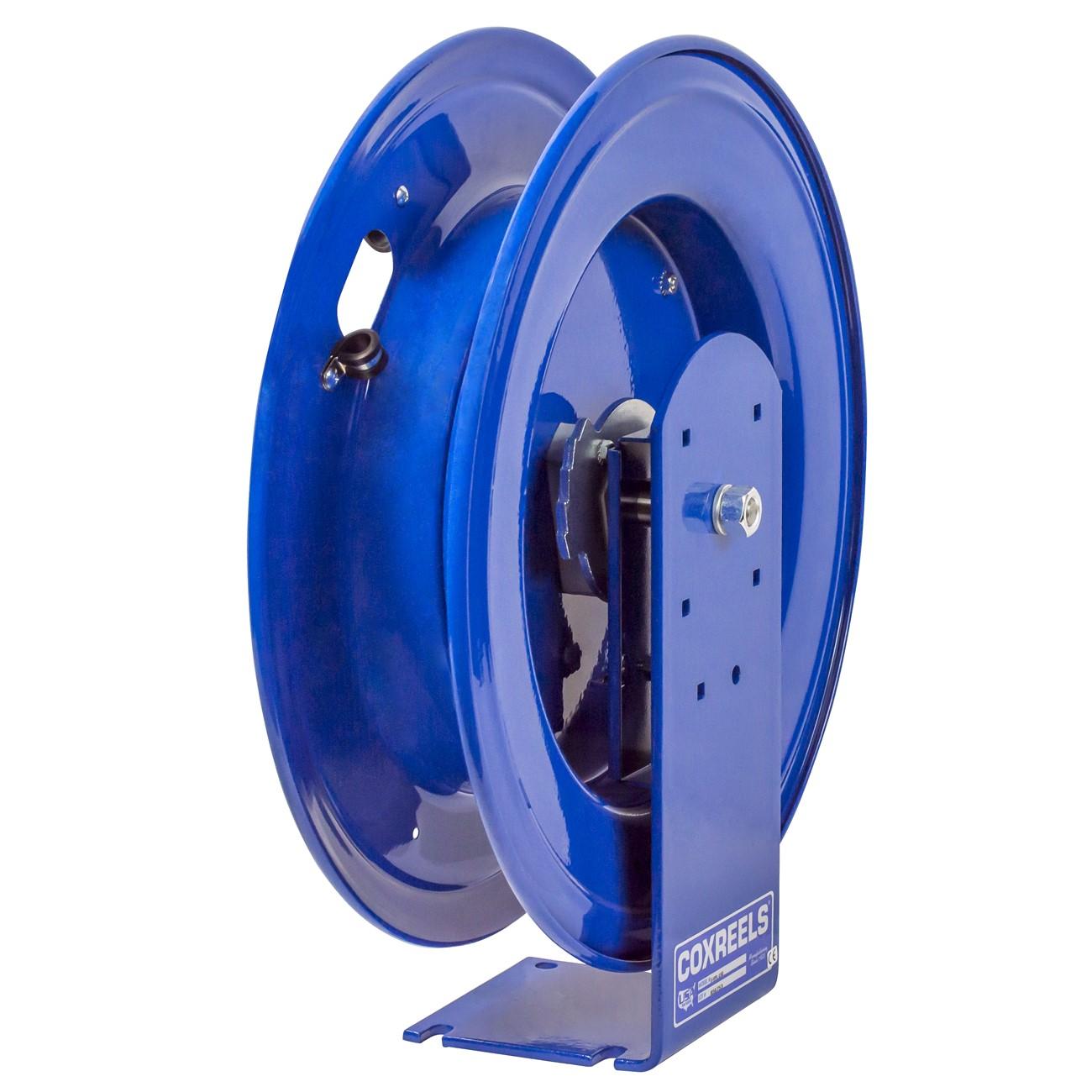

Coxreels E-MPL-430 Spring Driven Hose Reel 30 Ft

Product Description

The COXREELS E-MPL-430 is a spring-driven hose reel built for the E Series expandable multiple bank cabinet system. Designed for multimedia fluid delivery in professional shop, service bay, and industrial environments, this reel accepts 1/2 inch ID hose up to 30 feet in length. The unit weighs 39 pounds and measures 20.5 inches long by 10.5 inches wide by 22 inches tall. A machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount. Licensed technicians and shop maintenance crews are the primary installers of this system.

The E-MPL-430 is intended for use in professional service environments where organized, centralized hose delivery is required. It fits into COXREELS interlocking expandable metal cabinets, allowing multiple reel assemblies to be combined into a single bank system. Typical applications include automotive service bays, industrial maintenance facilities, and multi-bay shops that require a clean, professional appearance alongside reliable hose management. The spring-driven retraction mechanism keeps hose tidy and reduces trip hazards on the shop floor.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel — serviceable without dismounting the reel
• Lubricated enclosed cartridge-style motor is removable for maintenance without special tooling
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel base and support post with no-weld construction for maximum stability, featuring dual axle support
• Designed for interlocking expandable metal cabinet bank systems — scalable to any number of reel assemblies required
• CPC powder coat finish, adjustable solid rubber hose stop, multi-position lock ratchet mechanism, and lubricated precision bearings

Compatibility

Designed for use with COXREELS E Series interlocking expandable metal cabinet bank systems. Accepts 1/2 inch ID hose up to 30 feet. Consult COXREELS documentation to confirm cabinet and reel assembly combinations for specific bank configurations.

Installation Notes

Installation is typically performed by qualified maintenance technicians or shop equipment installers. Depressurize all connected fluid lines and shut off the fluid supply before mounting, connecting, or servicing the reel. Secure the cabinet and base assembly to a structurally sound wall or floor surface per the manufacturer mounting instructions. Follow applicable OSHA and local facility codes for pressurized fluid handling equipment in commercial and industrial environments.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 30 feet
• Drive Type: Spring driven
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 39 pounds
• Swivel Material: Solid brass
• Base Material: Steel
• Finish: CPC powder coat
• UPC: 674255715066

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-MPL-430
