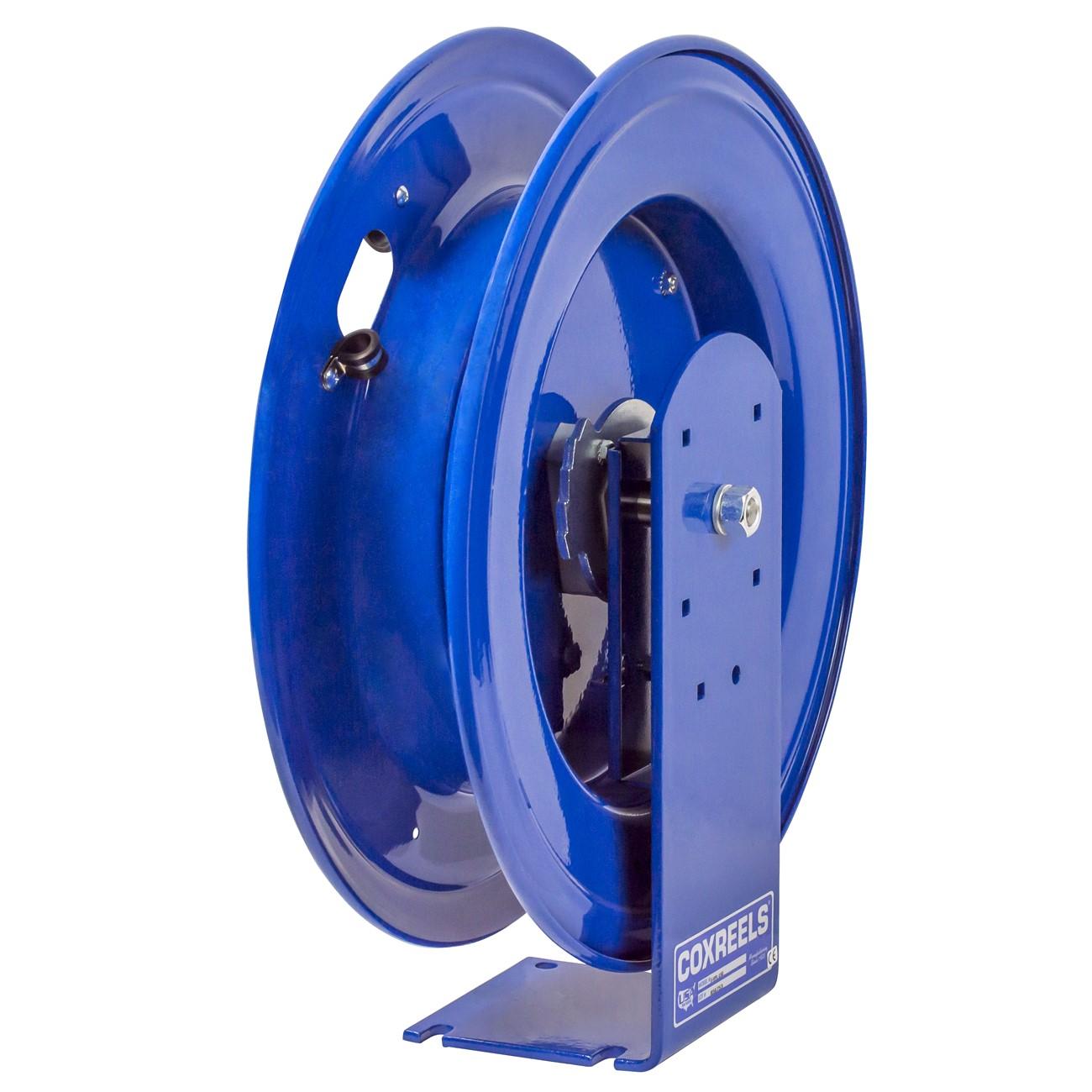

Coxreels E-MPL-330 Spring Driven Hose Reel 3/8 in 30 Ft

Product Description

The COXREELS E-MPL-330 is a spring-driven hose reel from the E Series expandable bank system, designed for professional multimedia delivery in workshop, service bay, and multi-station shop environments. Built around a cartridge-style spring motor and CNC robotically spun steel discs, this reel accepts 3/8 inch ID, 5/8 inch OD hose up to 30 feet in length. The interlocking cabinet design allows multiple reel assemblies to be combined into a single organized bank system, making it a practical choice for shops requiring several reels in one clean installation. Licensed tradespeople and shop technicians handling air, fluid, or other media delivery lines are the primary installers.

The E-MPL-330 is suited for commercial and industrial shop environments where organized, expandable hose management is required. Its expandable cabinet system allows additional spring-driven reel assemblies to be added as service bays or media delivery points grow. The reel is appropriate for use in automotive service, HVAC, and general industrial settings where a durable, wall- or pedestal-mounted spring-return hose reel is needed. The single pedestal base with a solid one-piece steel support post provides stable floor or surface mounting in fixed service stations.

Key Features

• Spring-driven cartridge motor is lubricated, enclosed, and removable for maintenance without special tooling
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base and support post construction with no welds for maximum pedestal stability
• Expandable interlocking metal cabinet design supports multi-reel bank configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable rubber hose stop and multi-position lock ratchet mechanism

Compatibility

Designed for use within the COXREELS E Series expandable multiple bank cabinet system, accepting 3/8 inch ID hose up to 30 feet in length. Compatible reel assemblies can be added to the interlocking cabinet bank as needed for expanded service configurations.

Installation Notes

Installation is typically performed by a qualified shop technician or mechanical contractor. Disconnect and depressurize all supply lines before mounting or servicing the reel assembly. The pedestal base should be secured to a level surface capable of supporting the loaded weight of the reel and hose. Follow applicable facility and local codes for media supply line connections at the swivel inlet.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Length Capacity: 30 feet
• Drive Type: Spring driven
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 39 pounds
• Base Material: Steel
• Finish: CPC powder coat
• Swivel Material: Solid brass
• UPC: 674255715028

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-MPL-330
