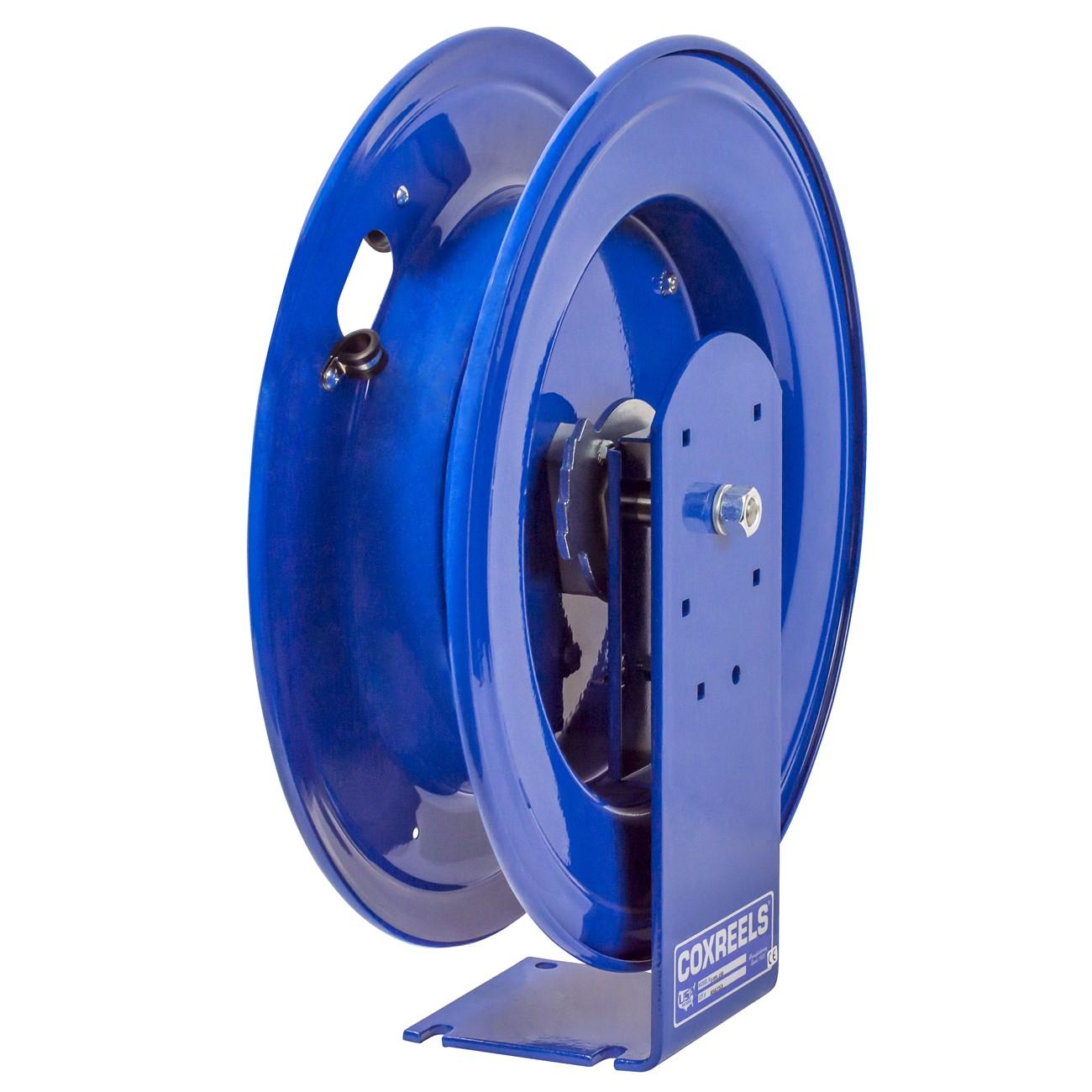

Coxreels E-LPL-350 Spring Retractable Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS E-LPL-350 is a spring-driven retractable hose reel from the E Series, designed for professional multimedia delivery and shop organization. It accepts 3/8 inch ID hose up to 50 feet in length and retracts automatically via a cartridge-style spring motor. The reel rides on precision bearings with a machined brass 90-degree full-flow NPT swivel that allows hose replacement without removing the unit from its mount. A multi-position locking ratchet holds the hose at any extended length. Licensed HVAC technicians, plumbers, and shop service professionals use this reel to route air, water, or low-pressure fluid lines cleanly and safely.

The E-LPL-350 is built for use in commercial shops, service bays, and professional trade environments where multiple reels may be deployed side by side. The E Series cabinet system is interlocking and expandable, so additional reel assemblies can be added without redesigning the mounting layout. This makes it well suited for multi-bay HVAC service shops, plumbing supply rooms, and electrical maintenance facilities where organized hose management across several work stations is required.

Key Features

• Cartridge-style spring motor is lubricated, enclosed, and removable for easy maintenance without full disassembly
• Machined solid brass 90-degree full-flow NPT swivel allows hose replacement with the reel still mounted
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel base and support post with no-weld construction for maximum pedestal stability
• Multi-position locking ratchet mechanism holds hose at any extension length
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and lubricated precision bearings

Compatibility

Designed for use with 3/8 inch ID hose up to 50 feet in length. Compatible with the COXREELS E Series interlocking expandable cabinet bank system for multi-reel professional installations.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and the applicable fluid system being serviced. Shut off and depressurize the supply line before connecting or disconnecting hose fittings at the swivel. Secure the reel base to a stable surface using appropriately rated fasteners before placing the system in service. Verify that hose ratings are compatible with the intended working pressure and fluid media before use.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Capacity: 50 feet
• Retraction Type: Spring driven
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Construction: One-piece steel, no-weld
• Finish: CPC powder coat, chip and rust resistant
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 40 pounds
• UPC: 674255714885

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-LPL-350
