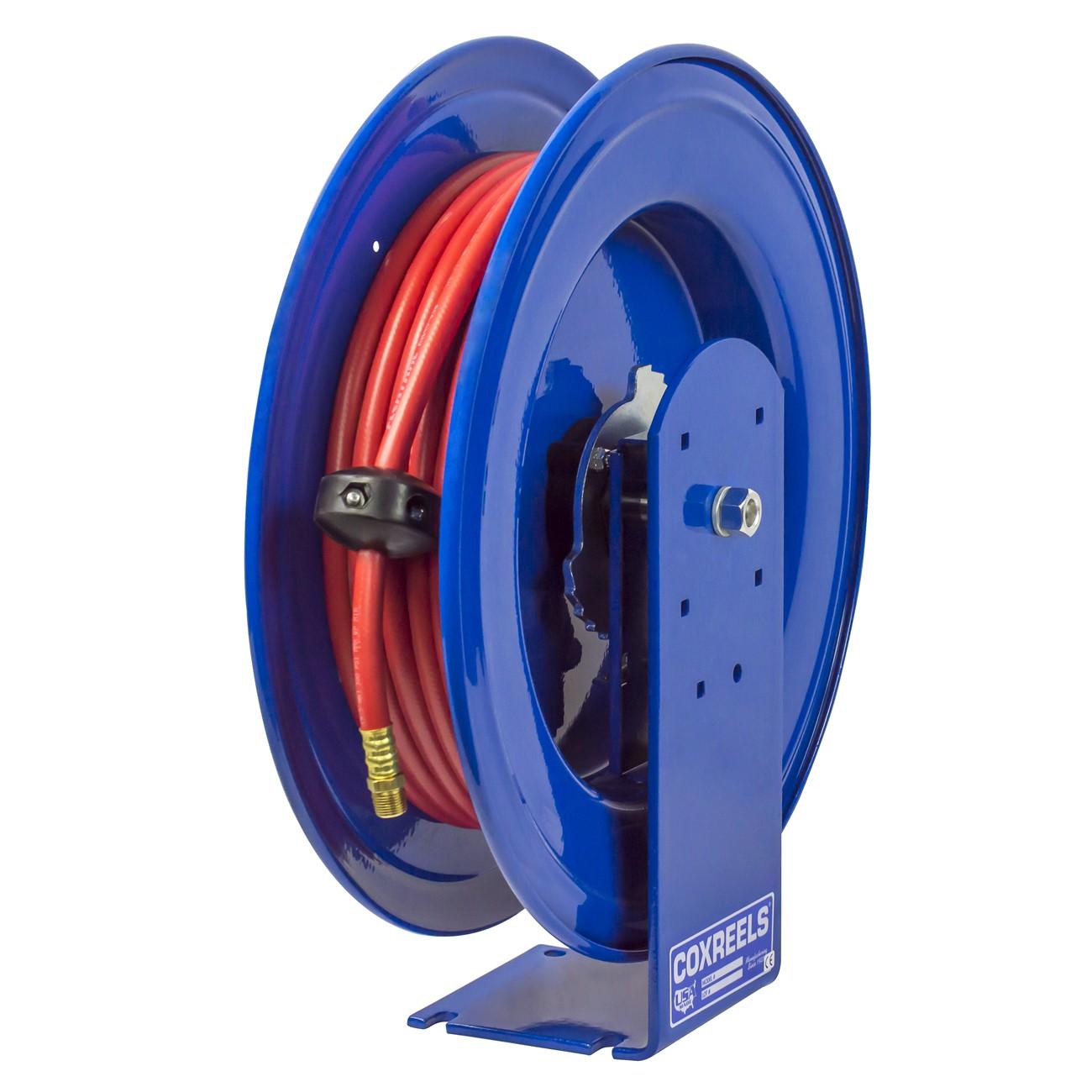

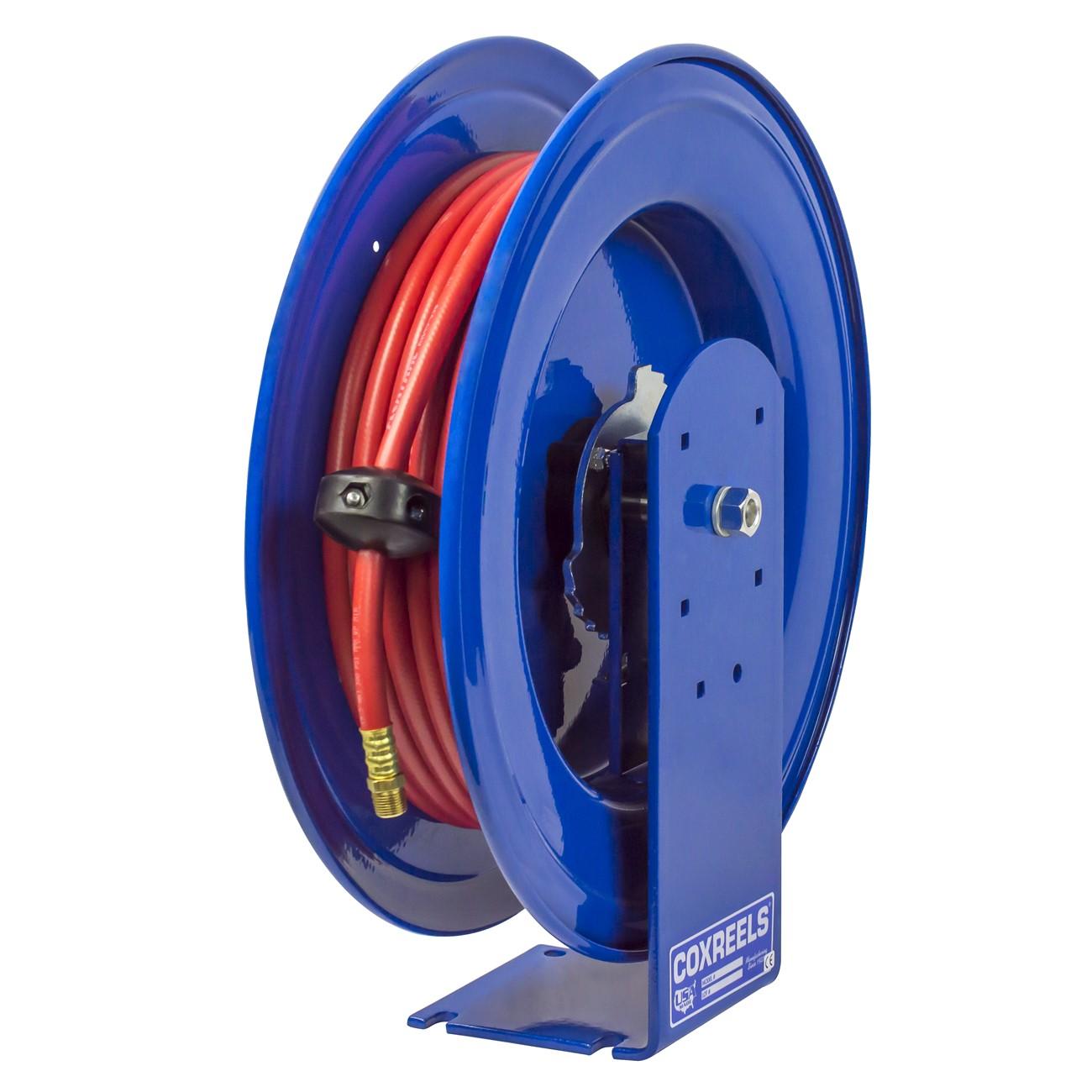

Coxreels E-LP-350 Spring Retractable Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS E-LP-350 is a spring-retractable hose reel from the E Series, designed for professional multi-point fluid or air delivery in commercial and industrial environments. It accepts 3/8 inch ID hose up to 50 feet in length and uses a cartridge-style spring motor to retract the hose automatically. The reel is built on a single-pedestal steel base with CNC robotically spun and ribbed discs, a CPC powder coat finish, and a machined brass 90-degree full-flow NPT swivel. Licensed trades and facility maintenance professionals install this reel in service bays, shops, and cabinet bank systems where durable, organized hose management is required.

The E-LP-350 is suited for residential service shops, commercial garages, and industrial facilities that require a structured hose delivery system. It is a core component of the E Series expandable cabinet bank platform, which allows multiple spring-driven reel assemblies to be mounted in interlocking metal enclosures. This configuration supports organized, multimedia delivery of air, water, or compatible fluids from a single professional-grade installation. The reel ships as a single unit and can be integrated into a larger bank system as bay count or service needs expand.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Cartridge-style spring motor is lubricated, enclosed, and removable for safe field maintenance
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Single-pedestal design with solid one-piece steel base and support post, no-weld construction, includes dual axle support
• Expandable cabinet bank design supports interlocking metal enclosures for multi-reel professional installations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and multi-position lock ratchet mechanism

Compatibility

Designed for integration into the COXREELS E Series expandable cabinet bank system and compatible with 3/8 inch ID hose up to 50 feet in length. No additional specific model compatibility data was provided in the source data.

Installation Notes

Installation is typically performed by a qualified mechanical or facilities technician. Shut off and depressurize the supply line completely before mounting or connecting the reel. Follow applicable OSHA and local mechanical codes for hose reel mounting, swivel torque, and pressure ratings. Do not exceed the hose or reel pressure rating, and verify hose compatibility with the fluid or gas being conveyed before placing the system in service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Capacity: 50 feet
• Retraction Type: Spring driven
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 46 pounds
• UPC: 674255714700

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-LP-350
