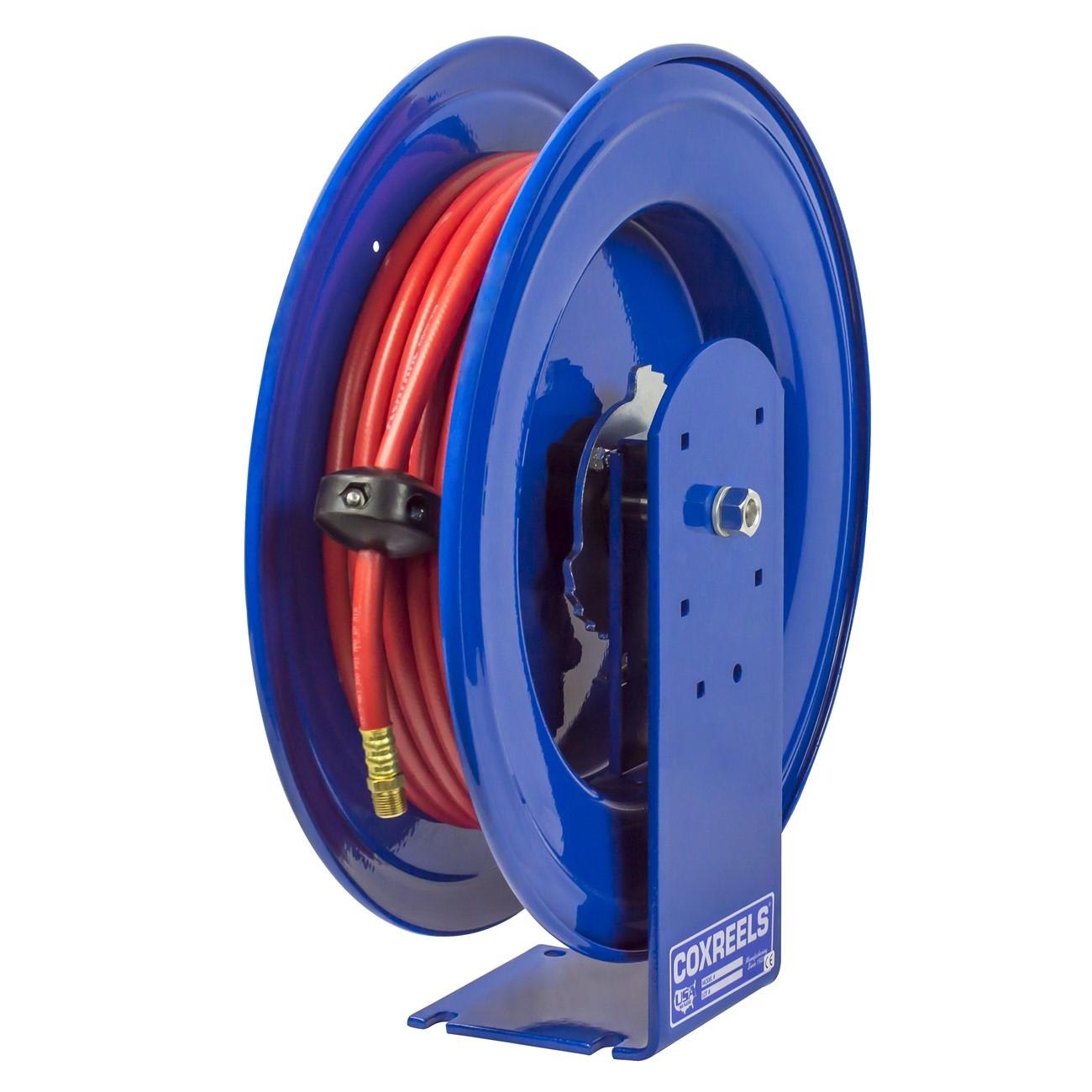

Coxreels E-LP-330 Spring Rewind Hose Reel 3/8 in 30 Ft

Product Description

The COXREELS E-LP-330 is a spring-rewind hose reel from the E Series, designed for professional multimedia delivery systems in commercial and industrial environments. Built around a cartridge-style spring motor and a machined brass 90-degree full-flow NPT swivel, this reel accepts 3/8-inch ID hose up to 30 feet in length. The unit features CNC robotically spun and ribbed steel discs with rolled edges for structural integrity and hose protection. A CPC powder coat finish provides long-term resistance to chipping and rust. Licensed tradespeople and facility maintenance professionals are the primary installers of this equipment.

The E-LP-330 is suited for fixed installation in professional service bays, shops, and facilities requiring organized, retractable hose delivery. It is part of the COXREELS E Series expandable bank system, which uses interlocking metal cabinets to accommodate multiple spring-driven reel assemblies in a single organized installation. This makes it appropriate for multi-bay facilities where consistent hose management and professional appearance are required. The single-pedestal steel base provides stable floor or surface mounting without welded joints.

Key Features

• Spring-rewind cartridge motor is lubricated, enclosed, and fully removable for safe field maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Solid one-piece steel base with single pedestal and no-weld support post for maximum stability
• Designed for expandable interlocking cabinet bank systems to support multiple-reel professional installations
• Adjustable solid rubber hose stop, multi-position lock ratchet mechanism, and lubricated precision bearings included

Compatibility

Designed for use within the COXREELS E Series expandable bank system; compatible with interlocking metal cabinet assemblies that accept spring-driven reel units. Accepts 3/8-inch ID hose up to 30 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and fluid delivery systems. Shut off and depressurize the supply line before connecting or servicing the swivel and hose fittings. Secure the base to a stable surface using appropriate fasteners rated for the mounting substrate. Verify all NPT connections are properly threaded and sealed before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose Capacity: 30 feet
• Reel Drive Type: Spring rewind
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Construction: One-piece steel, no-weld single pedestal
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 33 pounds
• UPC: 674255714656

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-LP-330
