Coxreels E-HPL-330 Hose Reel 3/8 in 30 Ft Spring Driven

Product Description

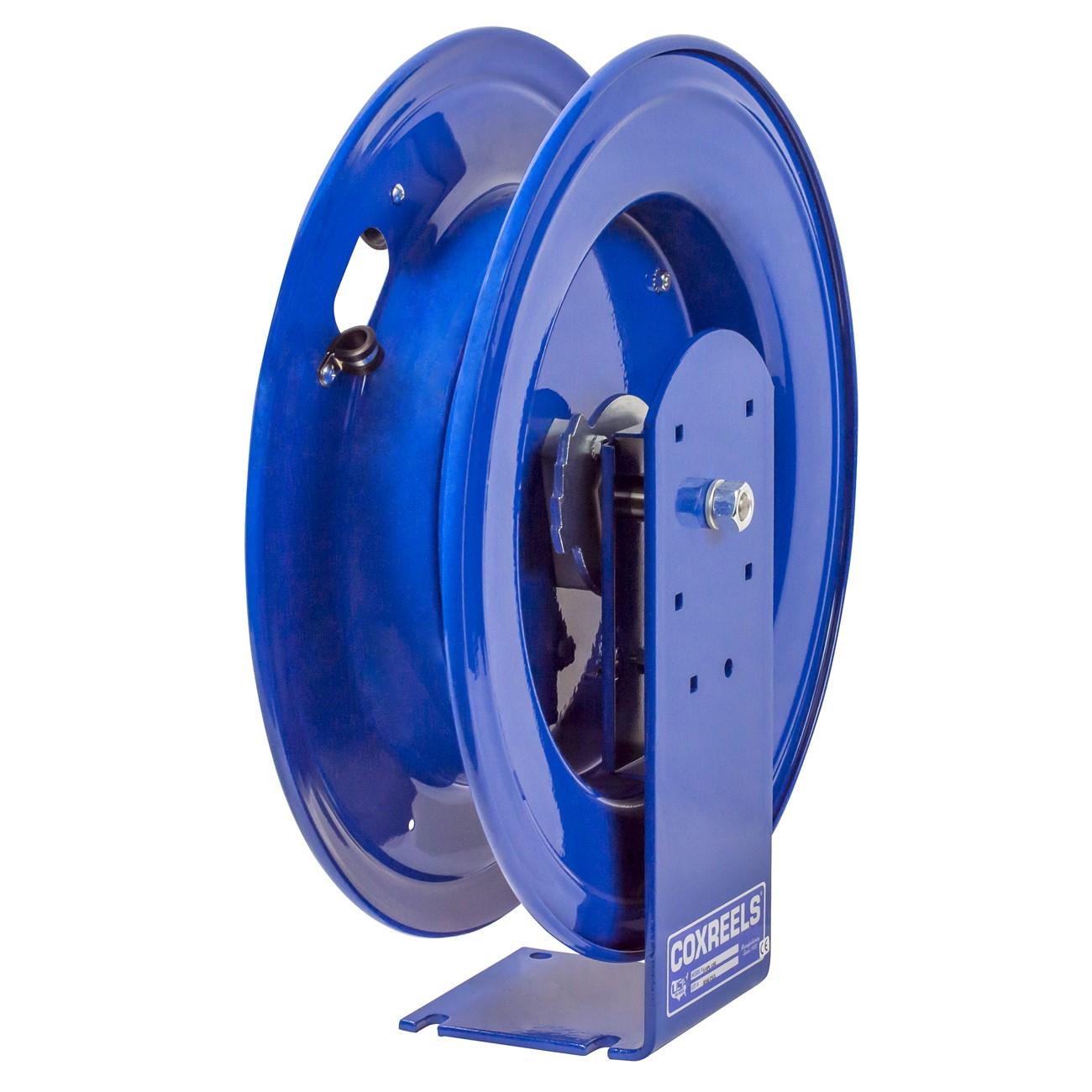

The COXREELS E-HPL-330 is a spring-driven hose reel from the E Series expandable bank system, designed for professional fluid and air delivery in commercial and industrial service environments. Built on a solid one-piece steel base with a single pedestal and no-weld support post, the reel accepts 3/8-inch ID, 11/16-inch OD hose up to 30 feet in length. The cartridge-style spring motor is fully enclosed and lubricated for long service life. A machined zinc-plated steel swivel with 90-degree full-flow NPT inlet allows quick hose replacement without removing the reel from its mount. This unit weighs 39 pounds and is finished in a chip-resistant, rust-inhibiting CPC powder coat.

The E-HPL-330 is suited for professional shop environments, service bays, fleet maintenance facilities, and similar commercial installations where organized, reliable hose management is required. The E Series cabinet design is modular and expandable, allowing multiple reel assemblies to be integrated into a single interlocking bank system. This makes it a practical choice for shops that need to manage air, fluid, or other media lines from a centralized, wall- or pedestal-mounted installation. Licensed mechanics, industrial maintenance technicians, and facility service professionals are the typical installers.

Key Features

• Spring-driven cartridge motor is enclosed, lubricated, and removable for maintenance without special tools
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose replacement without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• Solid one-piece steel base with single pedestal and no-weld construction for maximum stability
• Multi-position lock ratchet mechanism with adjustable solid rubber hose stop
• Expandable modular cabinet design supports multiple-reel bank configurations for organized service layouts

Compatibility

Designed for use within the COXREELS E Series expandable multiple-reel bank cabinet system, accepting 3/8-inch ID hose up to 30 feet in length. Compatible with standard NPT hose fittings at the swivel inlet.

Installation Notes

Installation is typically performed by a qualified mechanic or facilities maintenance technician. Ensure the mounting surface or pedestal can support the loaded weight of the reel and hose before fastening. Shut off and depressurize the supply line before connecting or disconnecting hose or swivel fittings. Follow all applicable facility and local codes for compressed air or fluid piping connections.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length Capacity: 30 feet
• Drive Type: Spring driven
• Base Material: Steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 39 pounds
• Swivel Material: Zinc-plated steel
• Swivel Inlet: 90-degree full-flow NPT
• UPC: 674255714502

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-HPL-330
