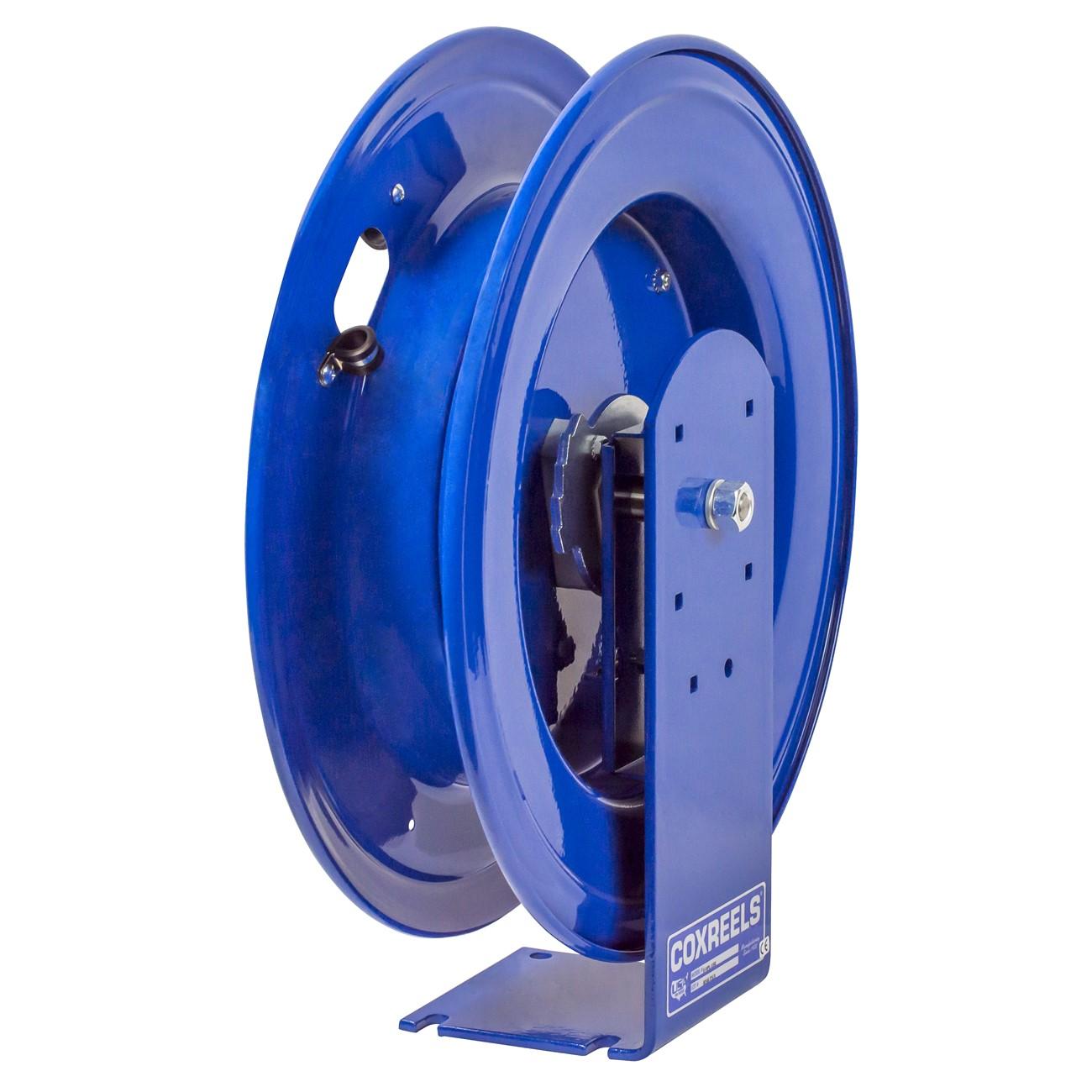

Coxreels E-HPL-150 Spring Driven Hose Reel 50 Ft Steel

Product Description

The COXREELS E-HPL-150 is a spring-driven hose reel built for professional multi-bay and cabinet-based delivery systems. Part of the COXREELS E Series, this reel features a 1/4 inch inner diameter with a 9/16 inch outer diameter hose path and accommodates 50 feet of hose. The unit weighs 49 pounds and is constructed with a heavy-duty steel base and CNC robotically spun ribbed discs. It is designed for licensed trades and service professionals who require a reliable, organized, and expandable multimedia delivery setup in shop, fleet, or facility environments.

The E-HPL-150 fits into the E Series expandable cabinet bank system, which allows multiple spring-driven reel assemblies to be mounted side by side in interlocking enclosures. This configuration suits automotive service bays, industrial maintenance shops, fleet facilities, and commercial service operations where multiple fluid or air delivery points are needed in a single organized installation. The design supports easy access for routine maintenance and component servicing without removing the entire reel from its mount.

Key Features

• Spring-driven retraction with multi-position lock ratchet mechanism for controlled hose extension and retraction
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal maintenance without dismounting the reel
• Lubricated enclosed cartridge-style motor is removable for safe, convenient maintenance
• CNC robotically spun and ribbed disc construction with rolled edges for added strength, durability, and operator safety
• Single-pedestal steel base with one-piece no-weld support post and dual axle support for maximum stability
• CPC powder coat finish is chip-resistant and rust-inhibiting; adjustable solid rubber hose stop and lubricated precision bearings included

Compatibility

Designed for use within the COXREELS E Series expandable interlocking cabinet bank system, accommodating multiple spring-driven reel assemblies in a single installation.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid delivery systems. Disconnect and depressurize the supply line before mounting or servicing the reel. Secure the unit to a stable surface using the pedestal base mounting points, and verify all NPT swivel connections are leak-free before returning the system to service. Follow applicable facility and local codes for compressed air or fluid line installations.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 9/16 inch
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Material: Steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 49 pounds
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• UPC: 674255714472

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-HPL-150
