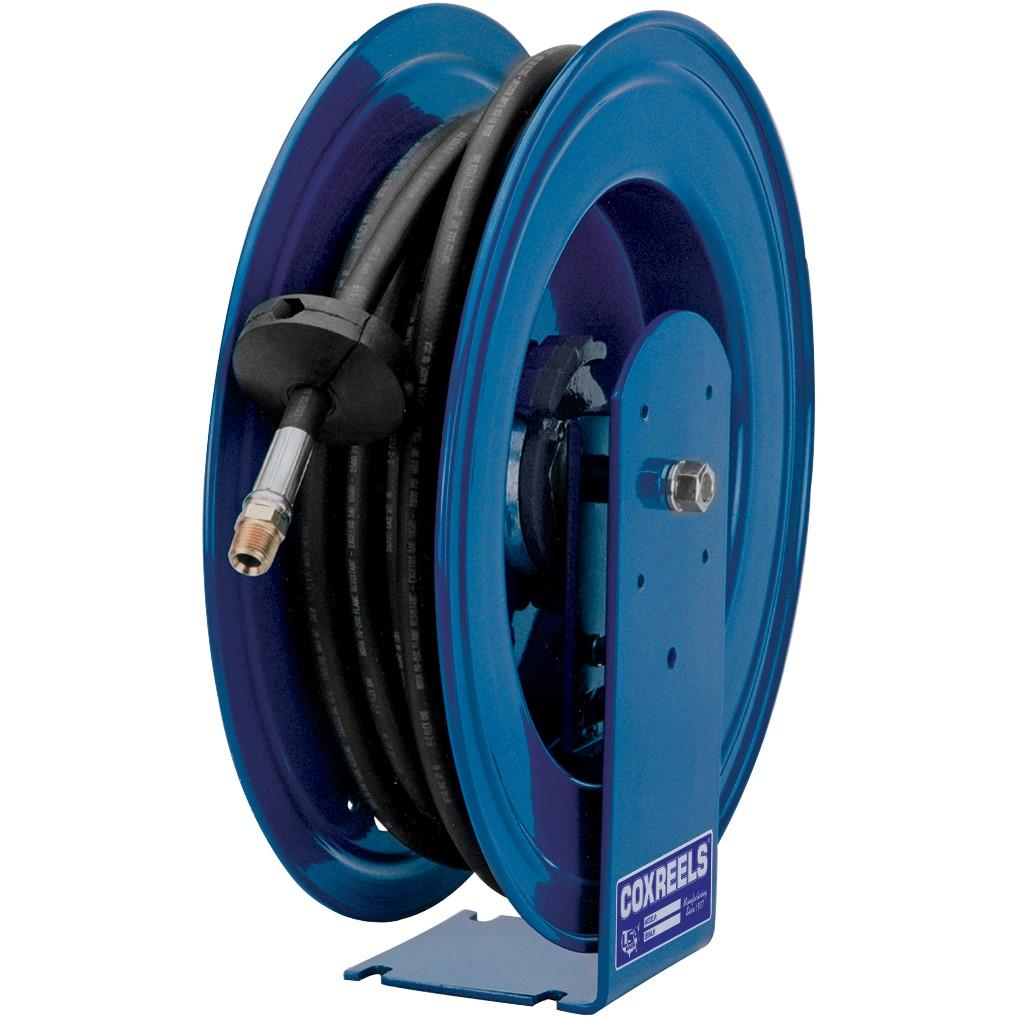

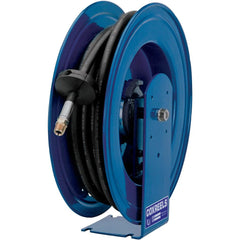

Coxreels E-HP-330 Spring Retractable Hose Reel 3/8 in 30 Ft

Product Description

The COXREELS E-HP-330 is a spring-retractable hose reel from the E Series, designed for high-pressure fluid delivery in professional shop and industrial environments. It accommodates 3/8-inch ID hose up to 30 feet and features a heavy-duty steel construction with a CPC powder coat finish that resists chips and rust. The reel uses a cartridge-style spring motor and a zinc-plated steel 90-degree full-flow NPT swivel, making it a durable, serviceable unit for licensed technicians and shop professionals who need reliable hose management in daily operations.

The E-HP-330 is suited for professional service bays, maintenance shops, and industrial facilities where organized, repeatable hose deployment is required. Its expandable cabinet design allows integration into multi-reel bank systems, making it a practical fit for shops that run multiple fluid or air lines from a central service column. Licensed HVAC technicians, automotive service professionals, and industrial maintenance crews are the primary installers of this unit.

Key Features

• Spring-retractable cartridge motor is lubricated, enclosed, and removable for safe maintenance without removing the reel from its mount
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base and support post with no-weld single pedestal design for maximum stability, including dual axle support
• Adjustable solid rubber hose stop and multi-position locking ratchet mechanism for controlled hose positioning
• Expandable interlocking cabinet system supports multi-reel bank configurations for organized multimedia delivery

Compatibility

Designed as an OEM-style spring-retractable reel for 3/8-inch ID hose and compatible with the COXREELS E Series expandable interlocking cabinet and multi-reel bank system.

Installation Notes

Installation should be performed by a qualified technician familiar with pressurized fluid systems. Depressurize all connected lines and relieve spring tension before servicing the motor cartridge or swivel assembly. Secure the mounting base to a structurally sound surface rated for the combined weight of the reel and hose assembly. Follow applicable OSHA and facility safety codes for pressurized hose installations.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length: 30 feet
• Reel Length: 20.5 inches
• Reel Width: 10.5 inches
• Reel Height: 22 inches
• Weight: 47 pounds
• Material: Steel
• Finish: CPC Powder Coat
• Swivel Material: Zinc Plated Steel
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-HP-330
