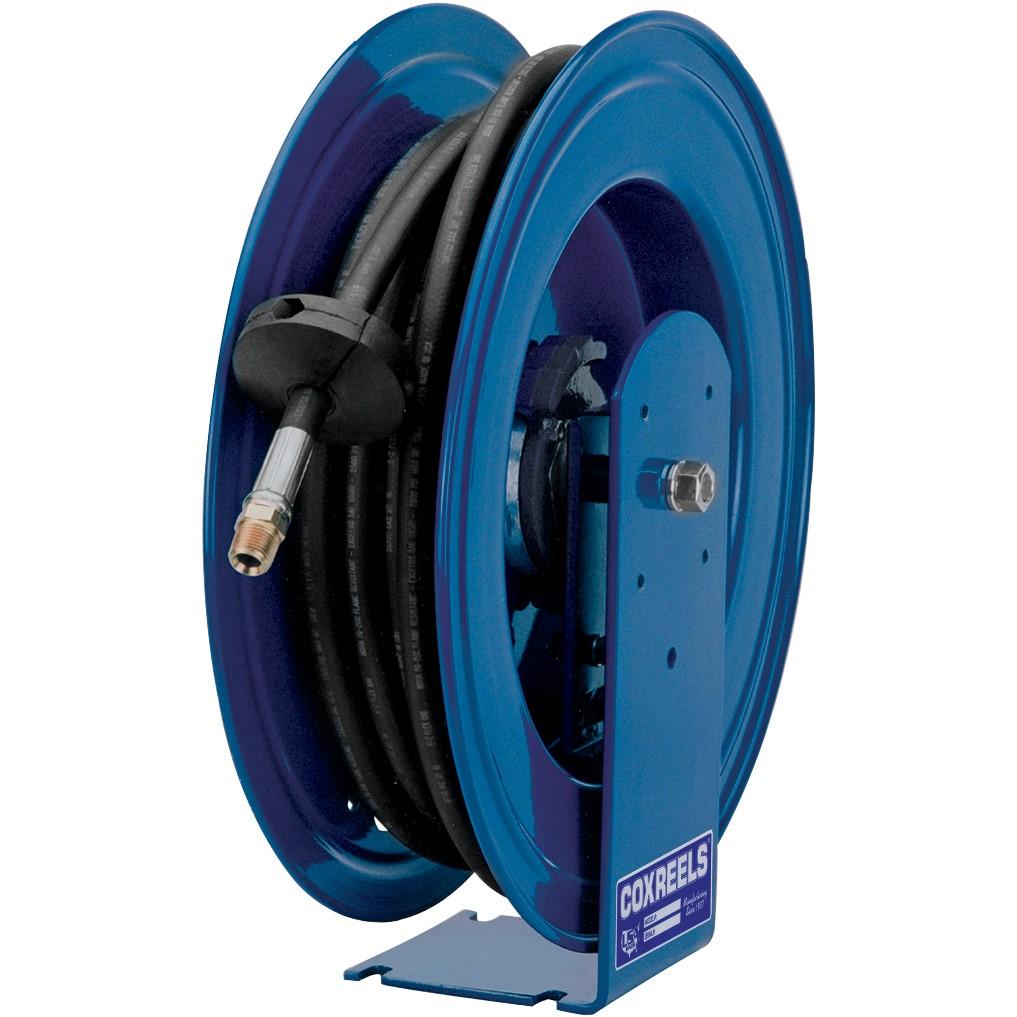

Coxreels E-HP-130 Spring Rewind Hose Reel 1/4 in 30 Ft

Product Description

The COXREELS E-HP-130 is a spring-rewind hose reel from the E Series line, built for professional fluid and air delivery applications in demanding shop and industrial environments. The reel accepts 1/4 inch ID hose up to 30 feet in length and returns it automatically via an enclosed cartridge-style spring motor. Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges provide structural rigidity and protect the hose during repeated cycling. A machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount. This unit is installed by maintenance technicians, industrial mechanics, and shop service professionals.

The E-HP-130 is suited for fixed installations in automotive service bays, industrial maintenance facilities, compressor rooms, and similar high-use environments. It is part of the COXREELS E Series expandable bank system, which uses interlocking metal cabinets to accommodate multiple spring-driven reel assemblies in a single organized installation. This makes it a practical choice when multiple fluid or air delivery points are needed at a single service station or along a work bay.

Key Features

• Enclosed cartridge-style spring motor is lubricated and fully removable for maintenance without disassembling the reel
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base with single pedestal design and no-weld construction for maximum stability
• Multi-position lock ratchet mechanism holds hose at desired extension length
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included
• Compatible with E Series expandable interlocking cabinet bank systems for multi-reel installations

Compatibility

The E-HP-130 is designed for use within the COXREELS E Series expandable bank system, accepting interlocking metal cabinets for multi-reel configurations. It accepts 1/4 inch ID hose with a 9/16 inch OD up to 30 feet in length.

Installation Notes

Installation is typically performed by a qualified mechanic or maintenance technician. De-pressurize and disconnect the air or fluid supply line before mounting or servicing the reel. Mounting surface must support the combined weight of the reel and fully loaded hose. Swivel connections should be inspected and sealed per the fitting manufacturer guidelines; no special tools are required to remove the swivel for seal service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Capacity: 30 feet
• Rewind Type: Spring
• Swivel Material: Zinc-plated steel
• Swivel Angle: 90 degrees
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 46 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: E-HP-130
