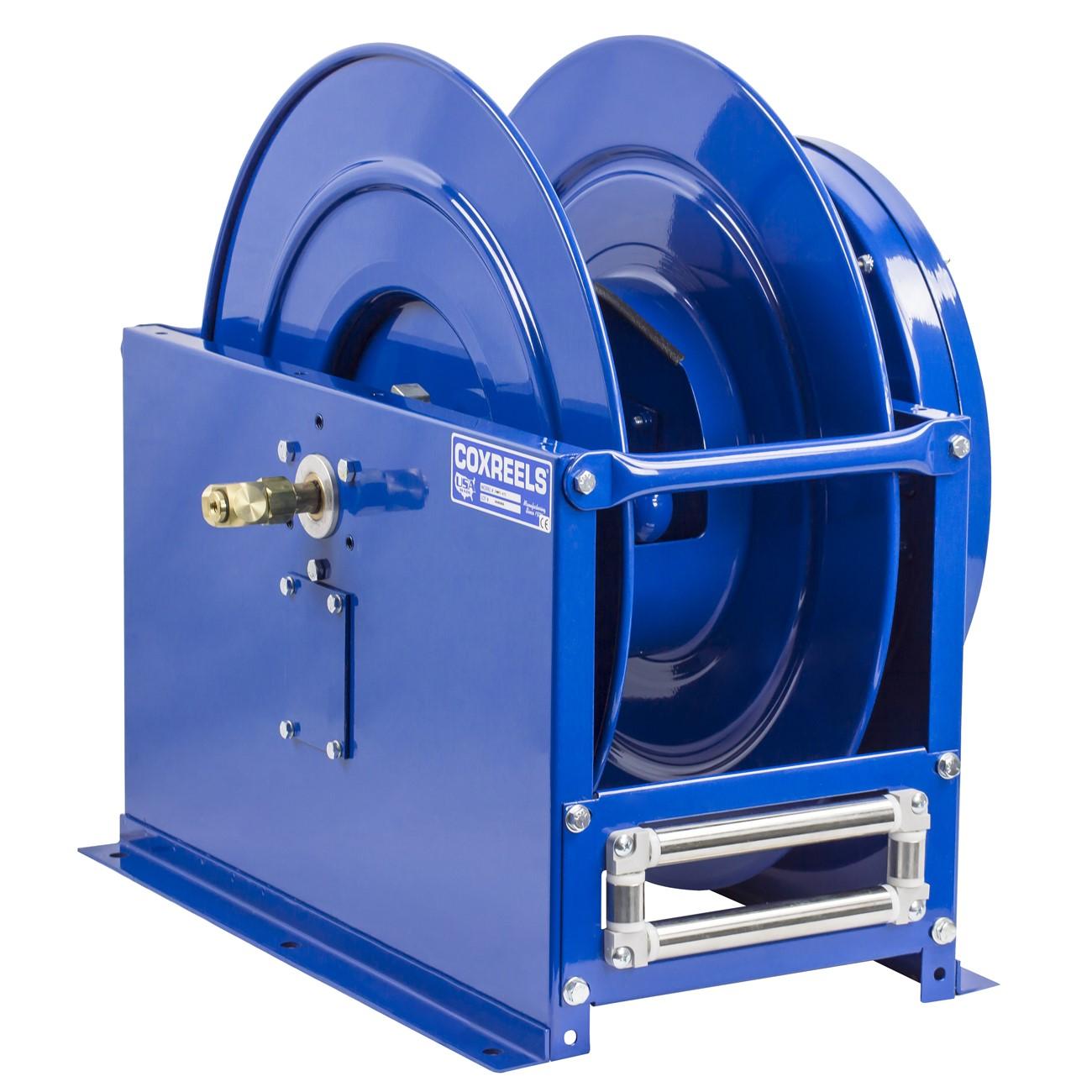

Coxreels DMPL-475 Dual Product Hose Reel 75 Ft Steel

Product Description

The COXREELS DMPL-475 is a DP Series dual product delivery spring-driven hose reel built for industrial and commercial fluid delivery applications requiring two simultaneous hose lines. It features two external swivel inlets and two outlets, allowing paired hoses to be managed from a single reel mount. The unit accepts hose with a 1/2 inch inner diameter and a 15/16 inch outer diameter, with a 75-foot hose capacity. The heavy-duty steel box-style frame includes cross supports to all four corners for structural rigidity under demanding service conditions. At 115 pounds, this reel is designed for permanent or semi-permanent installation by qualified trade professionals.

The DMPL-475 suits low- and medium-pressure dual hose applications where high-volume fluid delivery is required. Typical installations include industrial facilities, fleet service bays, agricultural operations, and commercial lubrication systems where two product lines must be dispensed from a single reel station. The spring-driven retraction mechanism keeps hose organized and off the floor, reducing trip hazards and hose wear in high-traffic service environments. This reel is sized for applications demanding large-diameter hose handling alongside dual-circuit fluid routing.

Key Features

• Dual swivel inlets: two machined solid brass 90-degree full-flow NPT swivel inlets allow seal maintenance and hose installation without removing the reel from its mount
• Cartridge-style motor is lubricated, enclosed, and fully removable for safe field maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Reinforced steel box-style frame with cross supports to all four corners for added rigidity
• Exclusive low-profile outlet riser and open drum slot design delivers a flat, non-crimping hose wrap
• CPC powder coat finish resists chips and rust; stainless steel pinch-proof rollers, stainless steel pawl spring, and self-lubricated flange bearings included

Compatibility

Designed for dual hose applications using 1/2 inch inner diameter hose with a 15/16 inch outer diameter up to 75 feet in length in low- and medium-pressure fluid delivery systems.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial fluid delivery systems and applicable local codes. Shut off all fluid supply lines and relieve system pressure completely before mounting or servicing the reel. Secure the unit to a structurally adequate surface using appropriate fasteners rated for the combined weight of the reel and filled hose. Verify all NPT swivel inlet connections are properly sealed and tested for leaks before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 15/16 inch
• Hose Capacity: 75 feet
• Frame Material: Steel
• Drive Type: Spring driven
• Inlet and Outlet Configuration: Two inlets, two outlets
• Length: 33.5 inches
• Width: 22 inches
• Height: 25.75 inches
• Weight: 115 pounds
• UPC: 674255814349

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: DMPL-475
