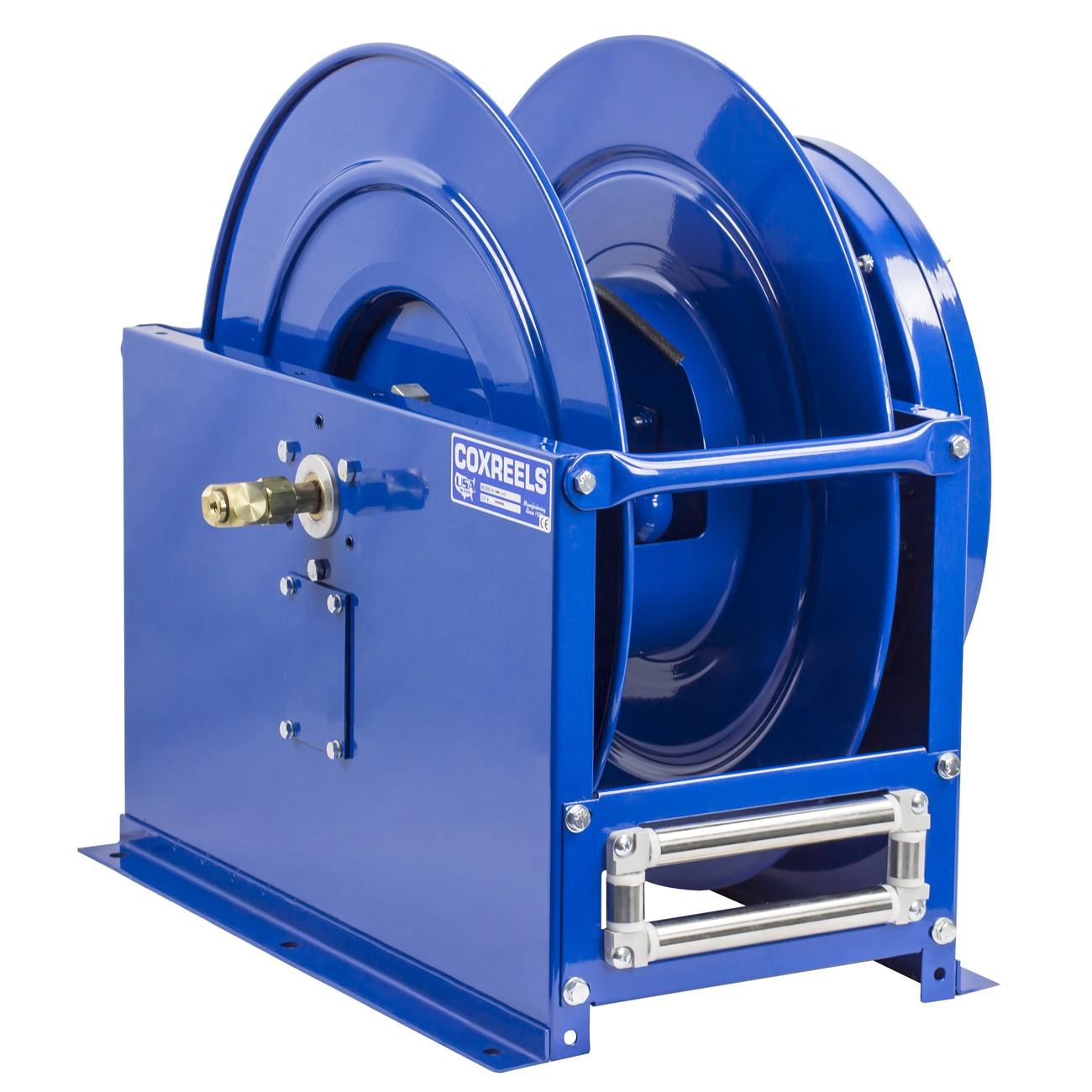

Coxreels DLPL-450 Dual Product Spring Driven Hose Reel

Product Description

The COXREELS DLPL-450 is a DP Series dual product delivery spring driven hose reel designed for applications requiring simultaneous delivery through two separate fluid paths. It features two swivel inlets and two outlets, making it well suited for high-volume dispensing in low to medium pressure systems. The reel is built around a sturdy box-style steel frame with heavy duty cross supports at all four corners for added rigidity. At 97 pounds, this is a substantial unit intended for permanent or semi-permanent installation by experienced service technicians in industrial, fleet, or shop environments.

The DLPL-450 is used in commercial and industrial settings where dual hose delivery is required, such as lubrication service bays, fluid dispensing stations, or vehicle maintenance facilities. The spring driven retraction mechanism allows for controlled hose retrieval without manual winding. The dual inlet and outlet configuration handles large diameter hose in applications demanding large volume fluid delivery. This reel is typically installed by maintenance technicians or shop equipment specialists working with lubrication or fluid transfer systems.

Key Features

• Two external fluid paths with machined solid brass 90-degree full-flow NPT swivel inlets for simple seal maintenance and hose installation without removing the reel from its mount
• Lubricated and enclosed cartridge-style spring motor is removable for safe and convenient maintenance
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Reinforced steel box-style frame with dual inlets and outlets rated for dual hose applications
• Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
• CPC powder coat finish with chip resistance and rust inhibition; stainless steel pinch-proof rollers, stainless steel pawl spring, and self-lubricated flange bearings

Compatibility

Designed for use with 1/2 inch ID hose up to 50 feet in length in dual product delivery configurations typical of low to medium pressure fluid dispensing systems.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer and hose reel mounting requirements. Shut off all fluid supply lines and depressurize the system completely before mounting or servicing this reel. Secure the reel to a structurally adequate surface using appropriate fasteners for the frame footprint. Verify all NPT swivel inlet connections are properly sealed before returning the system to service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Inlet/Outlet Configuration: Two inlets, two outlets (dual product)
• Swivel Inlet Type: Machined solid brass 90-degree full-flow NPT
• Frame Material: Steel with box-style reinforced design
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Roller Material: Stainless steel
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 97 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: DLPL-450
