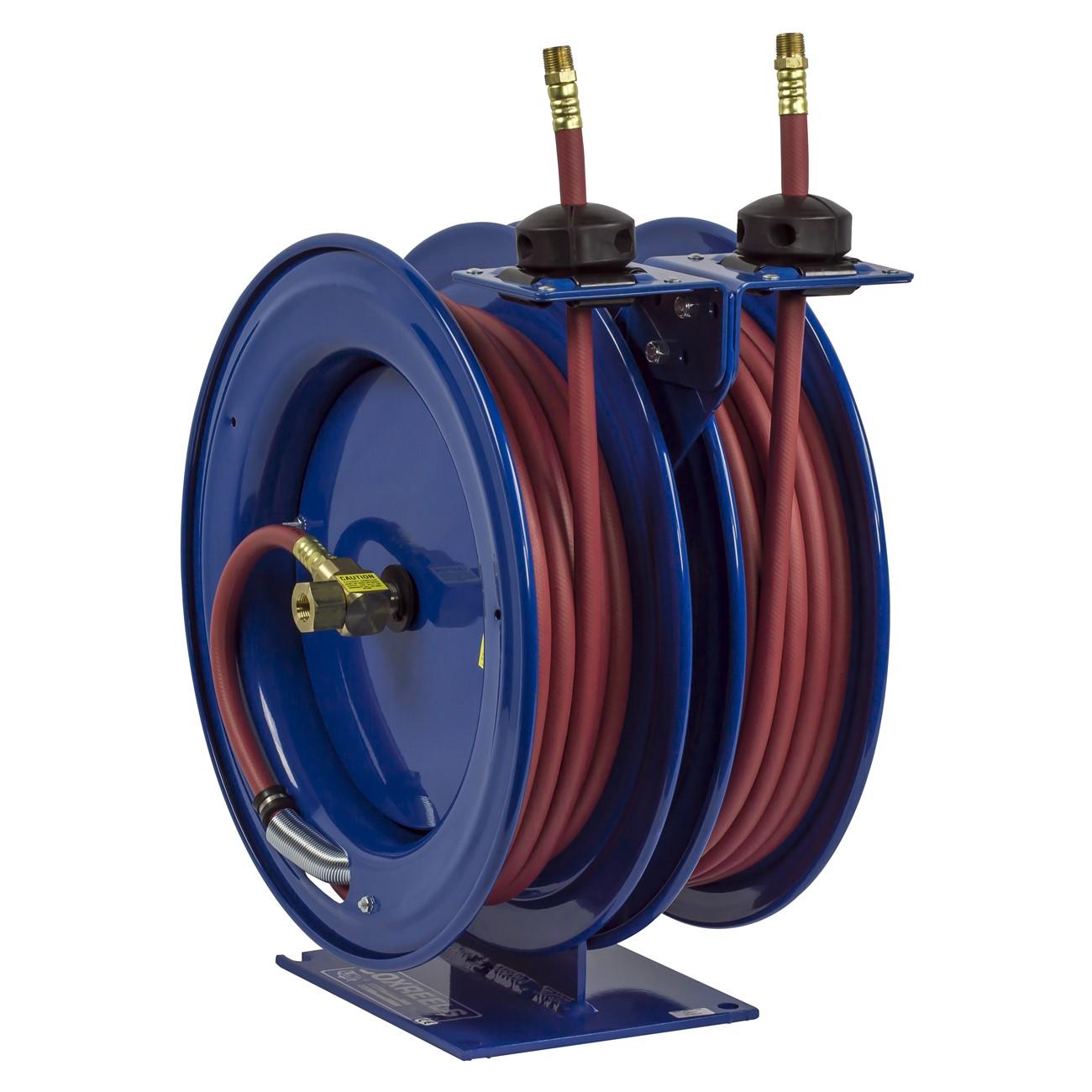

Coxreels C-LP-150-150 Dual Spring Driven Hose Reel

Product Description

The COXREELS C-LP-150-150 is a C Series combination spring-driven hose reel designed to house two hose reels in one compact assembly. It delivers dual-source fluid or air distribution from a single mounting base, making it a practical solution for service bays, maintenance facilities, and fleet operations where space is limited and two supply lines are required. The reel features a cartridge-style spring motor factory-tuned for consistent retraction, CNC-spun ribbed steel discs for structural durability, and a machined solid brass full-flow NPT swivel for reliable sealing and easy hose installation. Each reel in the assembly operates independently. At 74 pounds, this is a heavy-duty unit built for demanding trade environments.

The C-LP-150-150 is suited for industrial, commercial, and fleet service applications where two fluid or air sources must be routed from a single mounting point. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, giving installers flexibility across a wide range of shop layouts. The 1/4 inch ID hose path and 50 foot capacity per reel make this unit appropriate for typical shop air or fluid delivery runs. This series is also available in air hose and electrical cord combinations.

Key Features

• Dual-reel combination assembly with single mounting base — each reel operates independently
• Cartridge-style spring motor is lubricated, enclosed, and removable for easy maintenance
• Machined solid brass 90-degree full-flow NPT swivel with external fluid path for simple seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Multi-position guide arm compatible with wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style dual combination spring-driven hose reel for industrial, commercial, and fleet service installations requiring two independent hose supply lines from a single mounting base.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid or compressed air distribution systems. Shut off all air or fluid supply lines and depressurize the system completely before mounting or servicing the reel. The single expanded pedestal base requires secure fastening to a structural surface rated for the combined load of the reel and hose. Consult applicable facility codes and equipment manufacturer guidelines for proper mounting hardware and torque practices.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Length: 50 feet per reel
• Drive Type: Spring driven
• Disc Material: Steel
• Base Material: Steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Length: 18.75 inches
• Width: 14.25 inches
• Height: 20.5 inches
• Weight: 74 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: C-LP-150-150
