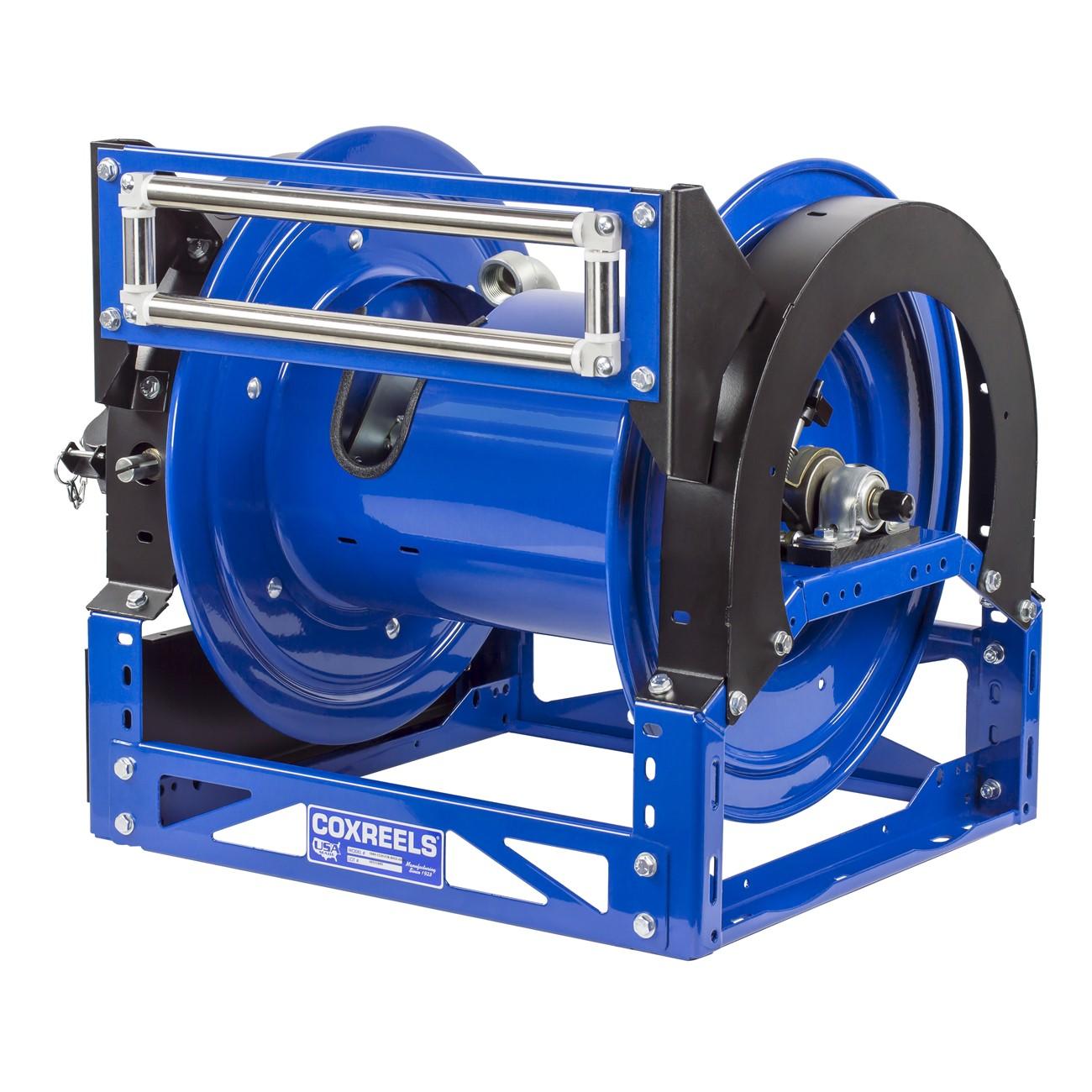

Coxreels 1660-1124 Hose Reel 1 in 100 Ft Steel Hand Crank

Product Description

The COXREELS 1660-1124 is a heavy-duty hand crank hose reel from the 1600 Series, designed for industrial and trade service applications requiring a reliable, manually retracted hose management solution. Built on a one-piece CNC robotically welded 12-gauge steel hybrid A-frame base, this reel accepts a 1-inch ID hose up to 100 feet in length. The drum and frame assembly uses CNC spun and ribbed steel discs with rolled edges, providing structural strength and hose protection during daily operation. The unit ships with a nickel-plated steel 90-degree full-flow NPT swivel and an adjustable tension brake that prevents free-wheeling between uses. Weighing 73 pounds, this reel is built for demanding service environments.

The 1660-1124 is suited for industrial facilities, service shops, fleet maintenance bays, and similar environments where a manually cranked large-bore hose reel is required. The 1-inch ID inlet and full-flow swivel support high-volume fluid transfer tasks. The hybrid frame design incorporates vertical sides that allow wall, ceiling, or floor mounting, and the open drum slot with low-profile outlet riser promotes a flat, non-crimping hose wrap. Typical installers include industrial maintenance technicians and mechanical contractors familiar with large-diameter hose reel installations.

Key Features

• One-piece CNC robotically welded 12-gauge steel hybrid A-frame base for superior structural rigidity
• CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose replacement without removing the reel from its mount
• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish with zinc-plated steel plumbing for corrosion resistance; adjustable tension brake prevents free-wheeling

Compatibility

Designed as an OEM-style replacement or direct-application hose reel for industrial and commercial service systems requiring a 1-inch ID inlet and up to 100 feet of hose capacity on a manually cranked steel reel platform.

Installation Notes

Installation should be performed by a qualified mechanical or industrial maintenance technician. Shut off and depressurize the supply line fully before connecting or disconnecting the swivel and hose assembly. Verify the mounting surface and fastener rating can support the reel weight plus the weight of a fully loaded hose. Consult applicable facility safety codes and manufacturer mounting guidelines before placing the reel in service.

Technical Specifications

• Hose ID: 1 inch
• Hose Capacity: 100 feet
• Frame Material: 12-gauge steel
• Retraction Method: Hand crank
• Swivel: Nickel-plated steel 90-degree full-flow NPT
• Weight: 73 pounds
• Finish: CPC powder coat with zinc-plated steel plumbing
• UPC: 674255856257

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1660-1124
