Coxreels 1275-6-75-EB Dual Hose Reel 75 Ft Electric

Product Description

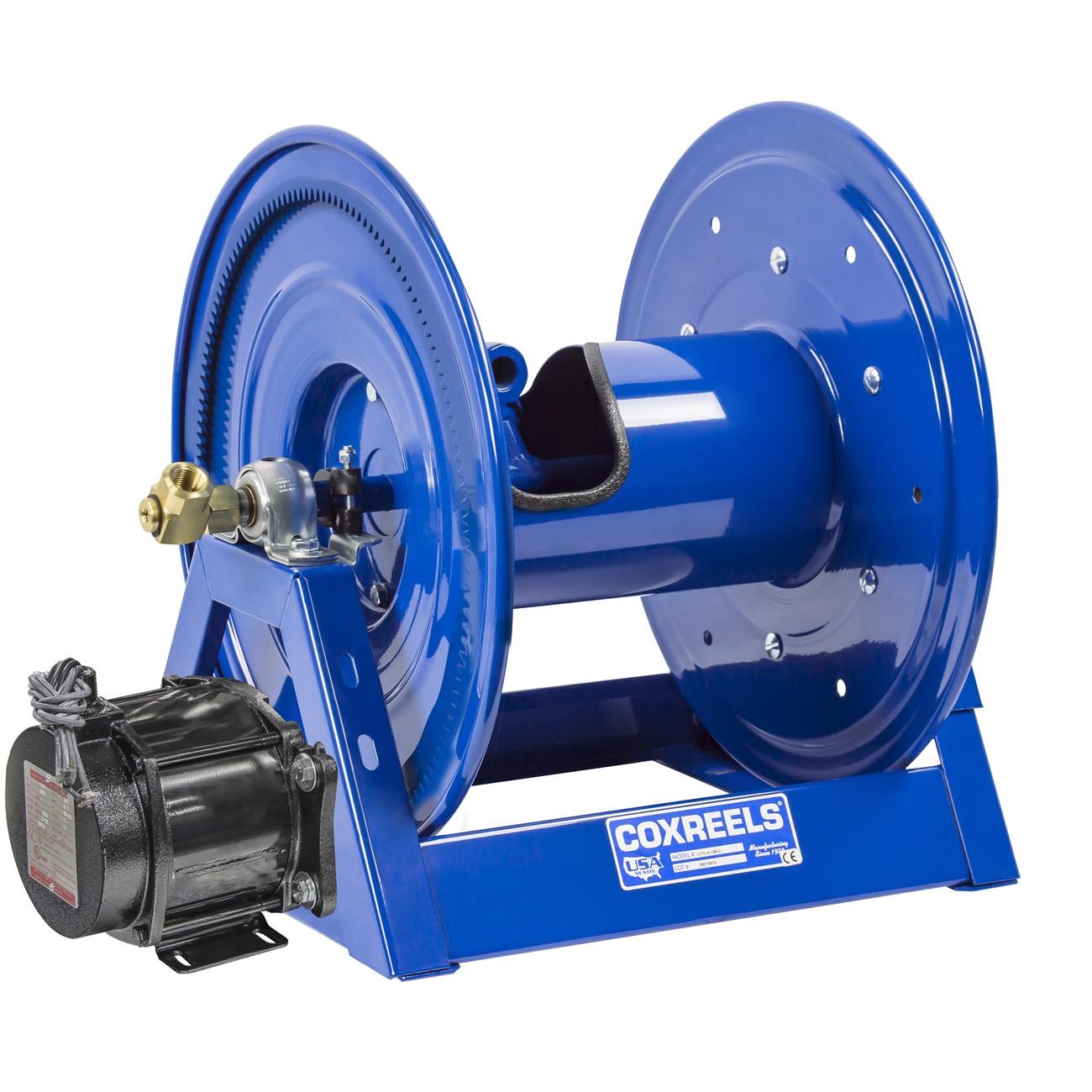

The COXREELS 1275-6-75-EB is a heavy-duty dual hose reel from the 1275 Series, built for large-capacity industrial and commercial hose management applications. This unit features an electric 24-volt DC, 1/3 HP reversible motor drive for powered retrieval and is compatible with hand-crank operation as well. It accommodates hose with a 1-inch ID and 1-7/16-inch OD up to 75 feet in length. The all-welded steel frame, dual swivel inlets, and low-profile outlet risers work together to deliver consistent, non-crimping hose wrap. Licensed HVAC, plumbing, and industrial service technicians rely on this reel for fluid transfer, pressure wash, and similar high-volume delivery tasks.

The 1275-6-75-EB is suited for commercial and industrial settings where large-diameter hose runs are standard. Typical installations include fleet maintenance bays, industrial plants, agricultural operations, and commercial service facilities. The dual plumbing configuration with two swivel inlets and two low-profile outlets allows simultaneous or dedicated hose routing. The open drum slot design ensures hose lays flat without kinking, making it well-suited for high-cycle use where consistent performance is critical.

Key Features

• Electric 24-volt DC, 1/3 HP reversible motor provides powered hose retrieval
• Dual machined solid-brass 90-degree full-flow NPT swivels allow seal maintenance and hose changes without removing the reel from its mount
• Two exclusive low-profile outlet risers and open drum slot deliver a non-crimping, flat smooth hose wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base provides superior rigidity without bolted joints
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life
• Permanently lubricated, self-aligning pillow block bearings ensure smooth rotation and low maintenance

Compatibility

Designed as an OEM-style fit within the COXREELS 1275 Series dual hose reel platform for large-capacity hose management applications requiring 1-inch ID hose up to 75 feet.

Installation Notes

Installation is typically performed by a licensed plumbing or mechanical contractor familiar with large-capacity hose reel systems. Disconnect and lock out all electrical power to the motor circuit before mounting or servicing the unit. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern in the steel base. Verify that supply plumbing connections are compatible with the NPT swivel fittings and that all fluid lines are depressurized before making or breaking hose connections.

Technical Specifications

• Hose Inside Diameter: 1 inch
• Hose Outside Diameter: 1-7/16 inches
• Hose Capacity: 75 feet
• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP reversible
• Frame Material: 12-gauge welded steel
• Swivel Material: Solid brass, NPT
• Finish: CPC powder coat
• Length: 31 inches
• Width: 24 inches
• Height: 27 inches
• Weight: 93 pounds
• Sold As: Each
• UPC: 674255839229

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-6-75-EB
