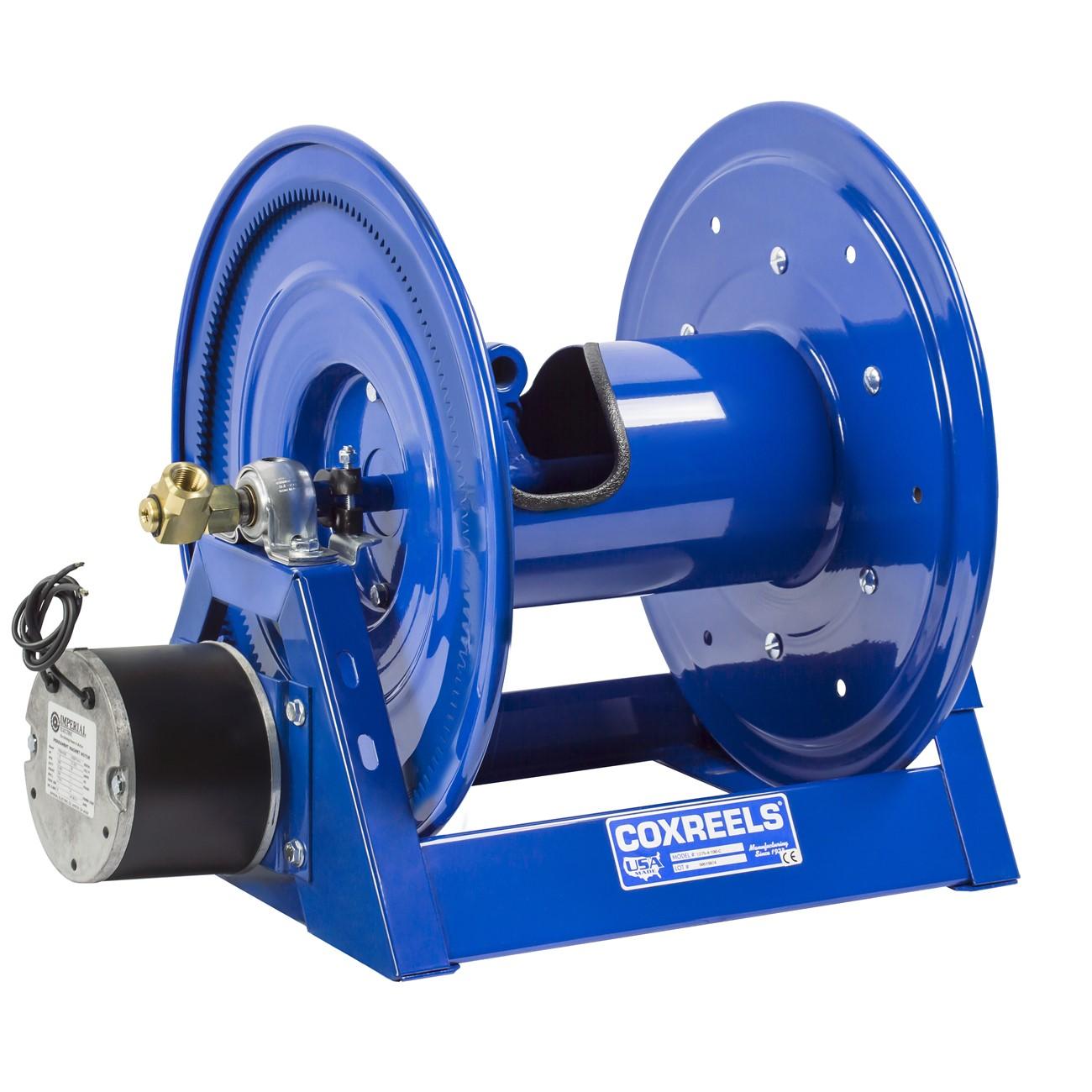

Coxreels 1275-6-75-E Dual Hose Reel 1 in 75 Ft 12V Dc

Product Description

The COXREELS 1275-6-75-E is a heavy-duty dual hose reel from the 1275 Series, engineered for large-capacity fluid transfer applications in industrial, commercial, and field-service environments. It accommodates hose with a 1-inch ID and holds up to 75 feet of hose. The reel ships with a 12V DC, 1/3 HP reversible electric motor for powered retrieval, and dual plumbing routed through two brass NPT swivel inlets and two low-profile outlet risers. The open drum slot and flat-outlet design allow hose to wrap smoothly without crimping. Licensed HVAC technicians, plumbers, and industrial service pros install and rely on this type of reel for high-volume dispensing and retrieval tasks.

The 1275-6-75-E suits large-capacity hose management in commercial HVAC, oil and lube, chemical transfer, and industrial fluid service applications. The motorized retrieval makes it well-suited to truck-mount, shop-wall, and ceiling installations where manual rewinding is impractical. The dual-plumbing configuration supports two-line circuits, allowing simultaneous supply and return routing from a single reel station. Its welded steel A-frame base accommodates fixed mounting to a variety of service platforms and vehicle bodies.

Key Features

• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivels for simple seal maintenance and fast hose installation without removing the reel from its mount
• Two low-profile outlet risers and open drum slot deliver a non-crimping, flat smooth hose wrap that protects hose integrity over repeated cycles
• One-piece CNC robotically welded 12-gauge steel A-frame base provides superior structural rigidity over bolted designs; mounting pattern built into the base for straightforward installation and removal
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for added strength, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth drum rotation and long service life
• CPC powder coat finish resists chipping and rust; 12V DC 1/3 HP reversible motor enables powered hose retrieval

Compatibility

Designed for use with 1-inch ID hose up to 75 feet in length; part of the COXREELS 1275 Series dual hose reel platform intended for large-capacity industrial and commercial fluid transfer systems.

Installation Notes

Installation is typically performed by a qualified mechanic, plumber, or industrial service technician. Shut off all fluid supply lines and disconnect the 12V DC power source before mounting or servicing the reel. Secure the A-frame base to a structurally rated surface using hardware appropriate for the load rating of the installation. Verify all NPT swivel connections are leak-free under operating pressure before returning the system to service.

Technical Specifications

• Hose ID: 1 inch
• Hose Capacity: 75 feet
• Motor Voltage: 12V DC
• Motor Output: 1/3 HP reversible
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Length: 31 inches
• Width: 24 inches
• Height: 27 inches
• Weight: 78 pounds
• UPC: 674255839205

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-6-75-E
