Coxreels 1195-1332-H Hose Reel 2 Inch Id 75 Ft

Product Description

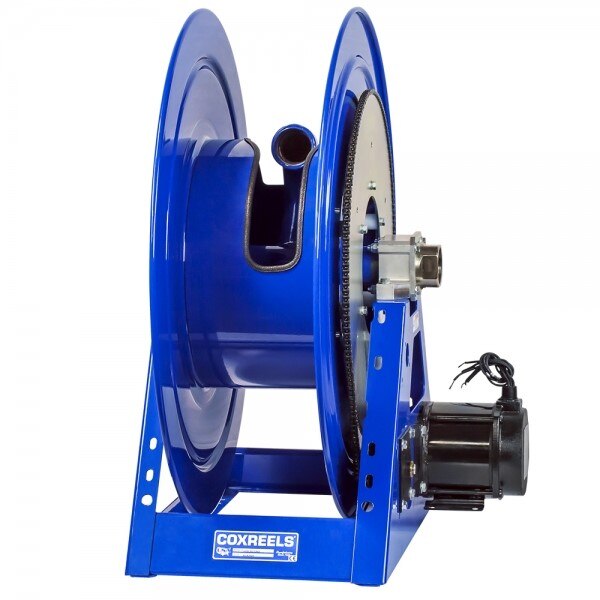

The COXREELS 1195-1332-H is a heavy-duty hose reel from the 1195 Series, engineered for high-volume fluid delivery using long runs of large-diameter hose. It features a 2 inch inner diameter hose path and accommodates up to 75 feet of hose. The reel ships as a single unit weighing 164 pounds, built around an all-welded CNC steel A-frame base that handles the structural load without bolted joints. A low-profile outlet riser combined with an open drum slot design allows the hose to wrap flat and smooth, preventing crimping. Licensed trade professionals and industrial maintenance crews are the primary installers of this unit.

The 1195-1332-H is suited for demanding applications requiring delivery of high flow volumes through large-diameter hose. Its open drum and low-profile riser make it practical for both stationary installations and mobile equipment mounting. The welded steel base includes a mounting pattern that allows the reel to be installed and removed from a vehicle or fixed mount without disassembling the unit. The hydraulic motor drive makes it appropriate for powered retrieval applications where manual rewind of a heavy, large-diameter hose is not practical.

Key Features

• 2 inch ID hose path supports high-volume fluid delivery through large-diameter hose up to 75 feet in length
• Low-profile outlet riser and open drum slot design prevent hose crimping and promote a flat, smooth wrap
• All-welded CNC robotically welded 12-gauge steel A-frame base provides superior structural integrity without bolted connections
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• CPC powder coat finish resists chipping and rust; permanent lubricated horizontal surface mount bearings support easy rotation

Compatibility

Designed as an OEM-style fit within the COXREELS 1195 Series platform for applications requiring hand crank or motor driven operation with large-diameter, high-volume hose.

Installation Notes

Installation should be performed by qualified maintenance or mechanical personnel familiar with fluid handling equipment. Depressurize and drain the hose assembly completely before mounting or servicing the reel. The base mounting pattern is designed for direct bolt-down to a fixed surface or mobile equipment frame. Verify that the hydraulic motor supply circuit is isolated and depressurized before connecting or disconnecting the motor drive.

Technical Specifications

• Hose Inner Diameter: 2 inches
• Hose Outer Diameter: 2.5625 inches
• Hose Capacity: 75 feet
• Unit Length: 29.5 inches
• Unit Width: 36 inches
• Unit Height: 36 inches
• Weight: 164 pounds
• Frame Material: 12-gauge welded steel
• Drive Type: Hydraulic motor
• Finish: CPC powder coat
• Swivel Material: Electroless nickel plated steel
• UPC: 674255854611

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-1332-H
