Coxreels 1185-3328-E-BUXX Hose Reel 1-1/2 Inch Id

Product Description

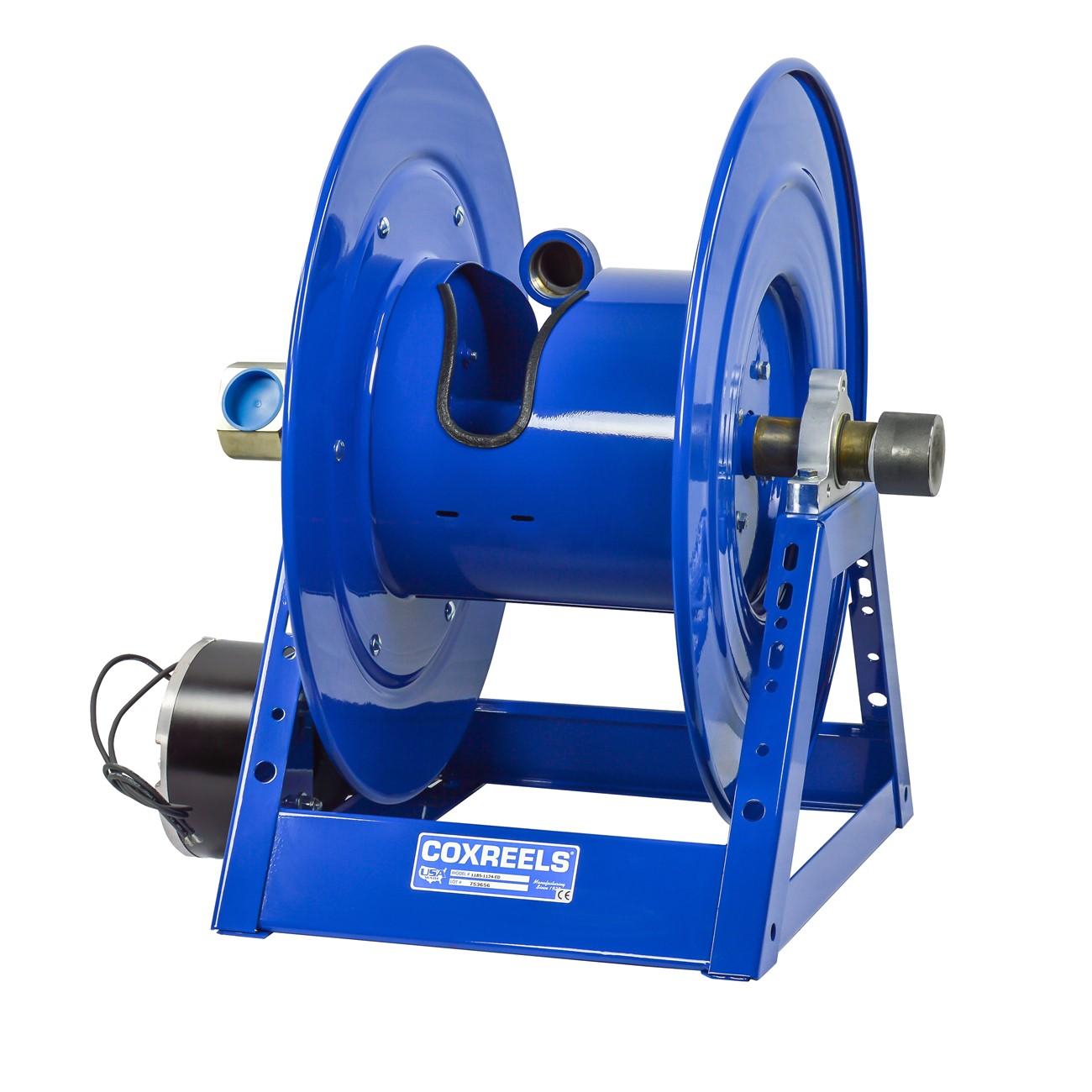

The COXREELS 1185-3328-E-BUXX is a heavy-duty motor-driven hose reel built for high-volume fluid delivery applications requiring long runs of large-diameter hose. The reel features a 1-1/2 inch ID inlet and 2-1/16 inch OD hose path, and is powered by a 12V DC, 1/3 HP reversible motor for powered retraction and deployment. The all-welded steel A-frame base, CNC robotically spun ribbed discs, and low-profile outlet riser work together to deliver a non-crimping, flat hose wrap that protects hose integrity under load. Licensed contractors and fleet service technicians working in demanding mobile or stationary environments are the primary installers of this unit.

The 1185-3328-E-BUXX is suited for industrial, commercial, and mobile service applications where large-diameter hose must be managed efficiently. Its open drum slot design supports smooth layering of hose without kinking, making it appropriate for high-flow water delivery, petroleum transfer, or similar bulk-volume service scenarios. The reel weighs 182 pounds and measures 49 inches in length, 32 inches in width, and 32 inches in height, making it appropriate for truck-mount, dock, or floor installations where a fixed anchor point is available.

Key Features

• 12V DC, 1/3 HP reversible motor for powered hose retraction and deployment
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings allows hose connection without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• CPC powder coat finish resists chipping and rust for long service life in harsh environments

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series for large-diameter, long-length hose management in motor-driven reel applications.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and 12V DC electrical wiring. Disconnect all power sources before making electrical connections to the motor. Secure the reel to a structurally rated mounting surface using the integrated base mounting pattern, and verify all NPT swivel fittings are wrench-tight before pressurizing the system. Follow applicable OSHA and local safety codes for fluid transfer equipment in mobile or fixed installations.

Technical Specifications

• Hose ID: 1-1/2 inches
• Hose OD: 2-1/16 inches
• Motor Voltage: 12V DC
• Motor Output: 1/3 HP
• Motor Type: Reversible electric
• Frame Material: 12-gauge welded steel
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• Weight: 182 pounds
• UPC: 674255855229

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-E-BUXX
