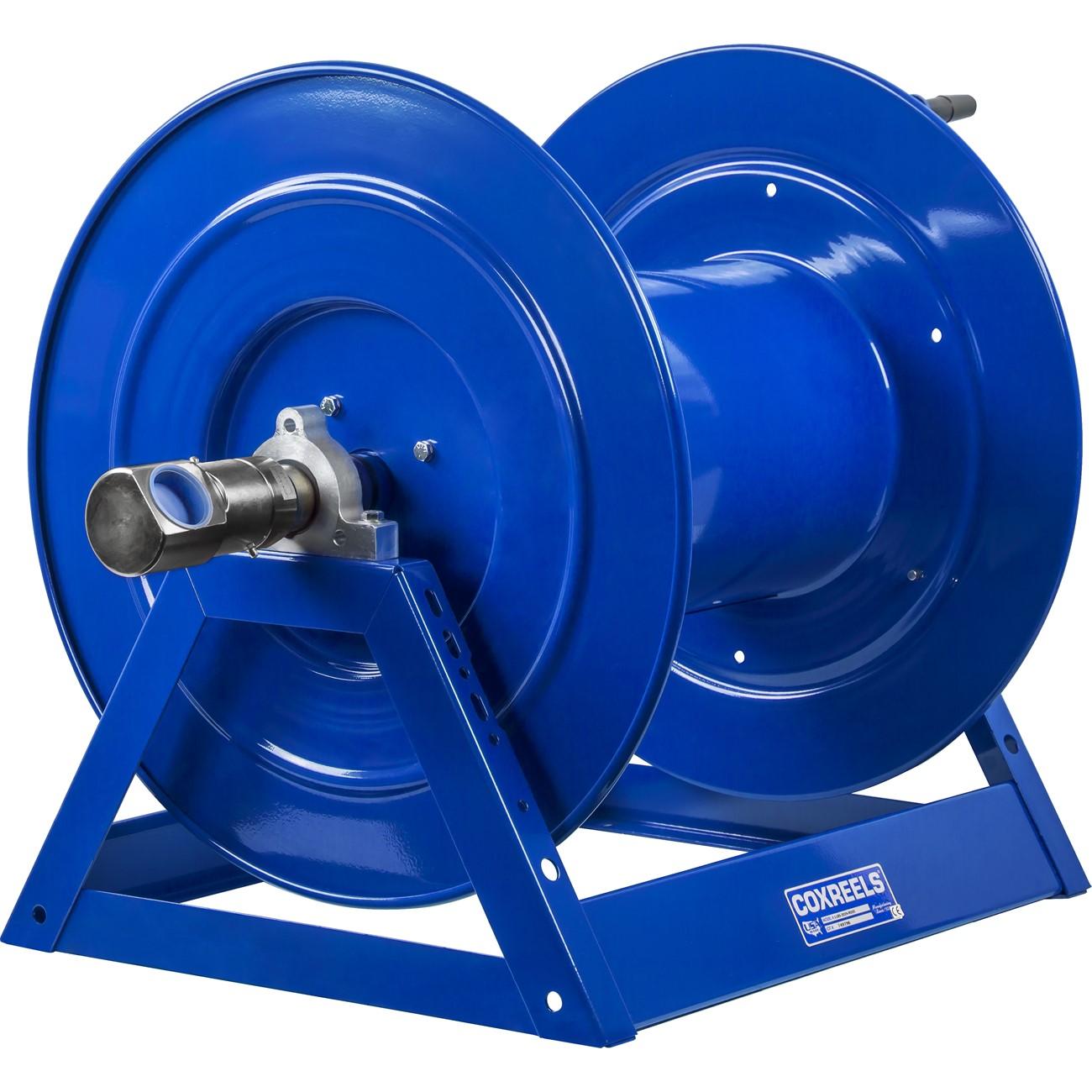

Coxreels 1185-2528-C-BUXX Hose Reel 1-1/2 Inch Id

Product Description

The COXREELS 1185-2528-C-BUXX is a heavy-duty hose reel from the 1185 Series, built to manage long lengths of large-diameter hose in high-volume fluid delivery applications. It supports both hand crank and motor-driven operation, making it adaptable to a wide range of jobsite configurations. The reel features an electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings, an exclusive low-profile outlet riser, and an open drum slot design that produces a non-crimping, flat smooth hose wrap. The hose inlet ID measures 1-1/2 inches with a 2-1/16-inch OD. Weighing 125 pounds, this unit is built for durability in demanding environments. Licensed tradespeople handling industrial fluid systems are the primary installers.

The 1185-2528-C-BUXX is suited for commercial and industrial applications requiring high-volume fluid delivery through large-diameter hose. Its all-welded A-frame base and robust construction make it a strong candidate for mobile applications, fleet service operations, and fixed installations in workshops or industrial facilities where extended hose lengths and frequent retraction cycles are the norm. The front bevel-geared crank mechanism allows mechanical retraction without power, adding flexibility in field service settings.

Key Features

• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece all-CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and removal
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes long-handled locking pin and front bevel-geared crank for mechanical retraction

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series for large-diameter hose reel applications requiring 1-1/2 inch ID hose connections in hand crank or motor-driven configurations.

Installation Notes

Installation is typically performed by industrial mechanics or licensed fluid system technicians. Before mounting or servicing, shut off and depressurize all connected fluid lines. Secure the A-frame base to a structurally sound surface using the integrated mounting pattern, following applicable facility or vehicle load requirements. Do not exceed the rated hose diameter or system pressure for the connected hose and fittings.

Technical Specifications

• Hose Inlet ID: 1-1/2 inches
• Hose OD: 2-1/16 inches
• Operation Type: Hand Crank and Motor Driven
• Frame Construction: 12-Gauge CNC Robotically Welded Steel A-Frame
• Swivel Material: Electroless Nickel-Plated Steel
• Finish: CPC Powder Coat
• Length: 37.5 inches
• Width: 32 inches
• Height: 34 inches
• Weight: 125 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2528-C-BUXX
