Coxreels 1185-2028-A Hose Reel 1.5 in Id 125 Ft

Product Description

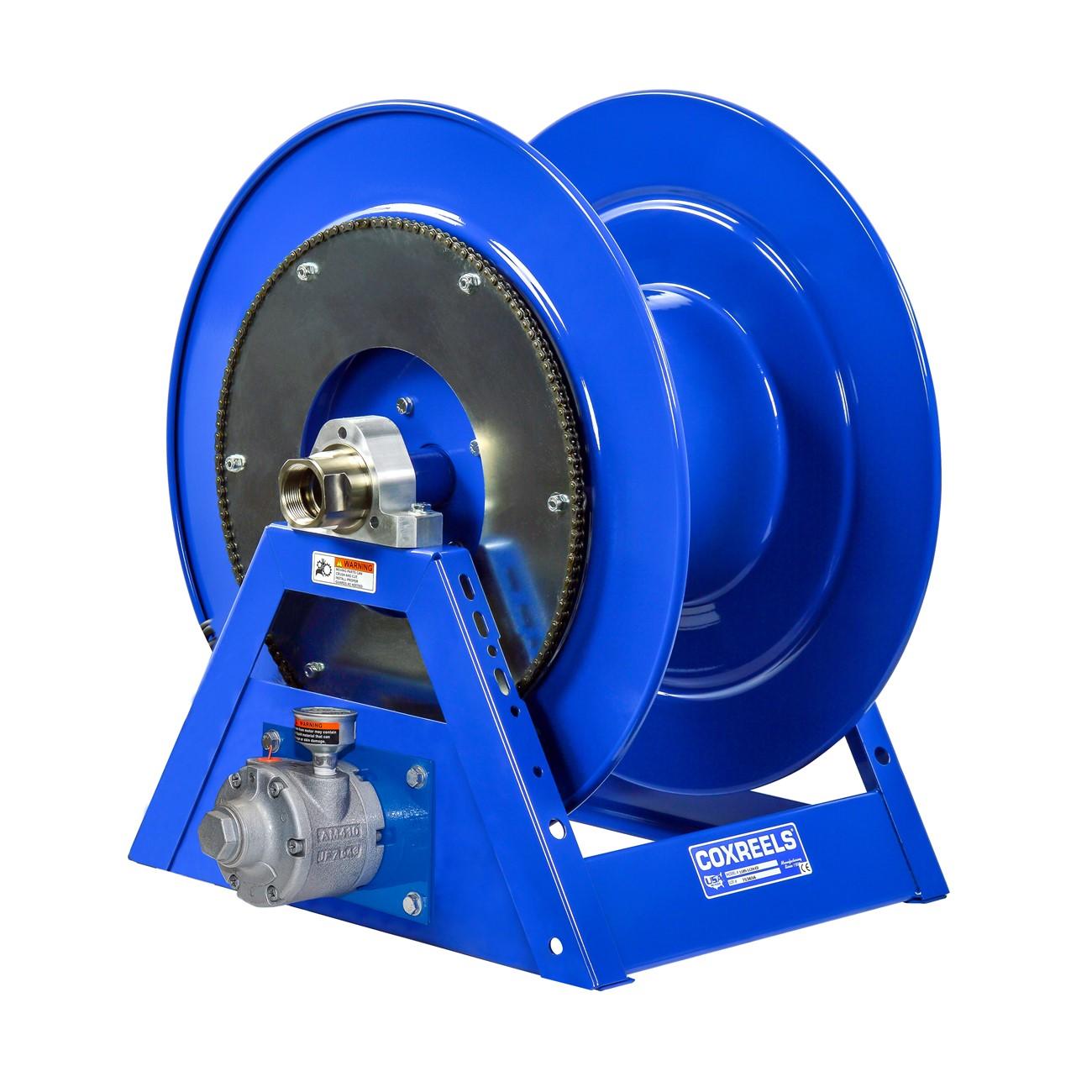

The COXREELS 1185-2028-A is a heavy-duty hose reel from the 1185 Series, available in hand crank and motor driven configurations. It is built to handle long lengths of large-diameter hose for high-volume fluid delivery in demanding environments. The reel features a 1.5 inch inner diameter and 2.0625 inch outer diameter hose path, accommodating up to 125 feet of hose. An all-welded steel A-frame base provides the structural rigidity needed to support the extra weight load, making this unit suitable for both stationary and mobile applications. Licensed HVAC technicians, plumbers, and industrial service crews are the primary installers and operators.

The 1185-2028-A is designed for applications requiring high-volume hose deployment across extended lengths. Its open drum and low-profile outlet riser promote a flat, non-crimping hose wrap, which is critical when running large-diameter hose under pressure. The unit is well suited to mobile service rigs, fleet maintenance operations, industrial facilities, and construction sites where frequent hose deployment and retrieval are part of daily workflow. The motor-driven option supports continuous or high-cycle use where hand cranking is impractical.

Key Features

• Low-profile outlet riser and open drum slot design delivers a flat, non-crimping hose wrap for hose protection and consistent flow
• One-piece CNC robotically welded 0.25 inch steel A-frame base provides superior structural integrity without bolted joints
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated horizontal surface mount bearings for smooth, low-effort rotation
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Compatible with aluminium body air 4-vane motor for motor-driven operation

Compatibility

Designed as an OEM-style replacement or direct fit within the COXREELS 1185 Series platform for large-diameter, high-volume hose reel applications.

Installation Notes

Installation should be performed by a qualified technician familiar with high-pressure hose and reel systems. Depressurize and drain the hose and supply line completely before mounting or servicing the reel. Secure the A-frame base to a structurally rated surface using the integrated mounting pattern in the steel base. For motor-driven configurations, verify motor supply connections comply with applicable electrical codes before energizing the unit.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 125 feet
• Frame Material: 0.25 inch welded steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Swivel Material: Electroless nickel plated steel
• Bearing Type: Permanently lubricated horizontal surface mount
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 117 pounds
• UPC: 674255836419

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2028-A
