Coxreels 1185-2024 Hose Reel 1.5 Inch Id 100 Ft

Product Description

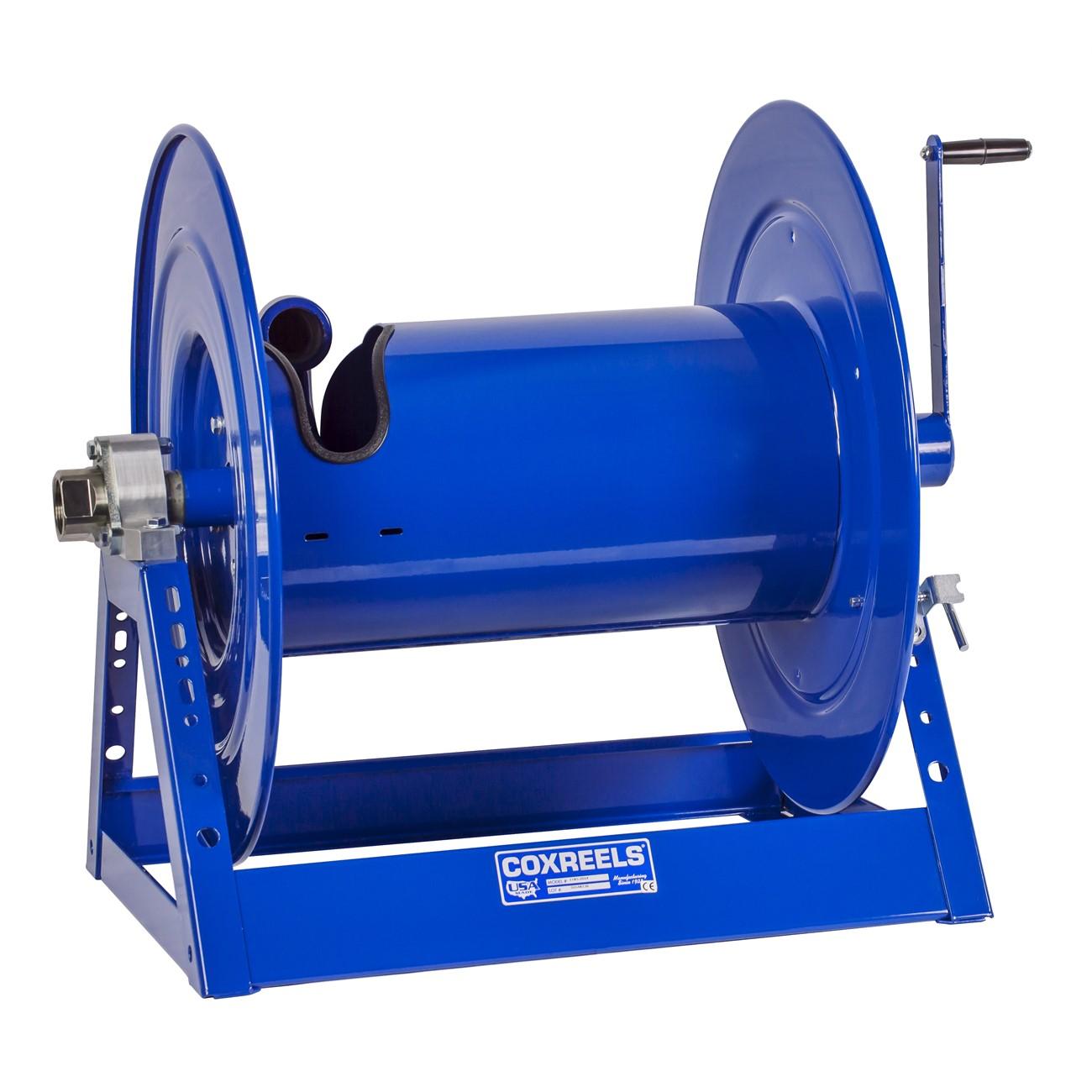

The COXREELS 1185-2024 is a heavy-duty hand crank hose reel built for high-volume fluid delivery applications requiring long runs of large-diameter hose. Part of the 1185 Series, it accommodates hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter in lengths up to 100 feet. The all-welded steel A-frame base and CNC robotically spun discs give this reel the structural rigidity to handle the added weight of large-bore hose without flexing or distortion. An electroless nickel-plated full-flow NPT swivel allows simple seal maintenance without removing the reel from its mount. Licensed HVAC, plumbing, and industrial service technicians install this reel in both stationary and mobile service configurations.

The 1185-2024 is suited for demanding service environments where high-volume fluid transfer is required, including industrial plants, fleet maintenance operations, and mobile service trucks. The open drum slot design and low-profile outlet riser guide hose onto the drum in a flat, non-crimping wrap, preserving hose integrity across repeated wind and unwind cycles. The direct hand crank provides mechanical retraction without requiring powered accessories, making it practical where electrical power is limited or unavailable.

Key Features

• 1.5-inch ID hose capacity with 2.0625-inch OD clearance and 100-foot length rating
• Electroless nickel-plated full-flow NPT in-line swivel for fast hose installation and simple seal service without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• One-piece all-welded 0.25-inch steel A-frame base — no bolted joints — for superior structural integrity
• Low-profile outlet riser and open drum slot deliver a flat, non-crimping hose wrap
• CPC powder coat finish resists chips and rust for long service life in mobile and fixed installations
• Permanently lubricated horizontal surface-mount bearings and long-handled locking pin for secure reel positioning

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series platform for hand crank and motor-driven large-diameter hose reel applications. Consult COXREELS documentation to confirm hose fitment for specific inner diameter, outer diameter, and length combinations.

Installation Notes

Installation is typically performed by qualified industrial or mechanical service technicians. Shut off all fluid supply and relieve line pressure completely before mounting or connecting the reel. The steel base mounting pattern allows direct bolting to a flat surface or service vehicle mount; verify that the mounting substrate is rated for the combined weight of the reel and fully loaded hose. Follow applicable site safety and plumbing codes when making fluid-line connections at the swivel inlet.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 100 feet
• Unit Weight: 94 pounds
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Frame Material: 0.25-inch welded steel
• Swivel Finish: Electroless nickel-plated steel
• Finish: CPC powder coat
• Bearing Type: Permanently lubricated horizontal surface mount
• Retraction Method: Direct hand crank
• UPC: 674255833579

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2024
