Coxreels 1185-1124-E Hose Reel 1.5 Inch Id 50 Ft

Product Description

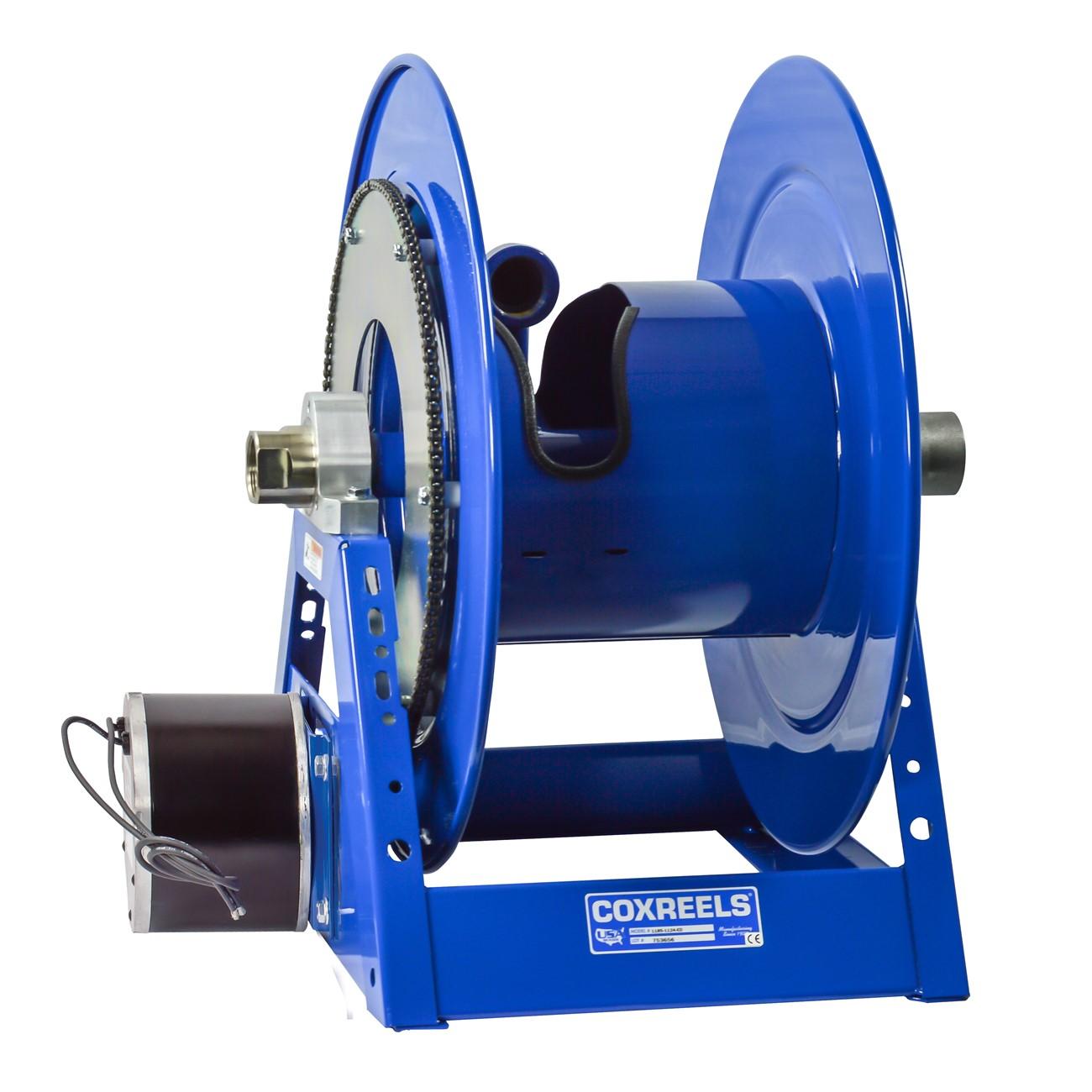

The COXREELS 1185-1124-E is a heavy-duty hose reel from the 1185 Series, engineered for high-volume fluid delivery through long lengths of large-diameter hose. The reel features a 1.5-inch inner diameter hose path, accommodates 50 feet of hose, and is powered by a 12-volt DC, 1/3 HP reversible motor for hands-free operation. An exclusive low-profile outlet riser and open drum design promote a non-crimping, flat hose wrap that protects hose integrity over repeated use. The all-welded steel frame construction and CNC robotically spun discs make this reel well suited to demanding fixed and mobile service environments. Licensed contractors and fleet service technicians typically install and operate this unit.

The 1185-1124-E is built for applications that require moving large volumes of liquid through substantial hose lengths, including industrial wash-down, fluid transfer, and mobile service truck installations. The open drum design allows full hose extension without binding, and the sturdy welded A-frame base handles the additional load of large-diameter hose without flex. The mounting pattern is integrated into the steel base, simplifying installation and removal in mobile or fixed-mount configurations.

Key Features

• 12-volt DC, 1/3 HP reversible motor for powered hose retrieval
• Exclusive low-profile outlet riser and open drum slot for non-crimping, flat hose wrap
• One-piece CNC robotically welded 1/4-inch steel A-frame base for superior structural rigidity
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CPC powder coat finish provides chip resistance and rust inhibition for extended service life
• Permanently lubricated horizontal surface-mount bearings for smooth rotation

Compatibility

Designed as an OEM-style replacement or direct application fit within the COXREELS 1185 Series for large-diameter, high-volume hose reel installations requiring motor-driven operation.

Installation Notes

Installation is typically performed by qualified maintenance technicians or contractors familiar with hose reel mounting and 12-volt DC electrical connections. Disconnect all power to the vehicle or panel before wiring the motor circuit, and follow applicable electrical codes for low-voltage DC installations. Secure the A-frame base to a flat, structurally sound mounting surface using the integrated mounting pattern before connecting hose or power. Verify hose end connections are fully tightened at the swivel inlet before pressurizing the system.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 50 feet
• Motor: 12-volt DC, 1/3 HP reversible
• Frame Material: 1/4-inch welded steel
• Finish: CPC powder coat, chip and rust resistant
• Swivel: Electroless nickel-plated steel full-flow NPT in-line swivel
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 89 pounds
• UPC: 674255833678

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-1124-E
