Coxreels 1175-6-135-E Motorized Hose Reel 1 in 135 Ft

Product Description

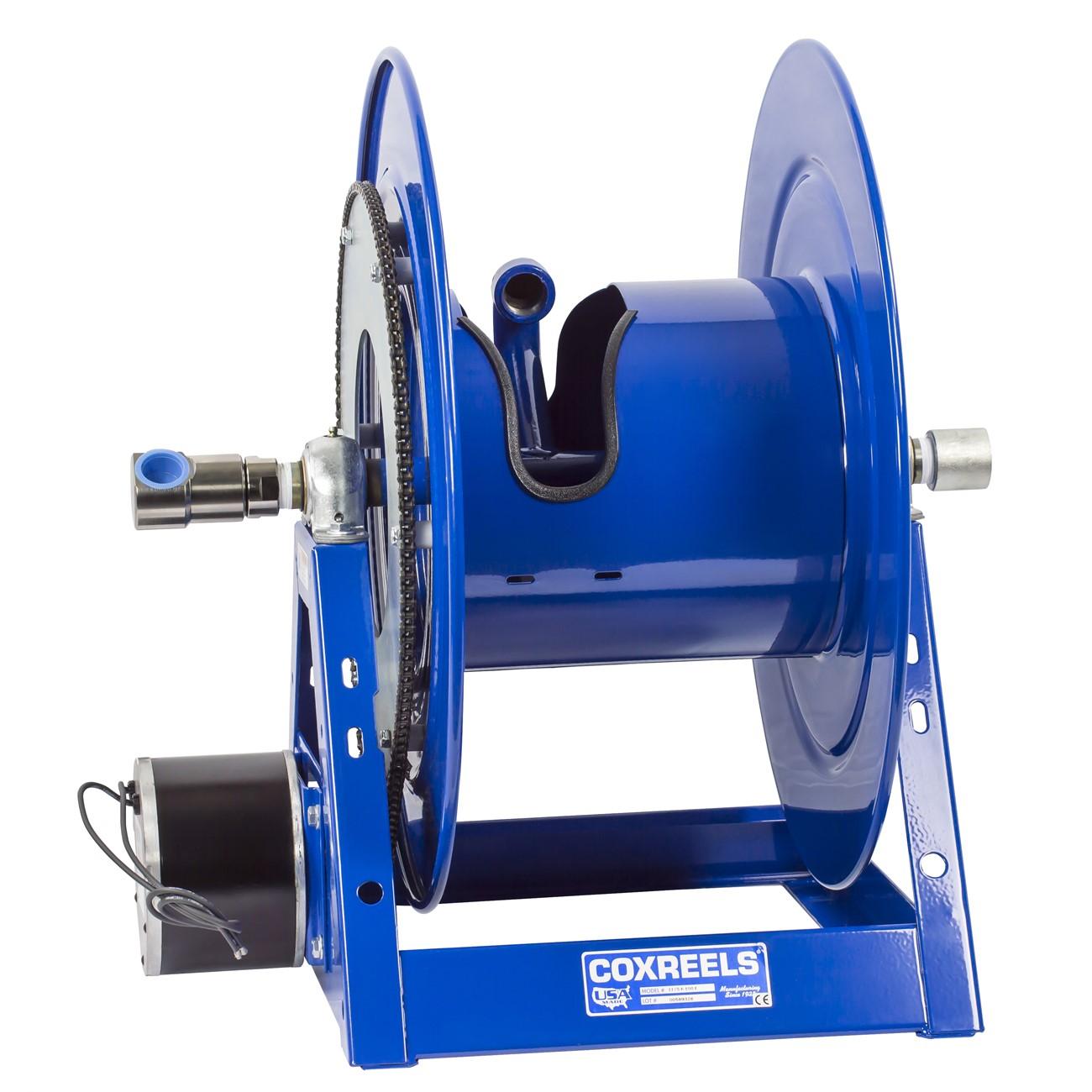

The COXREELS 1175-6-135-E is a heavy-duty motorized hose reel from the 1175 Series, engineered for high-capacity applications requiring a 1-inch ID hose up to 135 feet in length. It is powered by a 12-volt DC, 1/3 HP reversible motor and built on a one-piece all-welded 12-gauge steel A-frame base for rigid, dependable structure. CNC robotically spun and ribbed discs with rolled edges protect the hose and the operator throughout daily use. The low-profile outlet riser and open drum slot design ensure smooth, flat hose wraps without crimping. Licensed tradespeople in industrial, commercial, and fleet service environments are the primary installers of this reel.

The 1175-6-135-E is suited for demanding fluid transfer tasks in automotive shops, fleet maintenance facilities, manufacturing plants, and similar commercial or industrial settings where large-diameter hose and extended hose runs are routine. The motorized drive simplifies retraction of heavy hose loads, reducing operator fatigue. The nickel-plated steel 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mounting surface, making service straightforward in tight spaces.

Key Features

• 12-volt DC, 1/3 HP reversible motor for powered hose retraction
• One-piece CNC robotically welded 12-gauge steel A-frame base — no bolted joints
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Nickel-plated steel 90-degree full-flow NPT swivel — serviceable without dismounting the reel
• Low-profile outlet riser and open drum slot for non-crimping, flat hose wraps
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation
• CPC chip-resistant, rust-inhibiting powder coat finish for long service life

Compatibility

Designed as an OEM-style replacement or direct-fit motorized hose reel for commercial and industrial fluid transfer systems requiring a 1-inch ID hose path and up to 135 feet of hose capacity.

Installation Notes

Installation is typically performed by qualified mechanical or industrial service technicians familiar with fluid transfer systems. Shut off all fluid supply and relieve line pressure before mounting or servicing the reel. Disconnect and lock out the 12-volt DC power source before performing any electrical connections or motor service. Ensure the mounting surface can support the reel weight and the load of a fully charged hose, and verify that all NPT fittings are sealed and torqued according to the fitting manufacturer's guidelines.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1 7/16 inches
• Hose Capacity: 135 ft
• Motor: 12V DC, 1/3 HP reversible
• Frame Material: 12-gauge steel, all-welded A-frame
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 33 inches
• Width: 20 inches
• Height: 23 inches
• Weight: 83 pounds
• UPC: 674255838871

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-135-E
