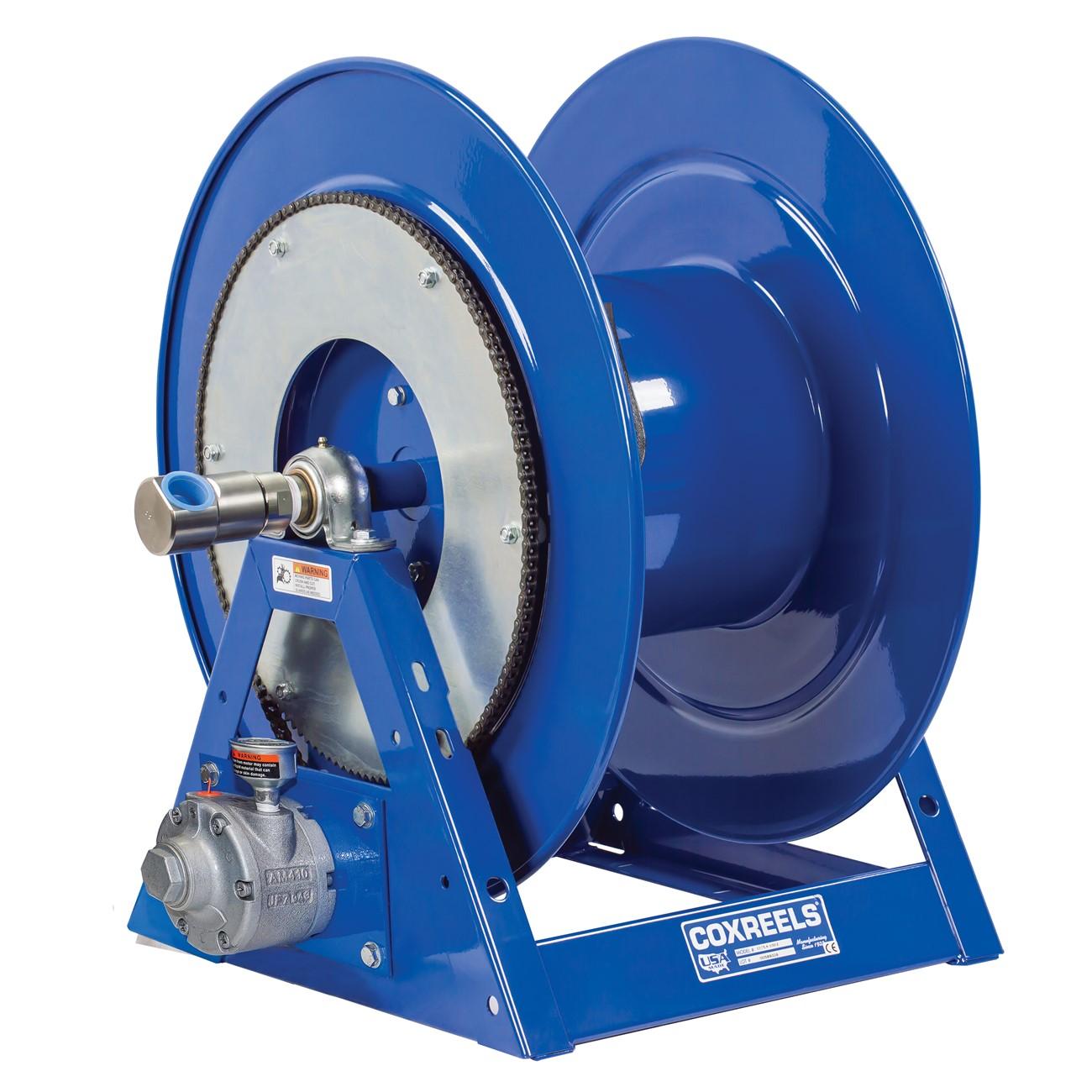

Coxreels 1175-6-100-A Hose Reel 1 Inch Id 100 Ft

Product Description

The COXREELS 1175-6-100-A is a heavy-duty hose reel from the 1175 Series, designed for demanding industrial and trade applications requiring larger hose capacities and larger hose diameters. Built on a one-piece all-welded steel A-frame base, this reel accommodates a 1 inch inside diameter hose up to 100 feet in length and accepts an outside diameter of 1 7/16 inches. It is available in hand crank and motorized configurations. The construction centers on CNC robotically spun and ribbed discs, a low-profile outlet riser with an open drum slot for flat, even hose wraps, and permanently lubricated pillow block bearings for smooth, consistent rotation. Plumbers, HVAC technicians, and industrial maintenance crews are the primary installers of this reel.

The 1175-6-100-A suits fixed or mobile installations in commercial and industrial environments where larger hose diameters and longer hose runs are standard. The open drum slot design eliminates hose crimping during retrieval, making it appropriate for fluid transfer, air supply, and similar continuous-use applications. The low-profile outlet riser keeps the hose path smooth at the drum entry point, reducing wear on the hose jacket over extended service cycles. The reel ships as a single unit and is suited for wall, floor, or ceiling mounting using the integrated base mounting pattern.

Key Features

• One-piece all-CNC robotically welded 12-gauge steel A-frame base — not bolted — for superior structural integrity
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
• Nickel-plated steel 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish provides chip resistance and rust inhibition for long-term durability
• Available in hand crank and motorized configurations with an aluminum-body 4-vane air motor option

Compatibility

Designed to accept hose with a 1 inch inside diameter and 1 7/16 inch outside diameter, up to 100 feet in length. The 1175 Series shares design principles with the 1125 Series and is built on a larger chassis to support greater hose capacities and diameters.

Installation Notes

Installation is typically performed by qualified maintenance technicians or tradespeople familiar with fluid or air distribution systems. Shut off and depressurize the supply line fully before connecting or disconnecting the swivel fitting. Secure the reel to a structurally adequate surface using the mounting pattern built into the steel base, following applicable facility and building codes. Do not exceed the rated hose capacity or hose diameter specifications for this reel model.

Technical Specifications

• Hose Inside Diameter: 1 inch
• Hose Outside Diameter: 1 7/16 inches
• Hose Length Capacity: 100 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Length: 29.5 inches
• Width: 25 inches
• Height: 26.5 inches
• Weight: 78 pounds
• UPC: 674255826489

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1175-6-100-A
