Coxreels 1125P-4-12-E Pure Flow Hose Reel 1/2 Inch Id

Product Description

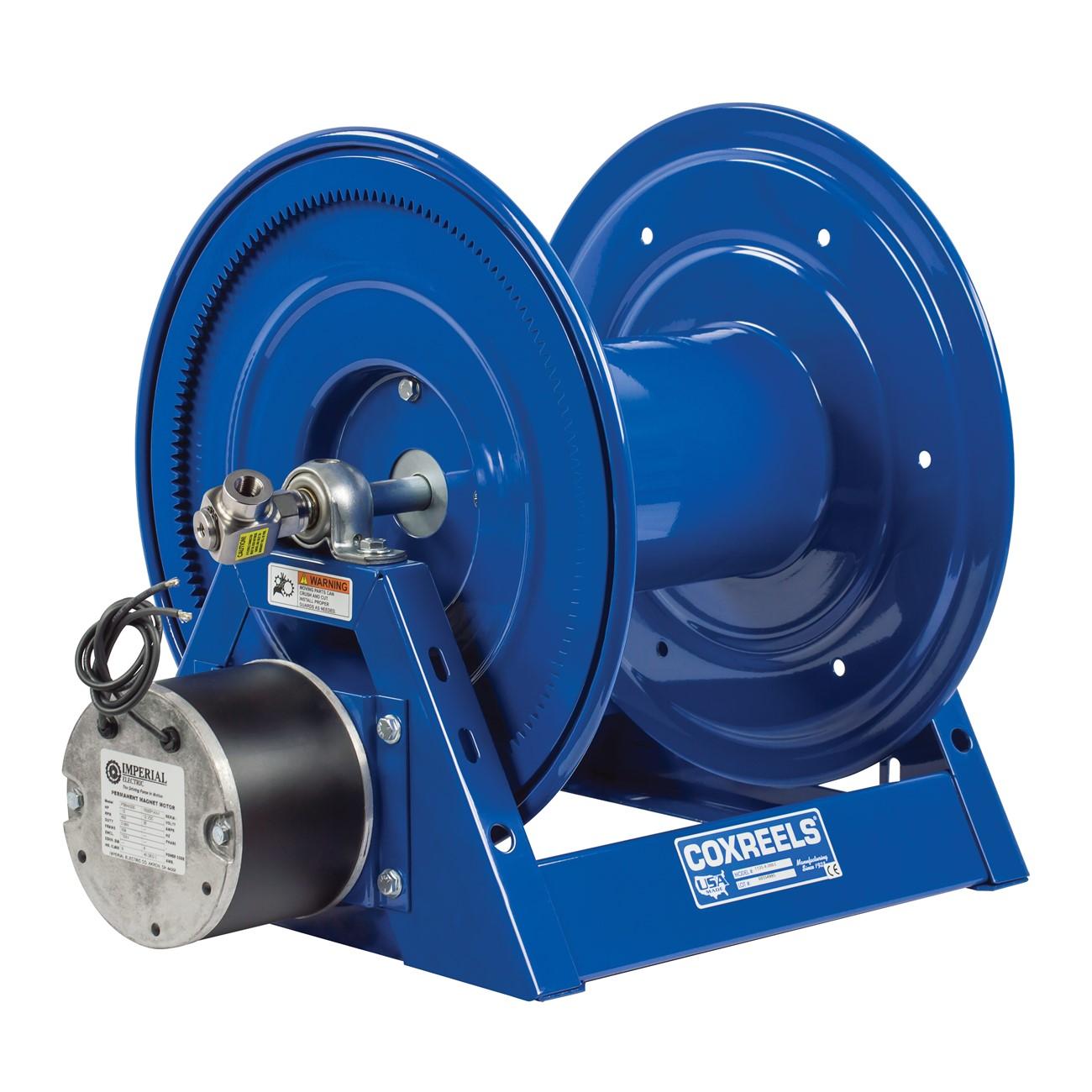

The COXREELS 1125P-4-12-E is a motorized Pure Flow series hose reel built for the safe, uncontaminated transfer of breathing air, potable water, and other clean fluids. It features a full stainless steel air and fluid path, a stainless steel swivel inlet with non-toxic food-grade grease, and a 12V DC reversible motor rated at 1/3 HP. The reel is constructed around a one-piece CNC robotically welded 12-gauge steel A-frame base with CNC spun and ribbed drum discs. It is installed by licensed plumbing, mechanical, or industrial service professionals in applications where fluid purity and reliable hose management are critical.

This hose reel is suited for residential and commercial installations requiring sanitary fluid handling. Typical applications include low- and high-pressure respiratory air hose systems, potable drinking water distribution, and any service environment demanding non-contaminated fluid transfer. The exclusive low-profile outlet riser and open drum slot design promote a flat, non-crimping hose wrap, extending hose service life. The hose inlet is 1/2 inch ID with a 7/8 inch OD, and the reel accepts standard NPT swivel connections.

Key Features

• Full stainless steel air and fluid path with stainless steel 90-degree full-flow NPT swivel inlet and non-toxic food-grade grease
• 12V DC reversible electric motor rated at 1/3 HP for powered retraction
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and removal
• Low-profile outlet riser and open drum slot design for non-crimping, flat hose wrap
• CPC powder coat finish rated for chip resistance and rust inhibition; adjustable tension brake prevents free-wheeling

Compatibility

Designed for use in the COXREELS 1125 Pure Flow series as an OEM-configured motorized hose reel for breathing air, potable water, and clean-fluid transfer applications requiring stainless steel wetted components.

Installation Notes

Installation should be performed by a qualified mechanical or plumbing technician familiar with fluid distribution and low-voltage electrical systems. Shut off the fluid supply line and disconnect the 12V DC power source before mounting or servicing the reel. Secure the reel to a stable surface using the integrated base mounting pattern in accordance with applicable local mechanical codes. Verify all NPT connections are properly sealed and that the electrical supply circuit is correctly rated for the motor before restoring power.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Stainless steel
• Retraction Type: Motorized (reversible)
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 52 pounds
• UPC: 674255829176

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125P-4-12-E
