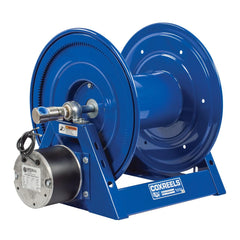

Coxreels 1125-6-100-E Motorized Hose Reel 1 in 100 Ft

Product Description

The COXREELS 1125-6-100-E is a heavy-duty motorized hose reel from the 1125 Series, designed for demanding industrial and commercial applications. It accommodates hose with a 1 inch inner diameter and a 1 7/16 inch outer diameter, with a 100-foot hose capacity. The reel is powered by a 12V DC, 1/3 HP reversible motor and features an all-welded steel A-frame base for structural rigidity. Licensed HVAC technicians, plumbers, industrial maintenance crews, and fluid-handling professionals install this unit wherever a durable, high-cycle hose management solution is required.

The 1125-6-100-E is suited for fixed and mobile service environments including shop floors, service trucks, and plant maintenance stations. Its low-profile outlet riser and open drum slot design promote a flat, non-crimping hose wrap, which extends hose service life in continuous-use settings. The electroless nickel-plated 90-degree full-flow NPT swivel inlet supports consistent flow without restricting hose movement during retrieval.

Key Features

• 12V DC, 1/3 HP reversible motor for powered hose retrieval
• One-piece all CNC robotically welded 12-gauge steel A-frame base for superior structural integrity
• Electroless nickel-plated steel 90-degree full-flow NPT swivel inlet
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser with open drum slot for non-crimping, flat hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth, trouble-free rotation
• CPC powder coat finish for chip resistance and rust inhibition

Compatibility

Designed to accept hose with a 1 inch inner diameter and 1 7/16 inch outer diameter up to 100 feet in length; verify NPT swivel inlet sizing and hose end fittings prior to installation.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with hose reel mounting and low-voltage DC electrical connections. Disconnect all power sources before wiring the 12V DC motor circuit and confirm the supply circuit is correctly fused per applicable electrical codes. Secure the reel to a structurally sound surface using the mounting pattern located in the steel base. Do not exceed the rated hose capacity or operate the motor with hose fully retracted against the drum stop without confirming the auto-stop mechanism is functional.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1 7/16 inches
• Hose Capacity: 100 feet
• Motor: 12V DC, 1/3 HP reversible
• Frame Material: 12-gauge welded steel
• Swivel Inlet: Electroless nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 41 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 82 pounds
• UPC: 674255824966

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1125-6-100-E
